Name: 750V 200A GBT EV Charger UL94 grade with PT1000 thermistor
Brand: Chengdu Honors Technology Co.,Ltd
SKU: ANS-GB-200A
Price: 10,001.20 USD
Availability: InStock

Brand Name:	ANS
Model Number:	ANS-GB-200A
MOQ:	1pc
Price:	USD
Packaging Details:	standard export package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

GB/T EV Charging Cables

Amps:

200A

Voltage:

750V

Cables Size:

70mm2

Color:

Green，blue ，orange ，grey

Cable Length:

5M Cable Length

Logo:

Support Customzation

Supply Ability:

500pcs a week

Highlight:

UL94 Grade GBT EV Charger

750V 200A GBT EV Charger

PT1000 thermistor GBT EV Charger

Product Description

Chinese Standard 200A 750V DC Fast Charging plug EV Connectors GB/T EV Charging Cables

Features

Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T20234.2-2015
Have one or two PTC ( PT1000 ) thermistor ( can match with NTC or Temperature control switch )
The head of pins using safety insulation design to prevent direct contact with the hand
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Reliable material,flame-etardant, pressure proof .wear-resisting,impact resistance ,high oil proof

Mechanical Life

Mechanical life: no-load plug>10000times
Impact of external force: can afford 1m drop and 2t vehicle run over pressure.

rated current	200A
rated voltage	750V
Insulation resistance	>2000M Ω
Pins temperature rise	< 50K
Withstand voltage	4500V
Contact impedance	0.5m Ω Max
Shell material	thermoplastics,lame retardant grade UL94
Pin	copper alloy,silver-plate and use thermoplastic at the top
Envirommental perommance	-30℃- +50℃
cables size	270mm2+125+24+20.75+8*0.75mm2

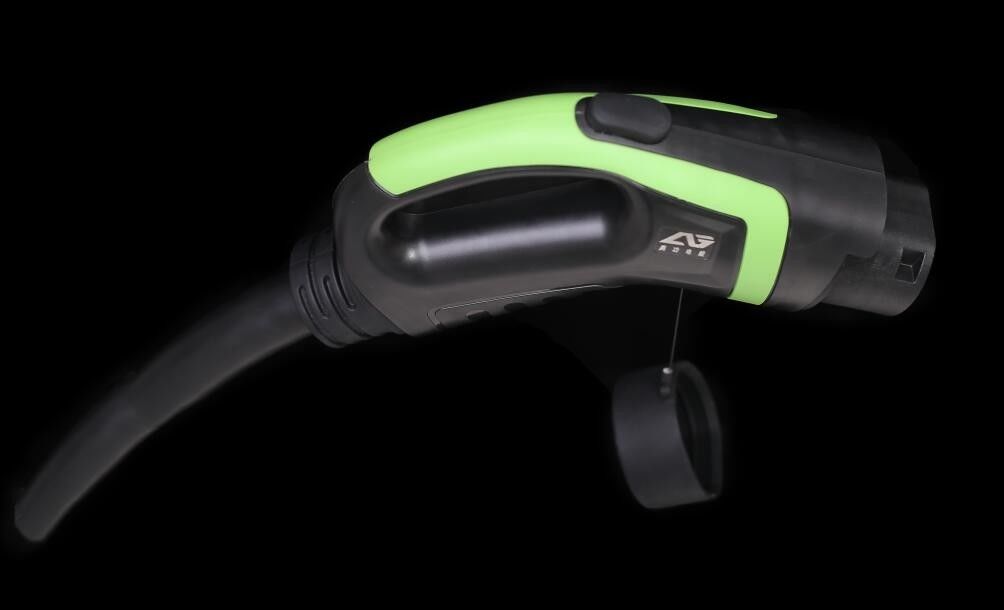

750V 200A GBT EV Charger UL94 grade with PT1000 thermistor 0

Certification: IATF 16949,3C

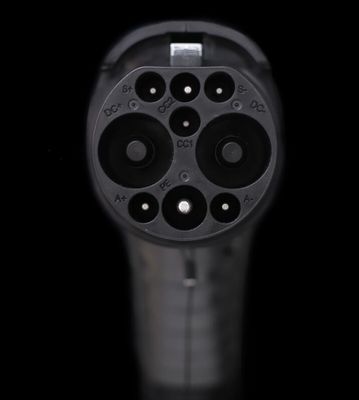

750V 200A GBT EV Charger UL94 grade with PT1000 thermistor 1

750V 200A GBT EV Charger UL94 grade with PT1000 thermistor 2
