250A 750V GBT EV Charger With electromagnetic locking device
250A 750V GBT EV Charger With electromagnetic locking device
250A 750V GBT EV Charger With electromagnetic locking device
250A 750V GBT EV Charger With electromagnetic locking device

250A 750V GBT EV Charger With electromagnetic locking device

Product Details

Place of Origin: China

Brand Name: ANS

Certification: 3C

Model Number: ANS-GB

Payment & Shipping Terms

Minimum Order Quantity: 1pc

Price: USD

Packaging Details: standard export package

Delivery Time: 25days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 500pcs a week

Get Best Price

Product Details

Product Description
Highlight:

750V GBT EV Charger

,

250A 750V GBT EV Charger

,

electromagnetic locking GBT EV Charger

Product Name:
GB/T EV Charging Cables
Amps:
250A
Voltage:
750V
Cables Size:
70mm2
Color:
Green，blue ，orange ，grey
Cable Length:
5M Cable Length
Logo:
Support Customzation
Product Name:
GB/T EV Charging Cables
Amps:
250A
Voltage:
750V
Cables Size:
70mm2
Color:
Green，blue ，orange ，grey
Cable Length:
5M Cable Length
Logo:
Support Customzation

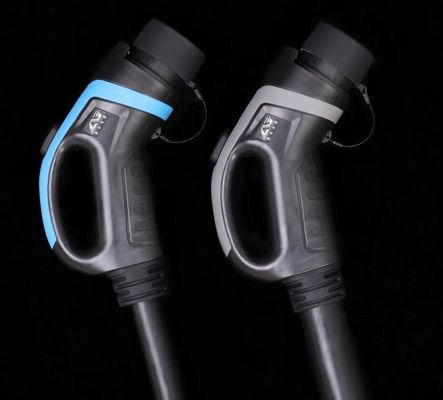

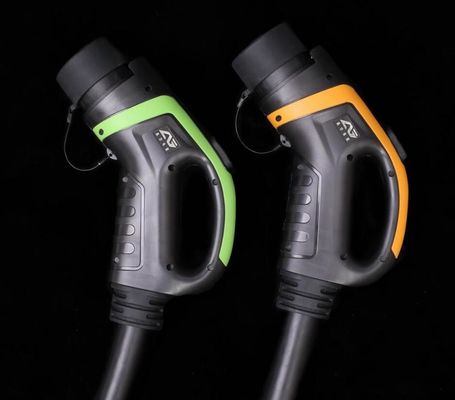

250A 750V GBT EV Charger With electromagnetic locking device

Chinese Standard DC Fast Charger 250A 750V GB/T EV Charging Cables



Features

  •  Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles>GB/T20234.2-2015
  •  Have a electromagnetic locking device, have functions of signal feedback
  •  Have one or two PTC (PT1000) thermistors (can match with NTC or Temperature control switch)
  •  The head of pins using safety insulation design to prevent direct contact with the hand
  •  Excellent protection performance, protection grade achieved IP55 ( working condition)

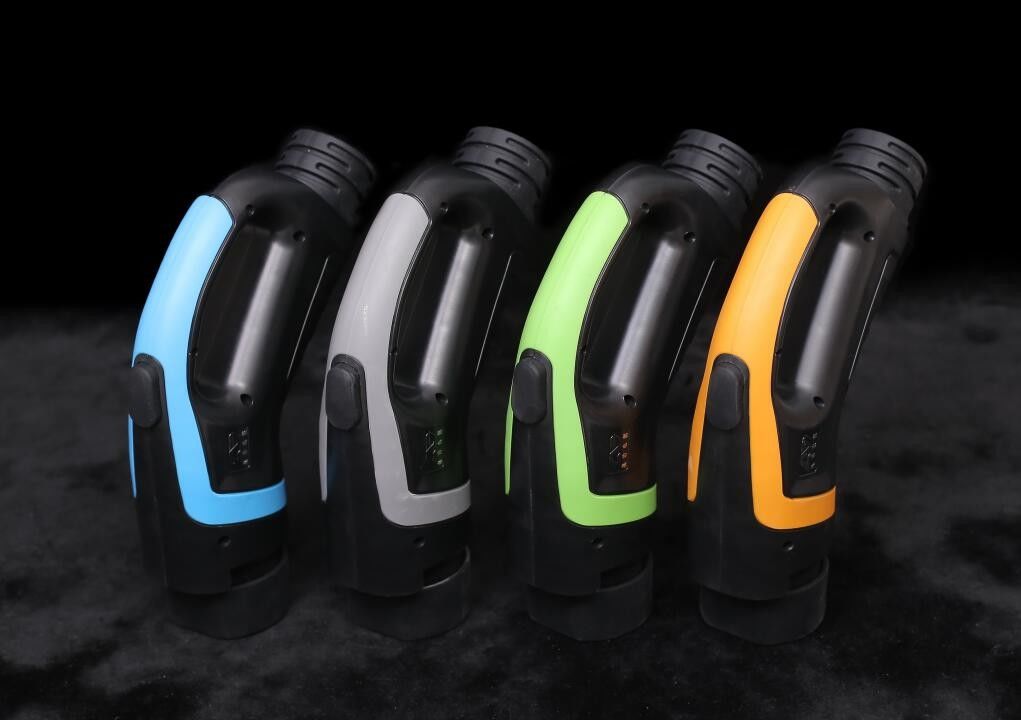

  •  Adopted double color coating technology, personalized custom a variety of colors (Orange, blue, green.grey)
  •  Mechanical life: no-load plug> 10000
  •  Lmpact of external force:can afford 1m drop and 2t vehicle run over pressure





    Electrical performance

  •     The rated current : 80A,125A,200A,250A
  •     The rated voltage : 750V/100ov
  •     lnsulation resistance:> > 2000MQ ( DC1000v)
  •     Pins temperature rise: <50K
  •     Withstand voltage: 4500v ( DC+/DC-/PE)
  •     Contact impedance: 0.5m Q Max

    Applied Materials

  •    Shell material: thermoplastics, flame retardant grade UL94-0
  •    Pin: copper alloy, silver-plate and use thermoplastic at the top



Envirommental perommance -30℃- +50℃
cables size

2*95mm2+1*25+2*4+2*0.75+8*0.75mm2



250A 750V GBT EV Charger With electromagnetic locking device 0

250A 750V GBT EV Charger With electromagnetic locking device 1







Certification: IATF 16949,3C

250A 750V GBT EV Charger With electromagnetic locking device 2

250A 750V GBT EV Charger With electromagnetic locking device 3
