Highlight:
                                                                                                                                                                                                                                                                                80A GBT EV Charger, 750V GBT EV Charger, 750V GBT DC Fast Charging Plug


Product Name:	GB/T EV Charging Cables	Amps:	80A
Voltage:	750V	Cables Size:	20mm2
Color:	Green，blue ，orange ，grey	Cable Length:	5M Cable Length
Logo:	Support Customzation

Product Name:	GB/T EV Charging Cables
Amps:	80A
Voltage:	750V
Cables Size:	20mm2
Color:	Green，blue ，orange ，grey
Cable Length:	5M Cable Length
Logo:	Support Customzation

Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug

Chinese Standard DC Fast Charging plug 80A 750V GB/T EV Charging Cables

Features

Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T20234.2-2015
Have one or two PTC ( PT1000 ) thermistor ( can match with NTC or Temperature control switch )
The head of pins using safety insulation design to prevent direct contact with the hand
Excellent protection performance, protection grade achieved IP55 ( working condition )

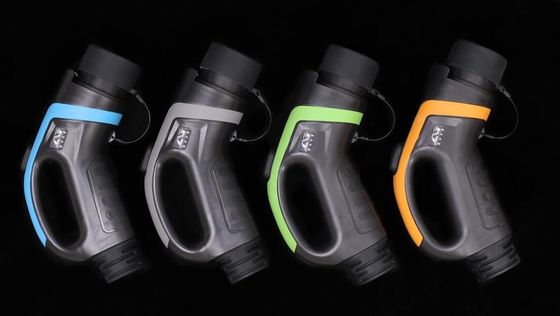

Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Reliable material,flame-etardant, pressure proof .wear-resisting,impact resistance ,high oil proof

Rated Current:	80A 125A 150A 200A
Operating Voltage	DC 1000V
Insulation Resisitance	>1000MΩ(DC500V)
Withstand Voltage	3200V
Contact Pin	Copper alloy, Silver plating
Working temperature	-30°C ~+50°C
Flame Retardant Grade	UL94 V-0
Contact Resistance	0.5mΩ Max

Waterproof	IP65
Certificate	CE,3C Approved

Materials
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber

TPE insulation,TPE Sheath EV Charging Cable

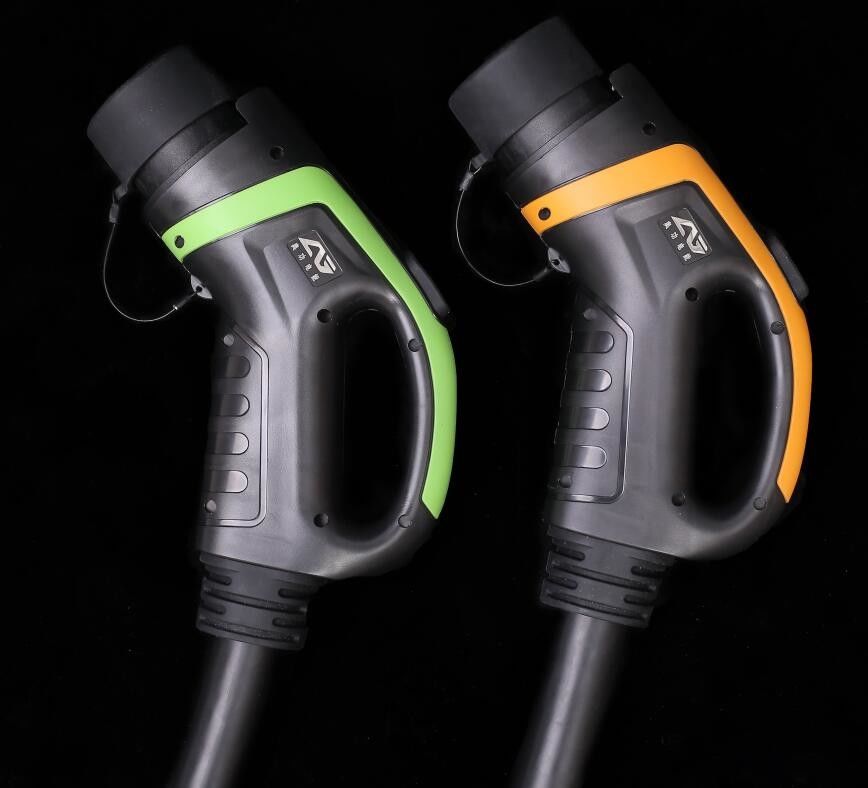

Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug 0

Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug 1

Certification: IATF 16949,3C

Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug 2

Chinese Standard 80A 750V GBT EV Charger DC Fast Charging Plug 3
