Name: 63A 440V 3Phase GBT EV Charger AC Charging Plug With 5M Cable
Brand: Chengdu Honors Technology Co.,Ltd
SKU: ANS-GB-63A
Price: 10,001.20 USD
Availability: InStock

Brand Name:	ANS
Model Number:	ANS-GB-63A
MOQ:	1pc
Price:	USD
Packaging Details:	standard export package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

GB/T EV Charging Cables

Amps:

63A

Voltage:

440V

Cables Size:

16mm2

Color:

Green，blue ，orange ，grey

Cable Length:

5M Cable Length

Logo:

Support Customzation

Supply Ability:

500pcs a week

Highlight:

440V GBT EV Charger

3Phase GBT EV Charger

440V 3Phase GBT AC Charging Plug

Product Description

Chinese Standard AC Charging Plug 63A 440V 3Phase GB/T EV Charging Cables

Electrical Performance

The rated current : 32A,63A
Operating voltage: 440V
lnsulation resistance:> 1000M (DC500v)
Pins temperature rise: <50K
Withstand voltage: 2500V
Contact impedance: 0.5m Q Max

Features

Conform to the provisions and requirements of <Connection set for conductive charging of electric vehicles> GB/T20234.2-2015
Have one or two PTC ( PT1000 ) thermistor ( can match with NTC or Temperature control switch )
The head of pins using safety insulation design to prevent direct contact with the hand
Excellent protection performance, protection grade achieved IP55 ( working condition )

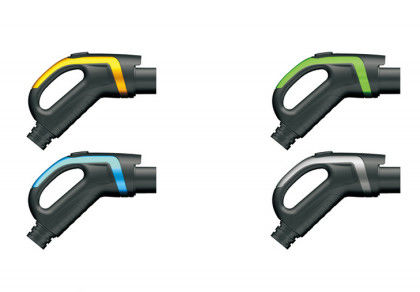

Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )
Reliable material,flame-etardant, pressure proof. wear-resisting,impact resistance ,high oil proof

Shell material	thermoplastics,lame retardant grade UL94
Pin	copper alloy,silver-plate and use thermoplastic at the top
Envirommental perommance	-30℃- +50℃
cables size	516mm2+20.75mm2

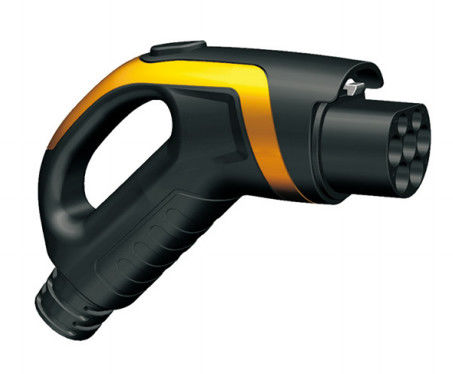

63A 440V 3Phase GBT EV Charger AC Charging Plug With 5M Cable 0

63A 440V 3Phase GBT EV Charger AC Charging Plug With 5M Cable 1

Certification: IATF 16949,3C

63A 440V 3Phase GBT EV Charger AC Charging Plug With 5M Cable 2
