Name: 16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection
Brand: Chengdu Honors Technology Co.,Ltd
SKU: ANS-GB-16A
Price: 10,001.20 USD
Availability: InStock

Brand Name:	ANS
Model Number:	ANS-GB-16A
MOQ:	1pc
Price:	USD
Packaging Details:	standard export package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

GB/T Standard EV Portable Charger

Amps:

16A

Voltage:

250V

Cables Size:

2.5mm2

Color:

Green，blue ，orange ，grey

Cable Length:

5M Cable Length Or Based On Requirement

Logo:

Support Customzation

Supply Ability:

500pcs a week

Highlight:

16A 250V GBT EV Charger

3.6kW GBT EV Charger

3.6kW GBT Standard EV Portable Charger

Product Description

GB/T Standard EV Portable Charger 3.6kW 16A 250V EV Chargers for GB/T Cars

Features

Conform to the provisions and requirements of GB/T20234.2-2015,GB/T 18487.1-2015
Using riveting pressure process with none screw ,have a beautiful appearance.Hand-held design conform tothe ergonomic principle , plug conveniently
The panel of lC-CPD used screen to display the current and voltage, the charging state and the temperatureof the circuit board in real time.
Excellent protection performance, protection grade of lC-CPD achieved lP66 and achieved lP55 of plug( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green.,grey )
Mechanical life : no-load plug>10000
Lmpact of external force : can afford 1m drop and 2t vehicle run over pressure

rated current	13A 16A
rated voltage	220V
Insulation resistance	>1000M Ω DC500V
Pins temperature rise	< 50K
Withstand voltage	2500V
Contact impedance	0.5m Ω Max
Shell material	thermoplastics,lame retardant grade UL94
Duty cycle	21.67%
Envirommental perommance	-30℃- +50℃
cables size	32.5+20.5mm2

Function:

Over-voltage,under-voltage protection
Over-current protection
earth leakage protection
Ground protection: continuous monitoring grounding protection
Lightning protection
Over-temperature protection: break the circuit when the temperature is over 85 ℃ and continuous 3s

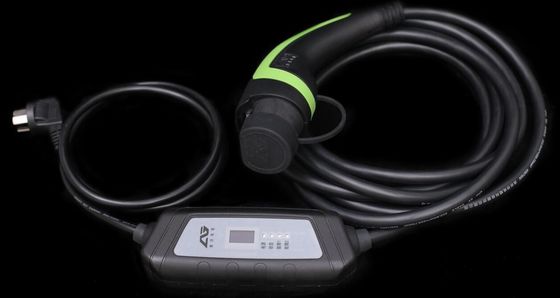

16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection 0

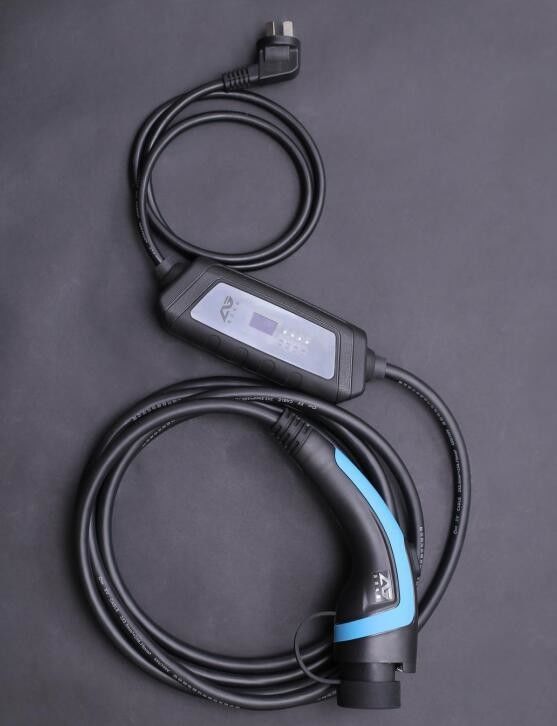

16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection 1

Certification: IATF 16949,3C

16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection 2

16A 250V 3.6kW GBT EV Charger GB/T Standard With Ground Protection 3
