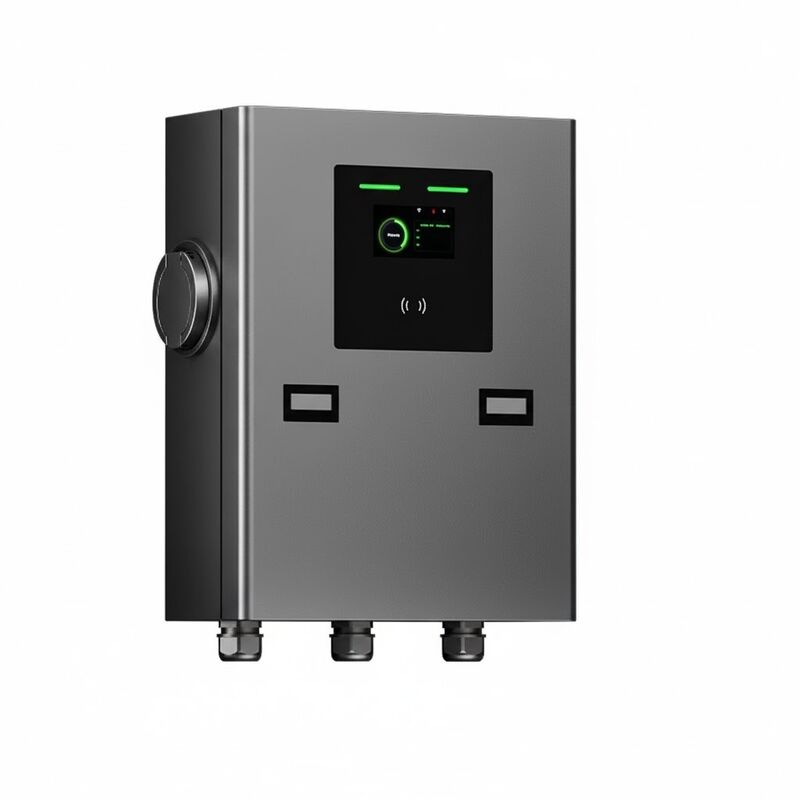

22kW Commercial OCPP Wallbox EV Charging Station with Smart Network Management

Brand Name:	ANS
Model Number:	H Series
MOQ:	1
Price:	Negotiable
Delivery Time:	20-30days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

TUV-Mark / CE / UKCA / EN18031

Document:

User Manual - Hseries.pdf

Product Name:

22kw Commercial Wallbox EV Charger

Charging Power:

22kw

Connectivity:

WiFi, Bluetooth, LAN, 4G (Commercial Optional)

Authentication:

RFID Card Access

Applicaiton:

Airports,School,Residential Communities

Certification:

TUV-Mark, CE, UKCA, EN18031

Packaging Details:

Carton

Supply Ability:

100000PCS/month

Product Description

Product Advantage

Designed specifically for commercial EV charging networks.
Supports OCPP 1.6 JSON and optional OCPP 2.0.1 for backend integration.
Dynamic load balancing optimizes power distribution among multiple chargers.
Multiple communication methods including WiFi, Bluetooth, LAN and optional 4G.
RFID user authentication improves charging security and operation efficiency.
4.3-inch LCD display with dynamic LED charging indicator.
Fast installation design supports large-scale deployment.
Intelligent temperature control and comprehensive protection ensure stable operation.
Durable PC housing with IP54/IP66 protection and IK10 impact resistance.

Product Applicaiton

Scenarios	Description
Residential Communities	Ideal for electric vehicle charging in residential areas, supporting simultaneous charging for multiple vehicles. Ensure charging safety and stability during peak household electricity usage through intelligent load management. Adapt to outdoor or garage installations of various residential styles.
Airports	Suitable for charging electric shuttle buses, ground - service vehicles, and travelers' electric vehicles in airports. The high - reliability design meets the requirements of high - frequency usage, ensuring the green and efficient operation of the airport.
Schools	Specifically designed for school parking lots, providing convenient charging services for faculty, staff, and visitors' electric vehicles. Help campuses achieve the goal of low - carbon travel and create a green and environmentally friendly educational environment.
Highway Rest Areas	Suitable for highway rest areas, providing quick energy replenishment for electric vehicles on long trips, shortening waiting time, and improving the convenience and comfort of long - distance travel.
Sports Venues	Applicable to large sports venues, providing centralized charging support for a large number of electric vehicles during events or activities. Enhance the service level of the venue and demonstrate the integration of technology and environmental protection.

Product Specificaiton

General	22KW (Socket)	22KW (Cable)	7.4KW (Socket)	7.4KW (Cable)
Dimensions (mm)	530350250	530350250	530350250	530350250
Weight	4.6KG	7.7KG	4.2KG	6.7KG
Operating Temperature	-30℃ ~ 55℃	-30℃ ~ 55℃	-30℃ ~ 55℃	-30℃ ~ 55℃
Storage Temperature	-40℃ ~ 85℃	-40℃ ~ 85℃	-40℃ ~ 85℃	-40℃ ~ 85℃
Material	PC	PC	PC	PC
Certifications	TUV-Mark / CE / UKCA / EN18031	TUV-Mark / CE / UKCA / EN18031	TUV-Mark / CE / UKCA / EN18031	TUV-Mark / CE / UKCA / EN18031
Charging
Charging Power	Up to 22KW	Up to 22KW	Up to 7.4KW	Up to 7.4KW
Charging Current	6A / 8A / 16A / 24A / 32A	6A / 8A / 16A / 24A / 32A	6A / 8A / 16A / 24A / 32A	6A / 8A / 16A / 24A / 32A
Voltage	AC 230V/400V 50HZ/60HZ	AC 230V/400V 50HZ/60HZ	AC 230V/400V 50HZ/60HZ	AC 230V/400V 50HZ/60HZ
Charging Socket	Type 2	Type 2	Type 2	Type 2
Charging Cable	Type 2	Type 2	Type 2	Type 2
Ammeter	MID/PTB	MID/PTB	MID/PTB	MID/PTB
Energy Metering	(±2%) accuracy on readings	(±2%) accuracy on readings	(±2%) accuracy on readings	(±2%) accuracy on readings
Interface
User App & Configuration	SmartLife / EV Wolfbox	SmartLife / EV Wolfbox	SmartLife / EV Wolfbox	SmartLife / EV Wolfbox
Charging Status	Dynamic LED Ring	Dynamic LED Ring	Dynamic LED Ring	Dynamic LED Ring
Display	4.3" LCD	4.3" LCD	4.3" LCD	4.3" LCD
Authentication	RFID	RFID	RFID	RFID
Network Connection	WiFi & Bluetooth, LAN & 4G (Commercial Optional)	WiFi & Bluetooth, LAN & 4G (Commercial Optional)	WiFi & Bluetooth, LAN & 4G (Commercial Optional)	WiFi & Bluetooth, LAN & 4G (Commercial Optional)
OCPP	OCPP 1.6 JSON / OCPP 2.0.1 (Commercial Optional)	OCPP 1.6 JSON / OCPP 2.0.1 (Commercial Optional)	OCPP 1.6 JSON / OCPP 2.0.1 (Commercial Optional)	OCPP 1.6 JSON / OCPP 2.0.1 (Commercial Optional)
Safety and Protection
RCD	Type B	Type B	Type B	Type B
Fire Classification	UL94-V0	UL94-V0	UL94-V0	UL94-V0
IP Rating	IP54	IP66	IP54	IP66
