32A 3phase AC EV Charging Station With OCPP WIFi Load Balancing

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV/CE/UL/RoHS/REACH

Model Number: ANS-T2AC22kW

Payment & Shipping Terms

Minimum Order Quantity: 5pcs

Price: USD300-500

Packaging Details: Carton box. Carton size: 43*43*21cm

Delivery Time: 10-30days

Payment Terms: T/T, Western Union,Paypal, L/C

Supply Ability: 600pcs/day

Get Best Price
Highlight:

OCPP AC EV Charging Station

,

3phase AC EV Charging Station

,

32A EV Plug In Stations

Product Name:
22kW Ev Charging Station
Cable Length:
5M Or Customized
Rated Current:
32A
Rated Power:
22kW
Rated Voltage:
480V
Rated Frequency:
50/60Hz
Charging Control:
Plug And Play Or RFID Card
Connector Type:
IEC62196 Type 2
Product Name:
22kW Ev Charging Station
Cable Length:
5M Or Customized
Rated Current:
32A
Rated Power:
22kW
Rated Voltage:
480V
Rated Frequency:
50/60Hz
Charging Control:
Plug And Play Or RFID Card
Connector Type:
IEC62196 Type 2
32A 3phase AC EV Charging Station With OCPP WIFi Load Balancing

IEC62196 type 2 32A 3phase 22kW wall mount charger with OCPP/WIF/Load balancing AC ev charging station





Power Specification



AC Power input rating  SAE Standard IEC Standard
AC Level 2 1 phase  3phase
240V 220V +/- 15% 380V +/- 15%
AC Power output rating  3.5kW/16A 3.5kW/16A 11kW/16A
7kW/32A 7kW/32A 22kW/32A
10kW/40A N/A N/A
Rated Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Required Service Panel Breaker(built-in branch breaker) Dedicated dule pole Dedicated dule pole Dedicated 3-pole
20A(16A station) 20A(16A station) 20A(16A station)
40A(32A station) 40A(32A station) 40A(32A station)
50A(40A station) N/A N/A
Power Wiring  3Wire, L1,L2, Ground 3Wire-L1,N,PE 5Wire-L1,L2,L3,N,PE
Connector Type  SAE J1772 IEC62196(Type 2)
Connector Mechanical Life >=10000times



Protection



Protection Ratings IP54 RCD Type B
Over Voltage Protection Yes Under Voltage Protection Yes
Over Load Protection Yes Short Circuit Protection Yes
Earth Leackage Protection Yes Ground Protection Yes
Over-temp Protection Yes Surge Protection Yes





User Interface&Control



Charging control--- Plug&Play or RFID

Indicators---4LED indicators-Power/Connect/Charging/Fault

External Communications---LAN(RJ-45) and Wifi

OCPP Protocal(optional)---1.6 or 2.0.1





Load Balancing details



32A 3phase AC EV Charging Station With OCPP WIFi Load Balancing 0

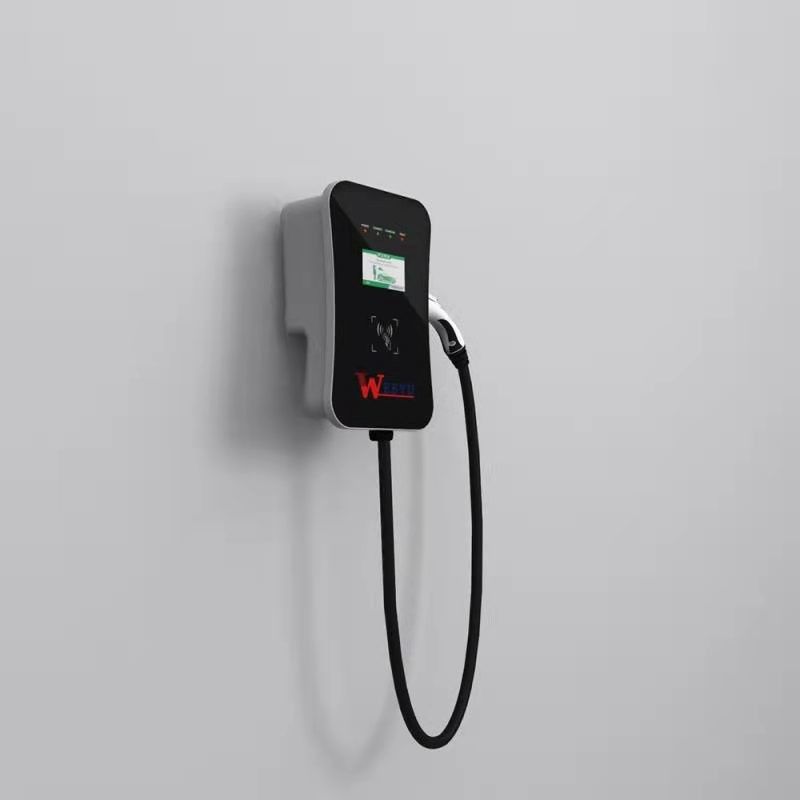

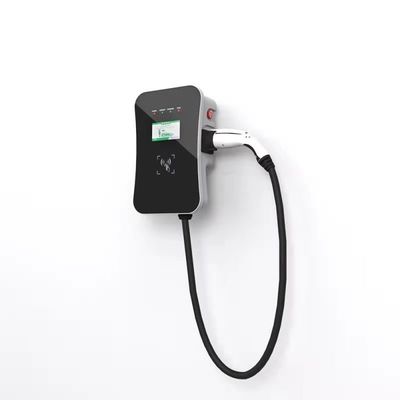

Product pictures

32A 3phase AC EV Charging Station With OCPP WIFi Load Balancing 1
