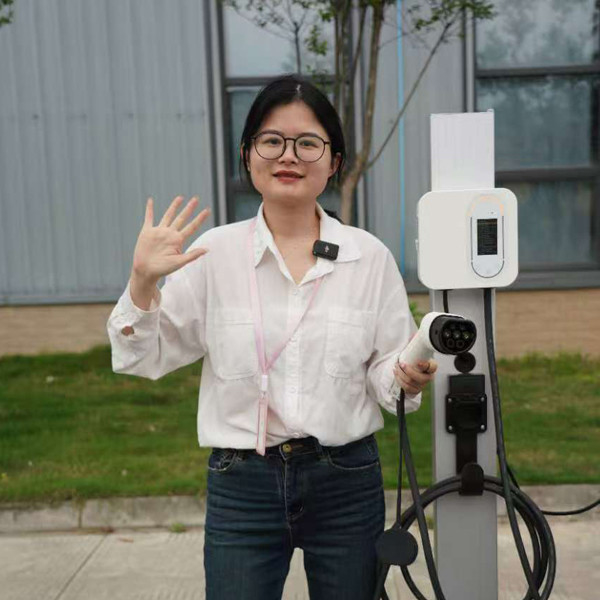

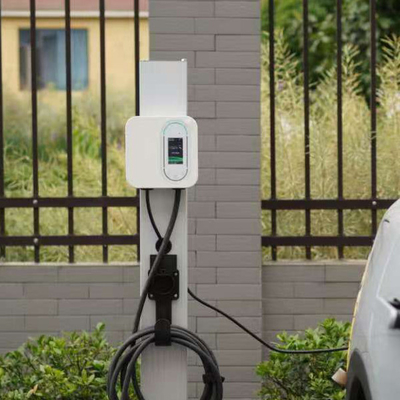

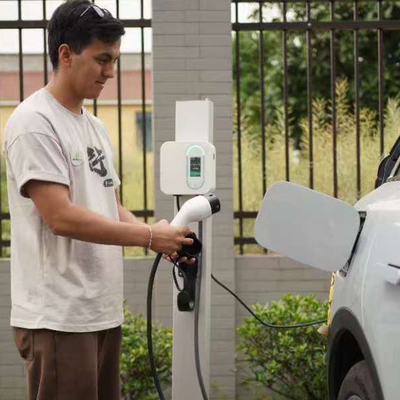

11kw 380V 32A AC EV Charging Station Fast Charging IEC 62196-2 Type2 Connector

Product Details

Place of Origin: China

Brand Name: ANS

Certification: CE

Model Number: ANS-EVSE

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD

Packaging Details: 15.7*15*3.15(in)

Delivery Time: 20-30days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100000PCS/month

Get Best Price
Highlight:

380V AC EV Charging Station

,

32A AC EV Charging Station

,

11kw Fast Charging Station For EV

Brand:
ANS
Product Name:
11kW AC EV Charging Station
Application:
AC Home Charging
Material:
TPU
Rated Current::
32A
Stardard:
IEC62196-3
Protection Level::
IP65
Warranty:
2years
Certifications::
CE, RoHS
Operating Temperature::
-30℃-+60℃
Brand:
ANS
Product Name:
11kW AC EV Charging Station
Application:
AC Home Charging
Material:
TPU
Rated Current::
32A
Stardard:
IEC62196-3
Protection Level::
IP65
Warranty:
2years
Certifications::
CE, RoHS
Operating Temperature::
-30℃-+60℃
11kw 380V 32A AC EV Charging Station Fast Charging IEC 62196-2 Type2 Connector

11kw type2 black 380V 32A wall charger Indoor/Outdoor use AC EV Charging Station







Product Description



Power Specification


AC Power Input Rating
SAE Standard
IEC Standard
AC Level 2
1-Phase
3-Phase
240V
220V ± 15%
380V ± 15%


AC Power Output Rating
3.5kW/16A
3.5kW/16A
11kW/16A
7kW/32A
7kW/32A
22kW/32A
10kW/40A
N/A

Rated Frequency
50/60Hz
50/60Hz

Connector Type
SAE J1772 (Type 1)
IEC 62196-2 (Type 2)
User Interface & Control
Charging Control
Plug and Play, RFID Card or App

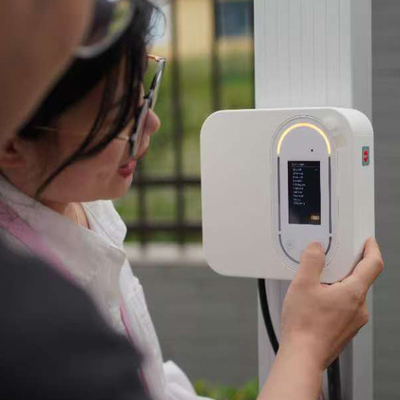

Display Screen
3-inch LCD Screen

 Voice Prompt (Optional)

Voice guide of the charging process in English
Indicators
5 LED indicators-Power/Connect/Charging/Fault/Reservation
External Communication
LAN (RJ-45) and Wi-Fi
OCPP Protocol (Optional)
Home version
Environmental
Storage Temperature
-40 to 75℃ (-40 to 167℉) ambient
Operating Temperature
-30 to 55℃ (-22 to 131℉) ambient
Operating Humidity
Up to 95% non-condensing
Altitude
≤2000m
Protection
Protection Ratings
IP 65
RCD
Type B
Over Voltage Protection
Yes
Under Voltage Protection
Yes
Over Load Protection
Yes
Short Circuit Protection
Yes
Earth Leakage Protection
Yes
Ground Protection
Yes
Over-temp Protection
Yes
Surge Protection
Yes
Wallbox Mechanical
Dimension (H x W x D, mm)
180 x 180 x 70
Weight
1-phase<10kg; 3-phase<12kg
Charging Cable Length
5m or Customize Length
Enclosure Material
Front-Panel: Tempered Glass; Back-cover: Metal Plate
Mounting Pole Mechanical (Optional)
Dimension (H x W x D, mm)
1400 x 200 x 100
Weight
<6kg
Enclosure Material
Metal







Product Detail





Features

✔ Each EV charging station has with emergency stop button

✔ Each wallbox EV charger comes with its own MCB/OCCP
✔ Independently designed, different from other existing models in the market
✔ Easy installation, maintenance, and stable functioning
✔ Solid durable metal box and full-size LCD screen
✔ Customize designs, logos, and colors available even for small quantities and small business
