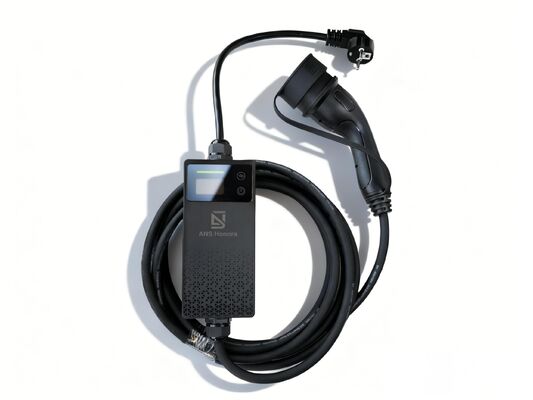

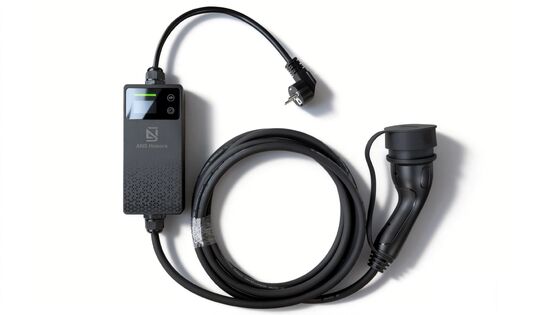

Smart Portable EV Charger with LCD Display, Delay Charging, and IP67 Protection

Brand Name:	ANS
Model Number:	EVX03B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Document:

Product Name:

Smart Portable EV Charger

Key Feature:

Delay Charging

Weiht:

Protection:

Certification:

CE,RoHS

Power:

3.7kw

Supply Ability:

100000PCS/month

Highlight:

LCD Display Portable EV Charger

Delay Charging Smart EV Charger

IP67 Protection Electric Vehicle Charger

Product Description

Product Overview

This smart portable EV charger combines intelligent charging control with robust safety protection, making it a reliable solution for daily EV charging. Built on the EVX03B hardware platform, the charger integrates an IC-CPD module and advanced monitoring functions to ensure stable operation under various power conditions.

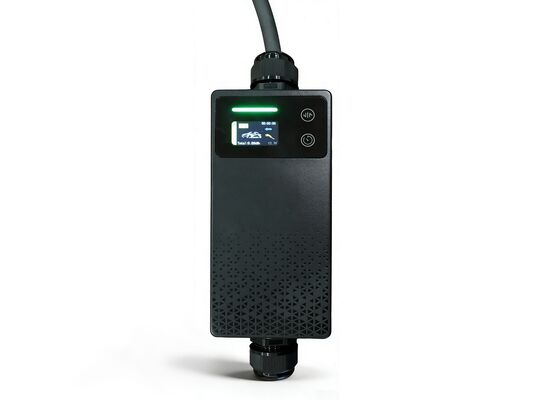

The built-in LCD screen provides comprehensive charging information, including real-time current, voltage, charging power, temperature, total energy consumption, and charging duration. Users can easily adjust the charging current or activate delay charging directly from the touch buttons, offering greater flexibility and convenience.

Designed with a rugged IP67-rated enclosure, the charger is suitable for both indoor and outdoor environments. Its compact size and lightweight construction allow users to carry it in the vehicle as a dependable mobile charging solution.

Key Features

Smart LCD monitoring system
Adjustable charging current
Delay and appointment charging
Low standby power consumption
Compact and portable design

Applications

Residential charging, smart home energy management, portable EV charging.

Charging time, Consumption(kWh)

Charging voltage /current/ power, Total electricity(kWh),Temperature

Current adjustable from 6A to 16Ain steps of 1A

Delay charging setting
The screen and LED can automatically turn off according to the set time

Optional

Appointment forcharging (based on data and time on the APP)

APP remote control (Bluetooth and WlFl)

Chargingmode (APP/Plug and Play)

View charging records on the APP

Product Model: EVX03B – Specifications

Category	Item	Specification
Electrical Parameters	Input / Output Voltage	AC 110V / 230V
	Input Frequency	50 / 60 Hz
	Max. Output Power	1-Phase up to 3.68 kW (230V, 16A)
	Max. Output Current	16A for 1-Phase
	Standard	EN IEC 62752:2024
	Certificate	CE, RoHS
Protection	Over Voltage Protection	Yes
	Under Voltage Protection	Yes
	Over Load Protection	Yes
	Short Circuit Protection	Yes
	Leakage Protection	Yes
	Over-Temp Protection	Yes
Function & Accessory	LED Indicators	Yes
	LCD Screen	1.47-inch
	RCD	Type A (Type B optional)
	Current Adjustment	Yes
	WiFi / Bluetooth	Optional
	Relay Adhesion Detection	Yes
	RFID Manageable	No
Working Environment	Protection Degree	IP67
	Operation Temperature	-30℃ ~ +55℃
	Relative Humidity	≤95% RH
	Operating Elevation Limit	≤2000 m
	Cooling	Natural Air Cooling
	Standby Power Consumption	< 1 W
Mechanical Parameters	Charging Cable	5 m (Standard configuration)
	Control Box	H × W × D = 195 × 91 × 49 mm
	Weight	≤ 3.0 kg
	Colour	Black
	Material	PC (Flame retardant, UV resistant)

How to install

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
