Home > products > Portable EV Charger > Switchable 10A / 16A EV Type 2 Charger EVSE Electric Vehicle Car Charger

Switchable 10A / 16A EV Type 2 Charger EVSE Electric Vehicle Car Charger

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV

Model Number: ANSYH-P-S

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD

Packaging Details: 15.7*15*3.15(in)

Delivery Time: 20-30days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100000PCS/month

Get Best Price
Highlight:

10A EV Type 2 Charger

,

EVSE EV Type 2 Charger

,

2.2kw Electric Vehicle Car Charger

Product Name:
16A Portable EV Charger
Brand:
ANS
Rated Current::
16A
Stardard:
IEC62196-3
Protection Level::
IP67
Warranty:
2years
Certifications::
TUV/CE
Operating Temperature::
-30℃-+50℃
Product Name:
16A Portable EV Charger
Brand:
ANS
Rated Current::
16A
Stardard:
IEC62196-3
Protection Level::
IP67
Warranty:
2years
Certifications::
TUV/CE
Operating Temperature::
-30℃-+50℃
Switchable 10A / 16A EV Type 2 Charger EVSE Electric Vehicle Car Charger

Type 2 Portable EV Charging Box Cable Switchable 10/16A Schuko Plug Electric Vehicle Car Charger EVSE


Product Description


1 Electric parameter
1.1 Rated Frequency
50/60Hz
1.2 Rated current
8/10/13/16/A
1.3 Rated voltage
single-phase, 230V±15%, 50/60Hz
2 Mechnical Parameter
2.1 IP Code
IP67
2.2 Charging Adapter Cable
5 meters cable or custom length
2.3 Dimensions
W × D × H = 230 × 93× 62 mm
2.4 Weight
<5kg
2.5 Input Plug Standard
Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
3 Functional Description
3.1 Charging Control Model
Plug and play
3.2 Display Screen(Optional)
OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
3.3 Indicator Light
4 LED indicators-Power/ Connection/ Charging/ Fault
3.4 RCD type
Type A
3.5 Adjustable output current
Button options: 8A/10A/13A/16A
3.6 Preset function
Preset charging time trough the button
3.7 Safety Protection
surge protection, over temperature, leakage, over/under voltage, over current, ground protection
4 Environmental Conditions
4.1 Operational environment
indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
4.2 Vibration
<0.5G, no violent vibration and impact
4.3 Altitude
≤2000 meters
4.4 Storage Temperature
-30 ~ 75 ℃ (-22 ~ 167 ℉)
4.5 Operating Temperature
-30 ~ 55 ℃ (-22 ~ 131 ℉)
4.6 Operating humidity
95%RH, no water droplet condensation




Product Detail

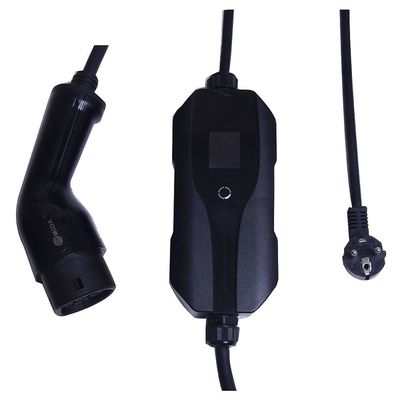

Switchable 10A / 16A EV Type 2 Charger EVSE Electric Vehicle Car Charger 0

Electricial Performance

  • 12 month warranty
  • Working Current: 16A 3x2.5mm2+2x0.5mm2 EV Charging Cable
  • Working Voltage: 240V AC
  • Auto charge recovery
  • LED Lights for charging status;
  • Waterproof IP66
  •
  • Operating Temperatures: -30° To +50°
  • Certificates: CE TUV
  • Charge from your home power point
  • Enclosure is water resistant to IP66
  • Electrical approval for EU, CE TUV
  • Guaranteed to be fully compatible with ALL Type 2 electric charging

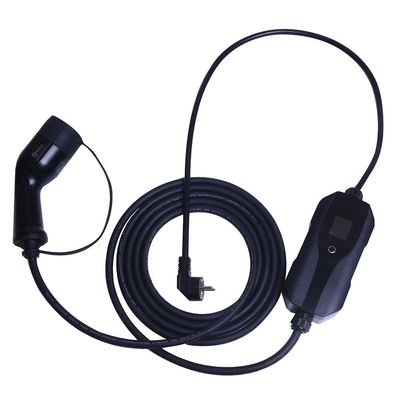

Switchable 10A / 16A EV Type 2 Charger EVSE Electric Vehicle Car Charger 1



Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
When the internal temperature of the control box exceeds 85°C,enter over-tempe

LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Charging speed in KW

Features

Electric Vehicle Car Portable Charger J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Port

Warnings:
● Do not use the charging box if it is damaged.
● Only use for EV charging
● Please do not disconnect while the charging box is charging.

Specifications:
Length: Total 5meters
IP Grade: IP65 waterproof
Rated Current: 8/10/13Amp adjustable
Input/Output: 240V 50Hz
Operating Temperature: -30℃~+50℃
Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Retardant Frade: UL94V-0

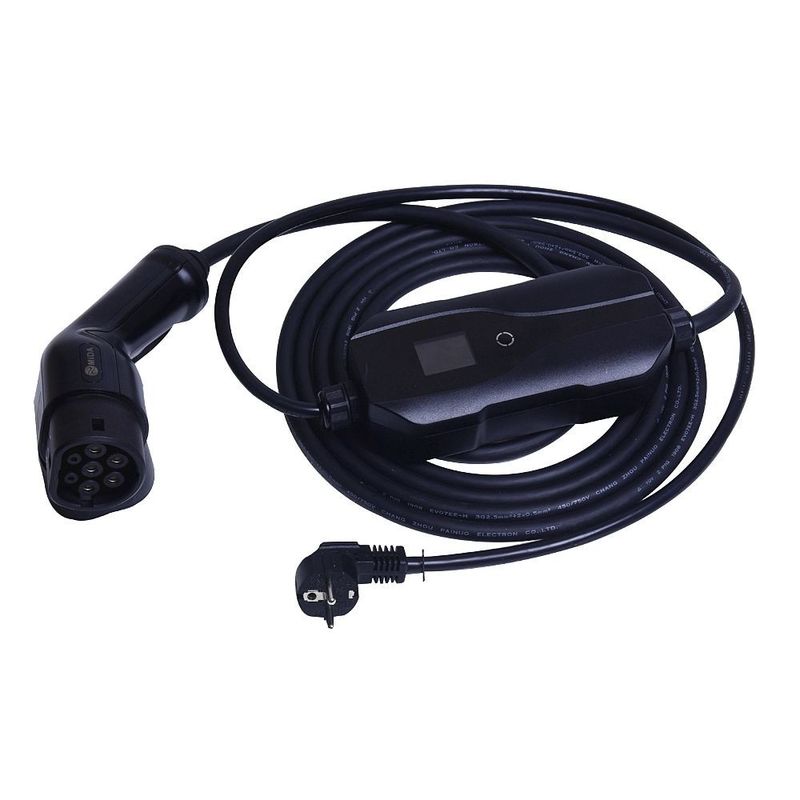

 Switchable 10A / 16A EV Type 2 Charger EVSE Electric Vehicle Car Charger 2


FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
