Product Details
Place of Origin: China
Brand Name: ANS
Certification: CE
Model Number: ANS-portable-charger
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: 15.7*15*3.15(in)
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS/month
Product Name: |
Portable EV Charger |
Brand: |
ANS |
Type: |
Portable EV Charger |
Rated Current:: |
16A |
Rated Frequency: |
50Hz/60Hz |
Storage Temperature: |
-30 ℃ To +50℃ |
Stardard: |
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017 |
Cable Colour: |
Black Or Customization |
Protection: |
IP67 |
Weight: |
3.5kg |
Product Name: |
Portable EV Charger |
Brand: |
ANS |
Type: |
Portable EV Charger |
Rated Current:: |
16A |
Rated Frequency: |
50Hz/60Hz |
Storage Temperature: |
-30 ℃ To +50℃ |
Stardard: |
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017 |
Cable Colour: |
Black Or Customization |
Protection: |
IP67 |
Weight: |
3.5kg |

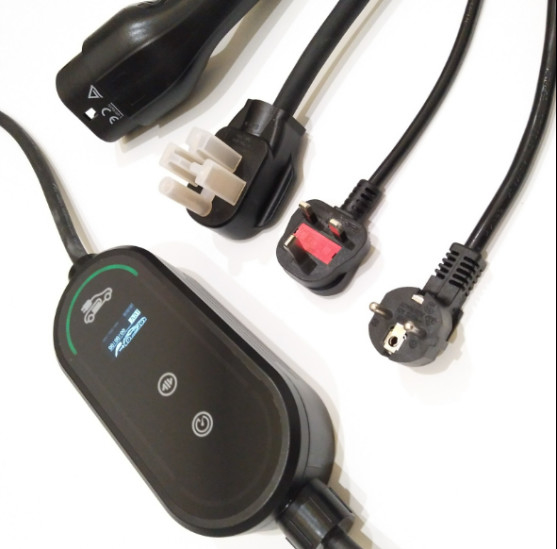

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)
Product Description

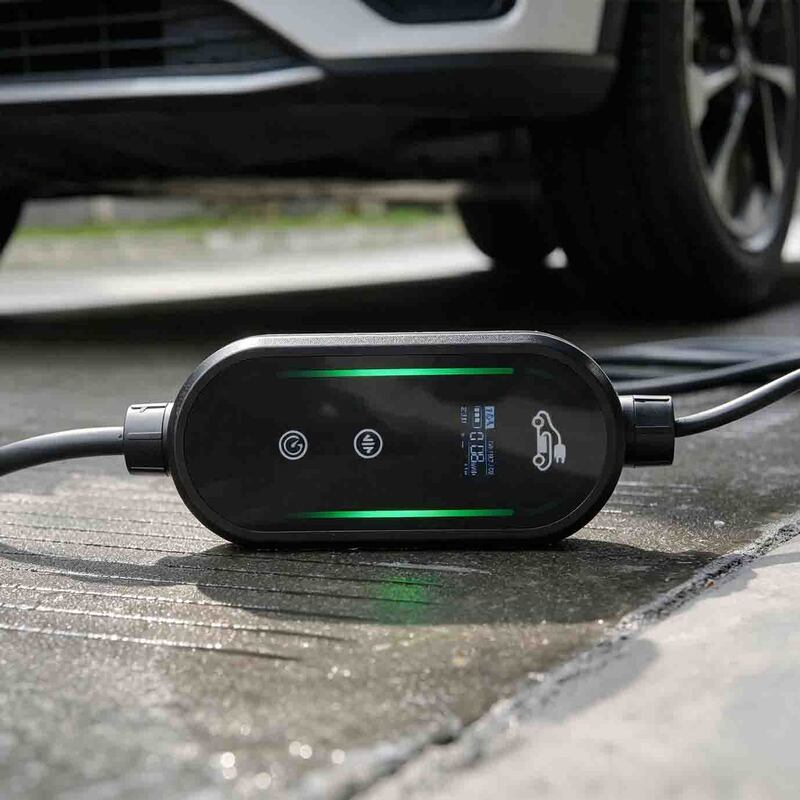

It is equipped with an LED display screen to clearly display relevant data, which is more convenient, safe and efficient. It is applicable to a variety of vehicles and can be installed and used in many occasions, such as underground parking garage, family garage, public garage, etc.
| Type | CBYEN-ev16-P | Plug the power | 80N<F<100N |
| Color | Black/White/customized | Patch life | ≥10000 |
| Rated Current | 8A-10A-13A-16A | Fire rating | UL94 V-0 |
| Rated Voltage | 380V~450V | Waterproof rating | IP67 |
| Resistance Voltage | 2000V | Operating Temperature | -30°C to50°C |
| Insulation resistance | >10MΩ | Cable Specifications | 5*2.5mm2+2*0.5mm2 |
| Contact resistance | less than 0.5mΩ | The main material | PA/Copper Alloy |
Functional definition:
| Mark | Functional Definition |
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3-(L3) | AC power |
| 4-(N) | Neutral |
| 5-(PE) | PE |
| 6-(CP) | Control Confirmation |
| 7-(PP) |
Connection Confirmation |

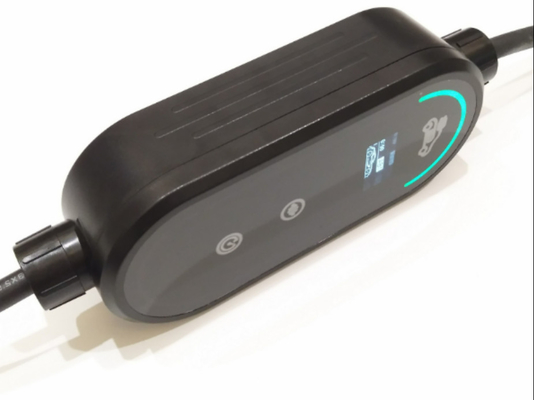

Product Detail
16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)
Cable length: 5m
Car Side Plug : Type 2
Current:8A-10A-13A-16A
Voltage: 380V±20%
Max. power: 7kW
Ingress Protection: IP 67
Operating temperature: -30℃~+50℃
Certificate: CE
Features
LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
Producing&Packing
Certification
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
