Portable EV Charger

3.7kW 16A Portable EV Charger with IP67 and CE Certification

All Category

Type 1 To Type 2 EV Charging Cable

Type 2 To Type 2 EV Charging Cable

EV DC Charging Station

Ms. Alice Wang

info@cn-ans.com

+8615881062591

Contact Now

3.7kW 16A Portable EV Charger with IP67 and CE Certification

Brand Name:	ANS
Model Number:	EVA03B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Product Name:

3kw 16A Portable EV Charger

Type:

Portable EV Charger

Rated Current::

Rated Frequency:

50Hz/60Hz

Storage Temperature:

-30 ℃ To +50℃

Stardard:

EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017

Cable Colour:

Black Or Customization

Protection:

Supply Ability:

100000PCS/month

Highlight:

3.7kW portable EV charger

16A portable EV charger

IP67 waterproof EV charger

Product Description

3kw16A Portable Home Ev Charger With CE Certification and Led Display

Product Description

The EVA03B portable home ev charger is a high-performance portable EV charger designed for convenience and reliability. With a maximum output power of 3.7kW at 230V/16A, it supports both 110V and 230V AC inputs, making it compatible with most household and public charging points worldwide. Complying with the IEC 62752:2016/COR1:2019 standard and CE certified, this charger ensures safety and efficiency. It features multiple protections including over-voltage, under-voltage, overload, short circuit, leakage, over-temperature, and lightning protection. The sleek design includes a 5-meter charging cable, an OLED screen for real-time monitoring, and LED indicators for easy operation. Weighing only 2.1kg and built with durable materials, the EVA03B is perfect for on-the-go electric vehicle owners.

Key Advantage

Adjustable current

Delay charging setting

LED Light and Touch Key

Built-in RCD type B

Specificaiton

Product Model EVA03B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 3.7kW(@230V 16A)
Max.output current	16A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Protection
Certificate	CE
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
OLED screen	Yes
RCD	Type B
Current adjustment	Yes
Delay charging adjustment	Yes
Ethernet/WIFI/4G/Bluetooth	No
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 60℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<0.5W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤2.1kg
Colour&Material	Black;Tempered Glass,PC

Features

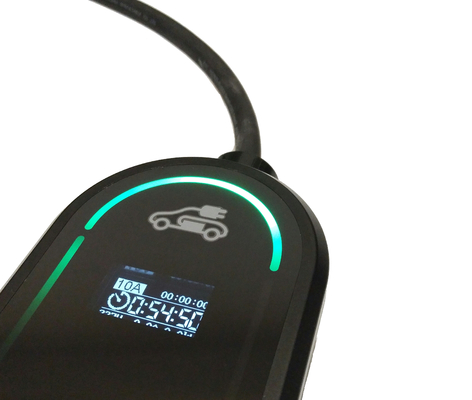

LED Display:

1. Charging Temperature

2. Charging Current

3. Charging Voltage

4. Energy Charged in KW/h

5. Charged time.

6.Set Current

7. Charging speed in KW

3.7kW 16A Portable EV Charger with IP67 and CE Certification 0

3.7kW 16A Portable EV Charger with IP67 and CE Certification 1

LED Indicators

3.7kW 16A Portable EV Charger with IP67 and CE Certification 2

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

Packaging

Our Certification

Exhibition
3.7kW 16A Portable EV Charger with IP67 and CE Certification 5

Visits from Various Countries (looking forward to your arrival)

3.7kW 16A Portable EV Charger with IP67 and CE Certification 6
