Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV/CE/UL/RoHS/REACH
Model Number: CCS2-350A-AS
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: 0-2000
Packaging Details: Carton box. Carton size: 43*43*21cm
Delivery Time: 10-30days
Payment Terms: T/T, Western Union,Paypal, L/C, L/C
Supply Ability: 200pcs/day
Product Name: |
CCS Type 2 Charging Cable |
Rated Current: |
350A |
Rated Voltage: |
1000V |
Cable Length: |
5 Meters |
IP Grade: |
IP67 |
Material: |
Silver-plated Contacts, Low Contact Resistance. |
Standard: |
IEC62196-3 |
Working Temperature: |
-40°C ~+50°C |
Product Name: |
CCS Type 2 Charging Cable |
Rated Current: |
350A |
Rated Voltage: |
1000V |
Cable Length: |
5 Meters |
IP Grade: |
IP67 |
Material: |
Silver-plated Contacts, Low Contact Resistance. |
Standard: |
IEC62196-3 |
Working Temperature: |
-40°C ~+50°C |
IP67 CCS Type 2 TPU ev charging cable 350A 1000V
Product Feature
Technical Data
| Product Type | CCS TYPE 2 DC Charging 350A |
| Product Definition | |
| Charging mode/Connection Mode | Mode 4/Case C |
| Environment | |
| Working Temp. | -40~+50℃ |
|
Storage Temp.
|
-40~+85℃ |
|
Altitude
|
<4000m |
|
Humidity
|
90%@50℃ non-condensing |
|
Electrical properties
|
|
|
Rated Current
|
350A
|
|
Rated Voltage
|
1000V DC
|
|
Insulation Resistance
|
>100MΩ (1000V DC)
|
|
Withstand voltage
|
<10mA (2500V AC)
|
|
Mechanical properties
|
|
|
Mechanical Life
|
10000 cycles(No Load)
|
|
Pull Out Force
|
<100N
|
|
Degree Of Protection
|
IP67
|
|
Flammability
|
UL94 V-0
|
|
Plug
|
|
|
Plug Material
|
PA6+GF30
|
|
Plug Color
|
Black
|
|
Terminal
|
|
|
Terminal Material
|
Cu-Ni alloy + Silver plated
|
|
Terminal Temp. Rise
|
<50K(after 10K cycles)
|
|
Num. Of Terminals
|
3 (PE,DC+,DC-) ; 2 (CP, PP)
|
|
Cable
|
|
|
Outer Sheath Material
|
TPU
|
|
Outer Sheath Color
|
Black
|
|
Cable Structure
|
2x(2x50)+(16+20)+6x0.75
|
|
Outer Diameter
|
35.5±0.8mm
|
Product Drawings

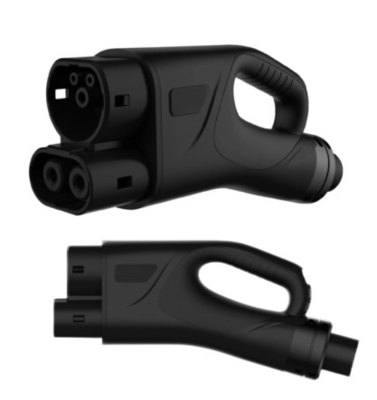

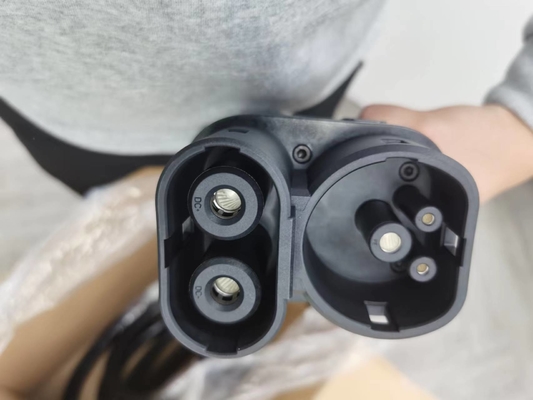

Product Pictures
Our Certifications
FQA
Q1. What is your terms of Packaging?
A: Generally, we pack our products in neutral brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will 3-7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your products before delivery?
A: Yes, we have 100% test before delivery. 24 hours will be needed to test the quality and performance.
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
