Name: DC 200A CCS Combo 1 EV Charging Socket Quick DC Charger Connector Inlet
Brand: Chengdu Honors Technology Co.,Ltd
SKU: ANS-CCS1-200A
Price: 1,032.00 USD
Availability: InStock

Brand Name:	ANS
Model Number:	ANS-CCS1-200A
MOQ:	1pcs
Price:	USD
Packaging Details:	export standard package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV，CE

Product Name:

CCS Combo 1 EV Socket

Amps:

200A

Voltage:

1000V

Cable Size:

70mm2

Color:

Black Or White

Standard:

SAE US Standard

Logo:

Support Customzation

Cable Length:

5M Or Others Based On Requirement

Supply Ability:

1000pcs a week

Highlight:

Combo 1 EV Charging Socket

CCS1 EV Charging Socket

Product Description

EV Charging Socket Quick DC Charger Connector Inlet UL Certification 200A 1000V DC CCS Combo 1 EV Socket

MECHANICAL PROPERTIES

Charging socket conforms to SAE J1772-2016 standard
Concise appearance, support front and back installation
Safety pins insulated head design to prevent accidental direct contact with staff
Overall product protection level 3S,Back protection class IP65

DC input	80A/150A/200A 600V DC
AC input	16A/32A/63A 240/415V AC
Insulation resistance	＞2000MΩ(DC1000V)
Terminal temperature rise	＜50K
Withstand Voltage	3000V
Contact Resistance	0.5mΩ Max
Case Material	Thermoplastic,flame retardant grade UL94 V-0
Pin	Copper alloy,silver + thermoplastic on the top
Operating temperature	-30°C~+50°C

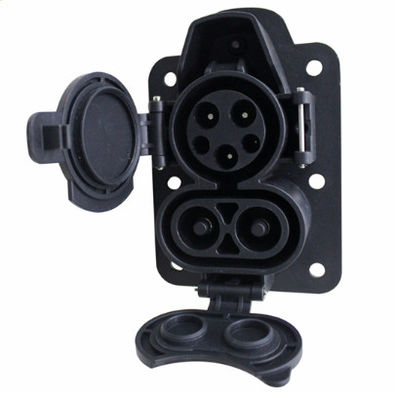

DC 200A CCS Combo 1 EV Charging Socket Quick DC Charger Connector Inlet 0

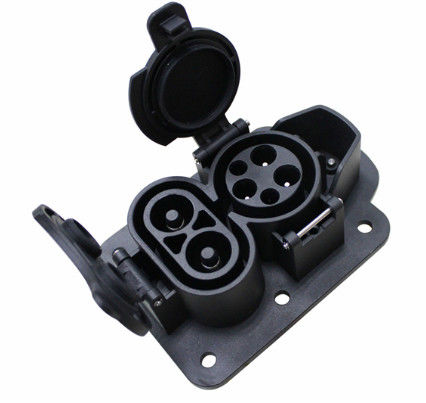

DC 200A CCS Combo 1 EV Charging Socket Quick DC Charger Connector Inlet 1

Factory photo

package

Certification: TUV,CE
