Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV/CE/UL/RoHS/REACH
Model Number: ANS-CCS1-2-ADAP
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD210-USD250
Packaging Details: Carton box. Carton size: 43*43*21cm
Delivery Time: 10-30days
Payment Terms: T/T, Western Union,Paypal, L/C, L/C
Supply Ability: 600pcs/day
Product Name: |
150A Combo 1 To Combo 2 CCS Fast Charging Adapter |
Type: |
Electrical Plug |
Model Number: |
25135 |
Rated Voltage: |
1000V |
Rated Current: |
150A |
Contact Pin: |
Copper Alloy, Silver Plating |
Standard: |
IEC62196-3 |
Working Temperature: |
-30°C ~+50°C |
Product Name: |
150A Combo 1 To Combo 2 CCS Fast Charging Adapter |
Type: |
Electrical Plug |
Model Number: |
25135 |
Rated Voltage: |
1000V |
Rated Current: |
150A |
Contact Pin: |
Copper Alloy, Silver Plating |
Standard: |
IEC62196-3 |
Working Temperature: |
-30°C ~+50°C |

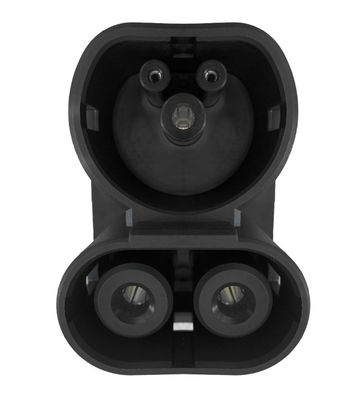

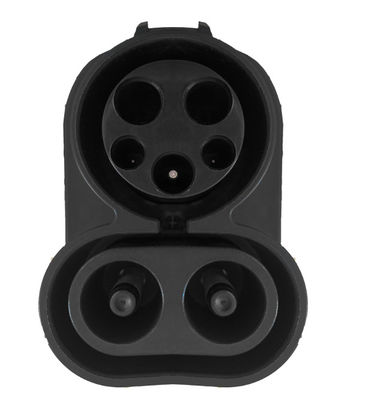

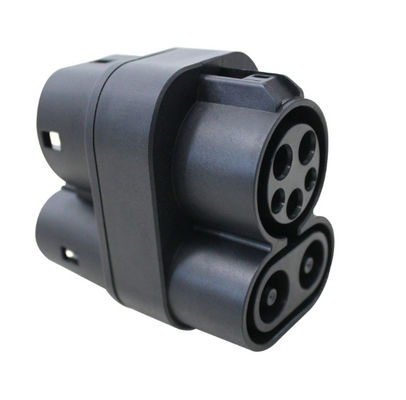

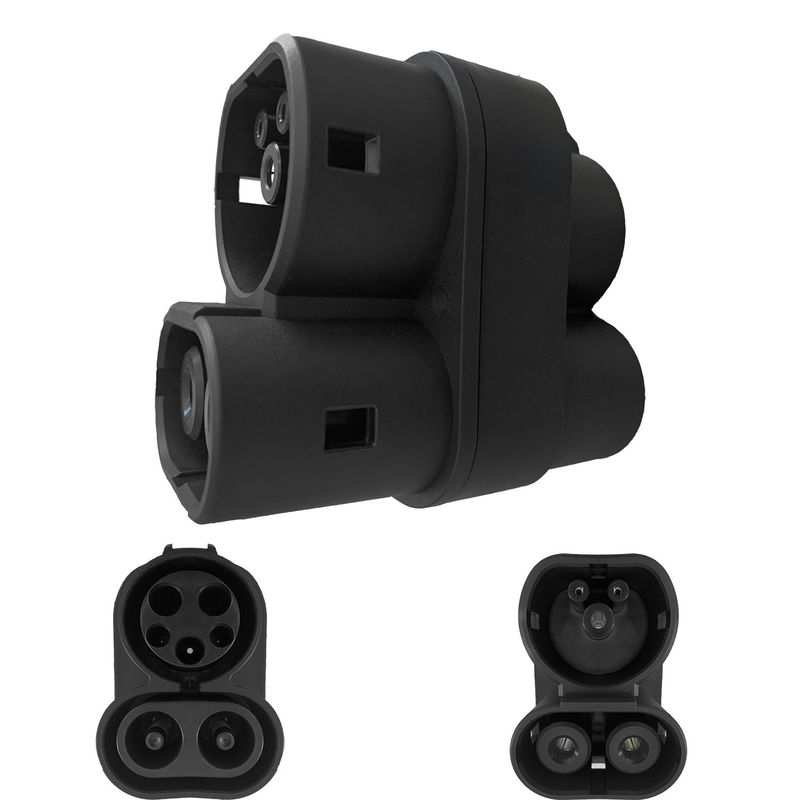

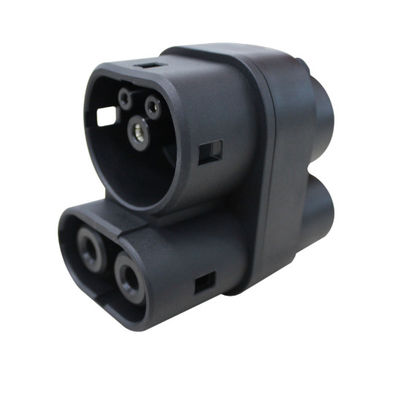

150A Combo 1 to Combo 2 CCS Fast Charging Adapter
This adapter is always used to charge a CCS 2 socket integrated car on a CCS 1 charging station.
1. Charging plug meet 62196-3 IEC 2011 SHEET 3-Im standard
2. Housing massive structure promote protection performance
3. LED shows working condition
4. Product entire insertion and extraction force<100N
5. Protection class IP67
6. Max charging power: 127.5KW
Electric Performance:
| Rated current | 150A |
| Operating voltage | 1000V DC |
| Insulation resisitance | >2000MΩ(DC1000V) |
| Therminal temperature rise | <50K |
| Withstand voltage | 3200V |
| Vibration resistance | Meet JDQ53.36.1.1-53.36.1.2 requirements |
| Contact impedance | 0.5mΩ Max |
| Mechanical life | no-load plug in/pull out >10000 times |
| Insertion and Extration Force | 45N |
| Contact Pin | Copper alloy, silver or nickel plating |
| Sealing gasket | rubber or silicon rubber |
| Operating temperature | -30°C~+50°C |
Specification:
Current:150Amp
DC max charging power:90KW
AC max charging power: 41.5KW
Applied Materials
Case Material: Thermoplastic,flame retardant grade UL94 V-0
Contact bush: Copper alloy, silver plating
Product entire insertion and extraction force < 100N
Protection class: IP55
Max charging power:127.5KW
Drawings
FQA
Q1. What is your terms of Packaging?
A: Generally, we pack our products in neutral brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: We accept all methods of payment: paypal, T/T, credit card, Alibaba assurance, West Union... Please contact us for more details.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will 3-7 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your products before delivery?
A: Yes, we have 100% test before delivery. 24 hours will be needed to test the quality and performances.
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
