Name: Mode 4 EV Charging Cable Type 2 250A 300A 1000V Weathering Resistance
Brand: Chengdu Honors Technology Co.,Ltd
SKU: ANS-350A
Price: 1,032.00 USD
Availability: InStock

Brand Name:	ANS
Model Number:	ANS-350A
MOQ:	1pc
Price:	USD
Packaging Details:	standard export package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV, CE

Name:

Type 2 CCS Plugs 350A

Amps:

250A, 300A ,350A

Certificate:

TUV,CE

Rated Voltage:

1000V DC

Material:

Nylon / Silicone Rubber

Protection Grade:

IP66

Flame Retardant Grade:

UL94V-0

Insertion Force:

F < 100N

Connector Durability:

No-load Plug / Unplug > 10,000 Cycles

Ambient Temperature:

-40°C ~ +50°C

Highlight:

mode 4 charging cable 1000V

ev charger type 2 250A

EV charging cable type 2 300A

Product Description

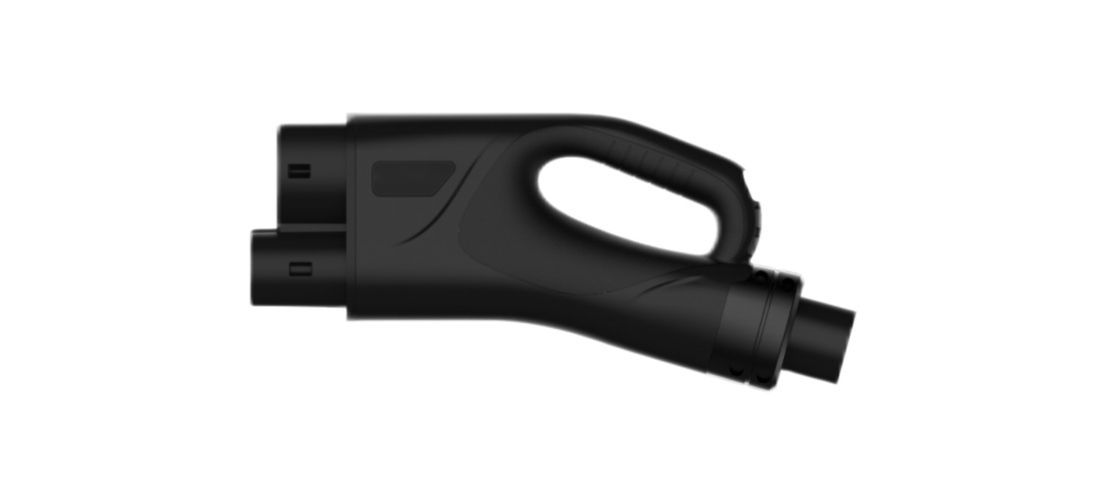

CCS Combo 2 Charging Cables Type 2 DC Charging Plugs 250A 300A 350A 1000V DC

Product Feature

IP67 (Protective cap) / IP67 (Plugged in).

Silver-plated contacts, low contact resistance.

Ergonomic handle.

TPU Cable with excellent flexibility, soft touch, weathering resistance, fatigue

resistance and temperature resistance.

Cable diameter of just 21mm for 100A; 23mm for 150A; 28 mm for 200A; 30.5 mm

for 250A; 32.5mm for 300A; 35.5mm for 350A.

PT 1000 temperature sensors embedded.

Customized length and cable end preparation.

Lower resistance and more reliable connection between DC contacts and cable with

double-side ultrasonic welding

Charging mode/Connection Mode	Mode 4/ Case C
Working Temp.	-40~+50℃
Storage Temp.	-40~+85℃
Altitude	<4000m
Humidity	90%@50℃ non-condensing
Outer Sheath Material	TPU
Cable Structure	2x(2x50)+(16+20)+6x0.75
Outer Diameter	35.5±0.8mm
Terminal Temp. Rise	<50K(after 10K cycles)
Num. Of Terminals	3 (PE,DC+,DC-) 2 (CP, PP)
Terminal Material	Cu-Ni alloy + Silver plated
Plug Material	PA6+GF30
Flammability	UL94 V-0
Degree Of Protection	IP67
