Name: GB/T 22kW OCPP2.0 Type 2 AC Charging Station IP54 7'' Touch Screen
Brand: Chengdu Honors Technology Co.,Ltd
SKU: ANS-ACST-7kW
Price: 530.00 USD
Availability: InStock

Brand Name:	ANS
Model Number:	ANS-ACST-7kW
MOQ:	1pc
Price:	USD
Packaging Details:	standard export package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV, CE

Name:

EV AC Charging Station

Charging Interface:

3 Plugs, Type 1, Type 2, GB/T

OCPP:

OCPP1.6 / OCPP2.0

Operating Temperature:

Minus 20 ℃to+55℃ (derating When Over 55℃)

Network Interface:

Ethernet (standard); Wi-Fi, 4G (optional)

Ingress Protection:

IP54

Storage Temperature:

-40 ℃to+70℃

Altitude:

Up To 2000 M (6000 Feet)

Charging Cable Length:

Certificate / Compliance:

CE / EN 61851-1/-23

Supply Ability:

50pcs one day

Highlight:

GB/T 22kW AC Charging Station

IP54 AC Charging Stations

OCPP2.0 type 2 charging stations

Product Description

AC Charging Station Commercial Charging OCPP 4G with Type 1 Type 2 GB/T Control Pilot

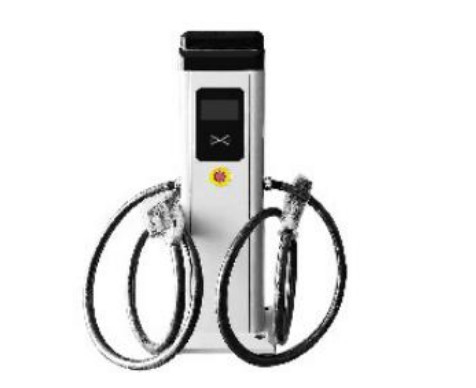

GB/T 22kW OCPP2.0 Type 2 AC Charging Station IP54 7'' Touch Screen 0

TYP1, TPY2 and GB AC control pilot charging standard compliant
OCPP integration
Remote diagnostics, repair and updates
Easily connect to Charging points Management System
Compact design

Item Number		3P-22K-AC3-32A	3P-11K-A3-32A
Power input	Input rating	400V 3ph 32A max.	400V 3ph 32A max.
	Number of phase / wire	3ph / L1, L2, L3, PE
Power output	Output power	Type1: 7kW Type2: 22kW	Type1: 7kW Type2: 11kW
		GB:22KW	GB:7KW
		Remark: only one gun is available in a charging session. or 3 plugs charge at same time
	Output rating	400V AC	400V AC
Protection	Protection	Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault
User interface & control	Display	7” touch screen
	Support language	English (Other languages available upon request)
	Charge option	Charge options to be provided upon request: Charge by duration, Charge by energy, Charge by fee
	Charging interface	Type1 / Type2 / GB
	User authentication	Paypal and (or) NFC card
Communication	Network interface	Ethernet (standard); Wi-Fi, 4G (optional)
	Open Charge Point Protocal	OCPP1.6 / OCPP2.0
Environmental	Operating temperature	minus 20 ℃to+55℃ (derating when over 55℃)
	Storage temperature	-40 ℃to+70℃
	Humidity	< 95% relative humidity, non-condensing
	Altitude	Up to 2000 m (6000 feet)
Mechanical	Ingress protection	IP54
	Enclosure Protection againstExternal Mechanical Impacts	IK10 according to IEC 62262
	Cooling	Forced air
	Charging cable length	5m
	Dimension (WDH) mm	3404001400	3404001400
	Weight	80kg	80kg
Regulation	Certificate / Compliance	CE / EN 61851-1/-23

GB/T 22kW OCPP2.0 Type 2 AC Charging Station IP54 7'' Touch Screen 1
