Home > products > Type 2 To Type 2 EV Charging Cable > Black 16A 3 Phase 5m Type 2 To Type 2 Cable TPU Material TUV Certification

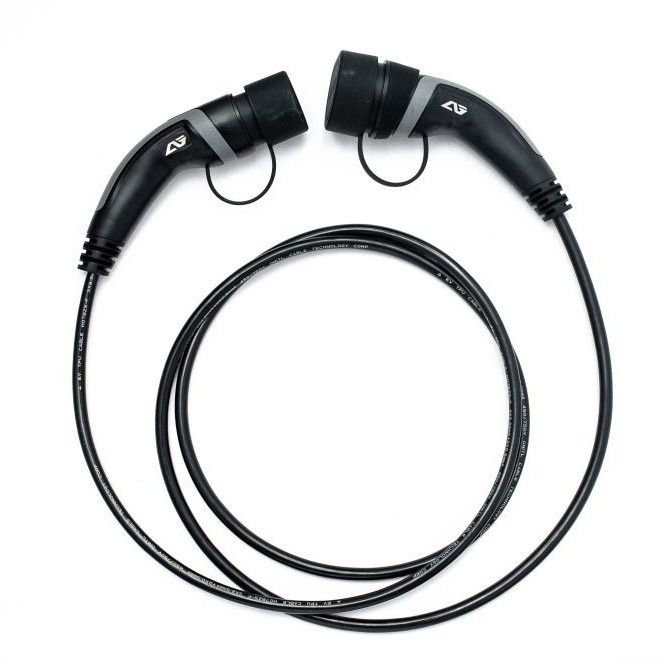

Black 16A 3 Phase 5m Type 2 To Type 2 Cable TPU Material TUV Certification

Product Details

Place of Origin: china

Brand Name: ANS

Certification: TUV

Model Number: ANSAG-T2-T2-16

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD

Packaging Details: 15.7*15*3.15(in)

Delivery Time: 20-30days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100000PCS/month

Get Best Price
Highlight:

3Phase Type 2 To Type 2 Cable

,

5m Type 2 To Type 2 Cable

Brand:
ANS
Material:
TPU
Rated Current::
16A
Stardard:
IEC 62196-2
Protection Level::
IP67
Warranty:
2years
Certifications::
TUV
Brand:
ANS
Material:
TPU
Rated Current::
16A
Stardard:
IEC 62196-2
Protection Level::
IP67
Warranty:
2years
Certifications::
TUV
Black 16A 3 Phase 5m Type 2 To Type 2 Cable TPU Material TUV Certification

16A 3 phase 5m black TPU material TUV certification Type 2 to Type 2 ev charger cable







Product Description



Input & Output

Input voltage/Output voltage

100~250V AC

Max. output current

16A 3Phase

Input frequency

47~63Hz

Charging interface type

Type 2-Type2

Max. output power

22KW





Protection

Over voltage protection

yes

Earth leakage protection

yes

Under voltage protection

yes

Over-temp protection

yes

Over load protection

yes

Lightning protection

yes

Short circuit protection

yes





Function and Accessory

Ethernet/WIFI/4G/Bluetooth

No

Cable gauge

5*2.5+2*0.5mm2

Plug type

Type 2-Type2 male&female

Plug material

Thermoplastics

Length

5 meters

Cable material

TPU

Working environment

Waterproof Protection degree

IP67

Maximum altitude

<2000m

Environment temperature

-40℃ ~ +50℃

Cooling

Natural air cooling

Relative humidity

0-95% non-condensing

Standby power consumpiton

<8W

Package

Dimension (W/H/D)

40/38/8cm

Weight

4KG

Certificate

CE, TUV,





Product Detail



Feature of Type1-Type 2 Ev Charging Cables



IP67 Rated Ergonomic Pistol Grip Style



● Impact Resistant ‘Run Over’ Proof



● 10,000 Mating Cycles



● Cable Strain Relief Feature



● Insulated Terminal Design



● J1772 Locking Feature for Padlock



● Dust Cap on Lanyard



● High Viz Orange Or Black Cable



● CE & TUV Approved





Black 16A 3 Phase 5m Type 2 To Type 2 Cable TPU Material TUV Certification 0









FAQ



Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.



HOT SALES



Black 16A 3 Phase 5m Type 2 To Type 2 Cable TPU Material TUV Certification 1











Producing&Packing







Black 16A 3 Phase 5m Type 2 To Type 2 Cable TPU Material TUV Certification 2





Certification





Black 16A 3 Phase 5m Type 2 To Type 2 Cable TPU Material TUV Certification 3
