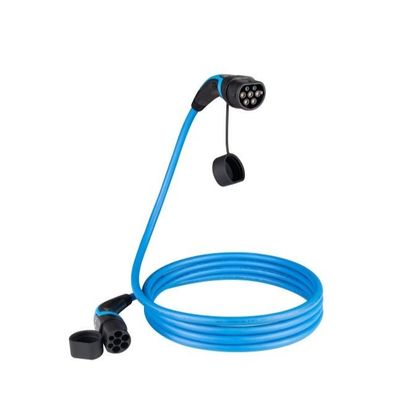

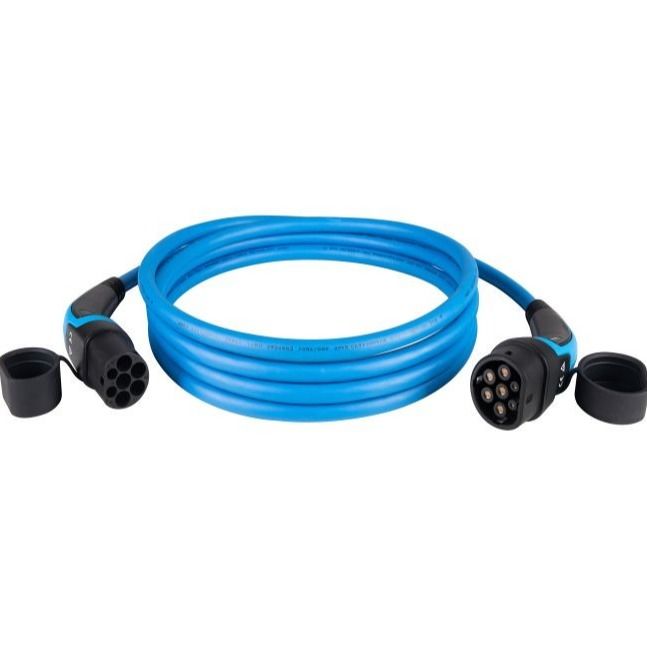

32A IP67 TPU Type 2 to Type 2 EV Charging Cable for Home and Commercial Use

Brand Name:	ANS
Model Number:	ANSAG-T2-T2-32-ST
MOQ:	1
Delivery Time:	20-30days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

TUV

Product Name:

32A Type2 To Type2 EV Charging Cable

Brand:

ANS

Material:

TPU

Color:

Blue

Rated Current::

32A

Stardard:

IEC 62196-2

Protection Level::

IP67

Warranty:

2years

Certifications::

TUV

Packaging Details:

15.7*15*3.15(in)

Supply Ability:

100000PCS/month

Highlight:

250V EV Home Charging Cable

32A EV Home Charging Cable

ANS Type 2 Type 2 Charging Cable

Product Description

ANS 32A 250V EV Home Charging Cable Type 2 to Type 2 Charging Cable

Product Overview

32A 250V EV IEC62196 home use commercial use Type2 to Type2 EV Charging Cable

Technical Specifications

Input & Output Parameters	Specifications
Input voltage/Output voltage	100~250V AC
Max. output current	32A 1Phase
Input frequency	47~63Hz
Charging interface type	Type 2-2
Max. output power	22KW

Protection Features	Availability
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Earth leakage protection	Yes
Over-temp protection	Yes
Lightning protection	Yes

Function and Accessory	Details
Ethernet/WIFI/4G/Bluetooth	No
Cable gauge	36+20.5mm²
Plug type	Type 2-Type2 male♀
Plug material	Thermoplastics
Length	5 meters
Cable material	TPU

Working Environment	Specifications
Waterproof Protection degree	IP67
Maximum altitude	<2000m
Environment temperature	-40℃ ~ +50℃
Cooling	Natural air cooling
Relative humidity	0-95% non-condensing
Standby power consumption	<8W

Package Details	Specifications
Dimension (W/H/D)	40/38/8cm
Weight	4KG
Certificate	CE, TUV

Product Specifications

Product Type	Rated Current/Voltage	Cable Specifications
M-IEC2-lie-16p	16A/250V	H07BZ5-F3X2.5mm²+2x0.5mm²
M-IEC2-lie-16p-3	16A/480V	H07BZ5-F3X2.5mm²+2x0.5mm²
M-IEC2-lie-32p	32A/250V	H07BZ5-F3X6mm²+2x0.5mm²
M-IEC2-lie-32p-3	32A/480V	H07BZ5-F5X6mm²+2x0.5mm²

Key Features

Conforms to IEC 62196-2-2016 standards
Riveting pressure process with no screws for beautiful appearance
Ergonomic hand-held design for convenient plugging
XLPO cable insulation for extended aging resistance lifespan
TPU sheath improves bending life and wear resistance
Excellent protection performance with IP55 rating in working conditions
Double color coating technology for personalized color customization

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

A: FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
