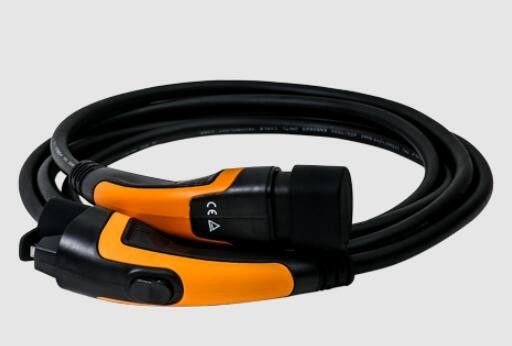

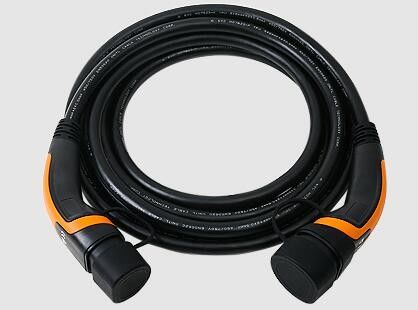

32A 480V Type 2 To Type 2 EV Charging Cable IEC 62196 3 Phase Charging Cable

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV,CE,RoHs, REACH

Model Number: ANSAG-T2-T2-32A

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD

Packaging Details: standards export package

Delivery Time: 20-30days

Payment Terms: L/C, D/A, T/T, D/P, Western Union

Supply Ability: 1000pcs one day

Get Best Price
Highlight:

480V Type 2 To Type 2 EV Charging Cable

,

32A Type 2 To Type 2 EV Charging Cable

,

IEC 62196 3 Phase Charging Cable

Product Name:
Type 2 To Type 2 EV Charging Cable
Amps:
32A
Charging Mode:
Mode 3 Type 2 To Type 2
Voltage:
480V 3 Phase
Length:
5M, 7.5M,10M
Materials:
HUNTSMAN, SABIC, DUPONT
Plug Standard:
IEC 62196
Cable Size:
5*6+2*0.5mm2
Warranty:
2 Years
OEM:
Support Customization
Product Name:
Type 2 To Type 2 EV Charging Cable
Amps:
32A
Charging Mode:
Mode 3 Type 2 To Type 2
Voltage:
480V 3 Phase
Length:
5M, 7.5M,10M
Materials:
HUNTSMAN, SABIC, DUPONT
Plug Standard:
IEC 62196
Cable Size:
5*6+2*0.5mm2
Warranty:
2 Years
OEM:
Support Customization
32A 480V Type 2 To Type 2 EV Charging Cable IEC 62196 3 Phase Charging Cable

IEC 62196 Type 2 Electric Car Chargers EV Public Charging Cables 32A 480V 3Phase Type 2 to Type 2 EV Charging Cable



Product Features

Electrical Performance
The rated current 16A,20A,32A The rated voltage 120V,250V
Insulation resistance > 1000MΩ (DC500V) Pins temperature rise <50K
Withstand voltage 2500V Contact impedance

0.5mΩ Max





Mechanical Properties

Mechanical life

no-load plug> 10000

Insertion force:

<100N

Impact of external force

can afford 1m drop and 2t vehicle run over pressure



Part name

Material

Supplier

Cable

PUR (TPU)

HUNTSMAN: A85P4380

Shell of plug

PC+PBT

SABIC:V3900WX

Head of plug

PA66+GF25

DUPONT: FR50



Specification:

  1. Waterproof -We use press machine to combine the plug with special whole design, our cables can use in the rain.
  2. arcing protection- with arc extinguishing protection, the plug-in process automatically eliminates the arc to ensure safety.
  3. cables Materials- our cables TPU is provided by Huntsman, shell of plug is provide by SABIC, and head of plug is DuPont
  4. Safety Assurance- already passed all tests of TUV,CE, they are all kind of protective measures to ensure the safety of every user.

Application Case



32A 480V Type 2 To Type 2 EV Charging Cable IEC 62196 3 Phase Charging Cable 0

32A 480V Type 2 To Type 2 EV Charging Cable IEC 62196 3 Phase Charging Cable 1



About US

We not only got the certification of ISO9001 quality management system,ISO14001 environment system , OHSAS18001 occupational health and safetymanagement system,IATF 16949 management system but also though the Safety production standardization level 2,becoming a integration ofinformatization and industrialization pilot enterprise and standards implementationpilot enterprise,a national high-tech enterprise and well-known trademarks in China.We have more than 20 invention patents and utility model patents and ourproducts have got TUV, CCC, CE, UL certification.



The business category including the equipment of charging pile,wind powergeneration and photovoltaic power genetation, ect.Provide targeted products andsolutions for government public power,transportation service charging andprivate power supply facilities.



SGS approved

our cables cooper part and terminal contact are SGS approved, it meet IEC 62321-4:2013+AMD1:2017, IEC62321-5:2013 and 62321-7-1:2015 standards, RoHs EU 2015/863.



EV Charging Cables Specification,Plastic part,TPU materials

The charging plugs and cables plastic part is TPU that come from imported HUNTSMAN,Sabric, They all pasted CE,ROHS and friendly to people and environmental. Being responsible to our output and the environment is being trustworthy to our clients. Besides, we never forget our intention of making reliable products from the start. Hence, we are committed to utilizing green materials made to reduce carbon footprint, environmental contamination, or negative health effects.



TPU sheath

The TPU cable itself has adopted environmental raw materials and totally halogen free. It won’t release any harmful smell or gas even under burning.The halogen free cable can effectively prevent itself from burning in large area.



Why need Halogen-free?

When a fire unfortunately occurs, many people are not burnt to death, but basically smoked to death. Low smoke is emphasised by not producing large amounts of smoke, and halogen-free is the cable does not add substances such as chlorine and fluorine, which are chemical substances that give off toxic gases when burning and are toxic to the human body and are mainly considered to protect the personal safety of people.

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
