RoHs TUV CE Type 2 To Type 2 EV Charging Cable OEM Length Standard Grounding

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV,CE,RoHs, REACH

Model Number: ANSAG-T2-T2-32A

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD

Packaging Details: standards export package

Delivery Time: 20-30days

Payment Terms: L/C, D/A, T/T, D/P, Western Union

Supply Ability: 1000pcs one day

Get Best Price
Highlight:

CE Type 2 To Type 2 EV Charging Cable

,

OEM Type 2 To Type 2 EV Charging Cable

,

Grounding OEM Type 2 EV Cable

Product Name:
Type 2 To Type 2 EV Charging Cables
Amps:
32A
Charging Mode:
IEC 62196 Mode 3
Voltage:
480V
Length:
OEM
Materials:
HUNTSMAN, SABIC, DUPONT
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
2 Years
Phase:
3phase
Product Name:
Type 2 To Type 2 EV Charging Cables
Amps:
32A
Charging Mode:
IEC 62196 Mode 3
Voltage:
480V
Length:
OEM
Materials:
HUNTSMAN, SABIC, DUPONT
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
2 Years
Phase:
3phase

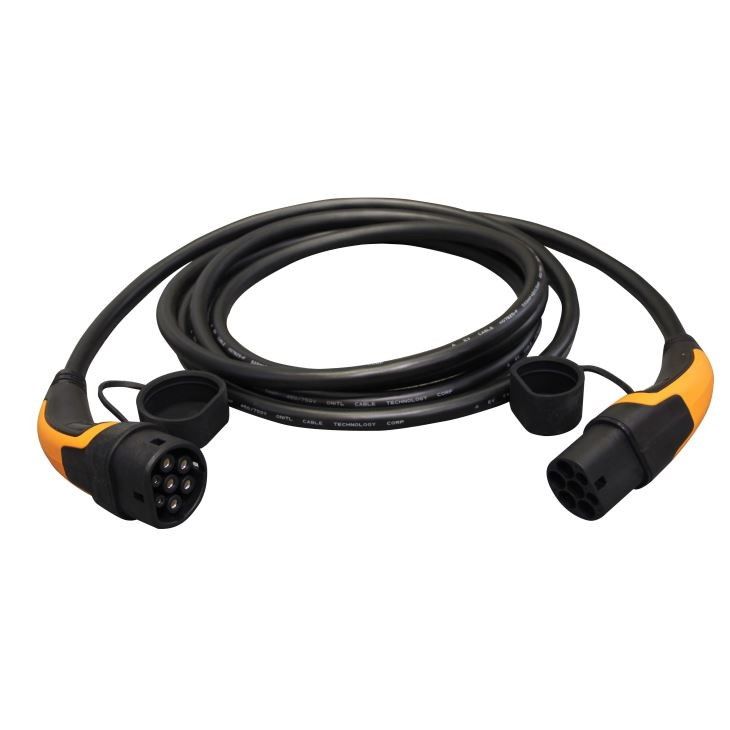

RoHs TUV CE Type 2 To Type 2 EV Charging Cable OEM Length Standard Grounding

Electric Vehicle Charging Type 2 EV Cables with TPU Materials RoHs TUV CE Type 2 to Type 2 EV Charging Cable



Product Features

  • The shell adopts riveting process without screws

  • Ergonomic design concept

  • Double-color design with customization

  • The internal waterproof design has passed the TUV IP55 waterproof grade test

  • The cable material is TPU(Conform to the Latest EN50620 standard)

  • Keep the laser LOGO space for customer

ProductModel:

ANSAG-T2-T2-32A

Product Type

Type 2 to Type 2 ev charging cable

Stardard:

IEC 62196-2

Rated Voltage:

AC480V

Rated Current:

32A

Working temperature:

-30℃ to +65℃

StorageTemperature:

-40℃ to +70℃

Terminal temperature rise:

<50K

Contact impedance:

0.5mMax

Certifications:

TUV CE

Warranty:

2 years

Mechanical life:

No-load plug in/pull out>10000 times

Insertion and Extration Force:

45N<F<100N

Impato fex ternal force:

Can afford 1m drop and 2T vehicle run over pressure



Part name

Material

Supplier

Cable

PUR (TPU)

HUNTSMAN: A85P4380

Shell of plug

PC+PBT

SABIC:V3900WX

Head of plug

PA66+GF25

DUPONT: FR50

RoHs TUV CE Type 2 To Type 2 EV Charging Cable OEM Length Standard Grounding 0

Our advantages

Our business scope includes charging pile equipment, wind power generation equipment, photovoltaic power generation equipment

and other products, providing targeted products and solutions for government public power, transportation service charging, and private
supporting power supply facilities.



We are not only got the certification of ISO9001 quality management system,ISO14001 environment system , OHSAS18001 occupational health and safetymanagement system,IATF 16949 management system but also though theSafety production standardization level 2,becoming a integration ofinformatization and industrialization pilot enterprise and standards implementationpilot enterprise,a national high-tech enterprise and well-known trademarks inChina.We have more than 20 invention patents and utility model patents and ourproducts have got TUV, CCC,CE, UL certification.



The business category including the equipment of charging pile,wind powergeneration and photovoltaic power genetation, ect.Provide targeted products andsolutions for government public power,transportation service charging andprivate power supply facilities.



ANS EVSE is the first supplier in China manufacturing and offering TPU cables(Thermoplastic polyurethanes) used on electric vehicle charging items. It is a special elastomer with a wide range of hardness and good elasticity.The TPU material from the charging cable generally refers to the polyether type TPU. The strength, hydrolysis resistance and low temperature performance of the polyether type TPU are superior.



  • Users can’t disassemble it by themselves, finished products with cable

  • Ergonomic design concept, beautiful appearance, Anti-slip material, excellent handhold experience, independent patent, Easy Plug

  • Free color matching, to meet the needs of different customers

  • Special internal waterproof treatment, the shell can effectively insulate water from the body and enhance the safety level

  • Cable material is TPU, the best material in the market at present, conforms to the the latest European Union standards, lighter and thinner, long time durability, low temperature resistance

  • Save time and cost, and reduce terminal user safety risks

  •
  • Better user experience

  • It is convenient for b-end customers to strengthen their brand image, and individual customers have more color choices

  • Internal physical waterproofing reduces potential safety hazards in bad weather or special circumstances

  • The application of TPU material is more competitive in the market, and can provide customers in low temperature or areas with better experience

  • It’s more convenient for customers to expand the market



Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
