| Brand Name: | ANS |
| Model Number: | ANS-PORTABLE-cable |
| MOQ: | 1 |
| Price: | USD135-170 |
| Delivery Time: | 20-30days |
| Payment Terms: | L/C,T/T,Western Union |

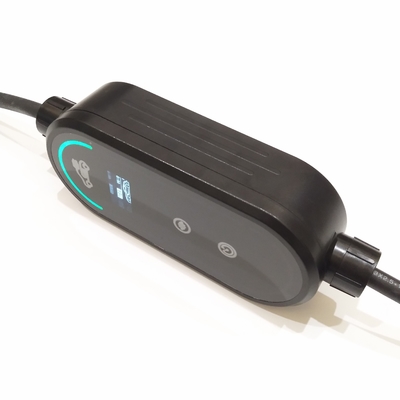

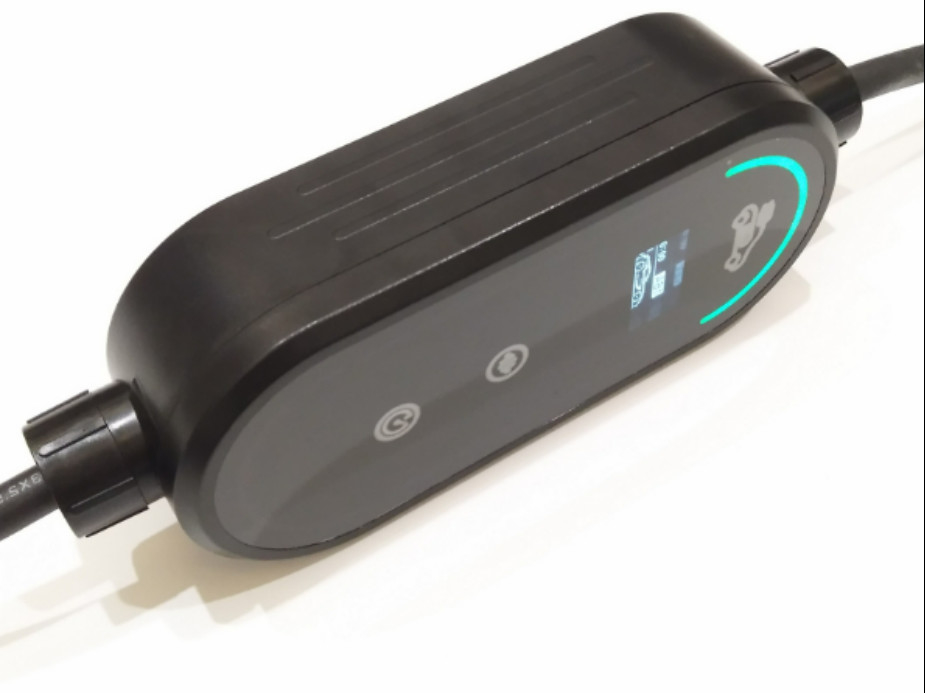

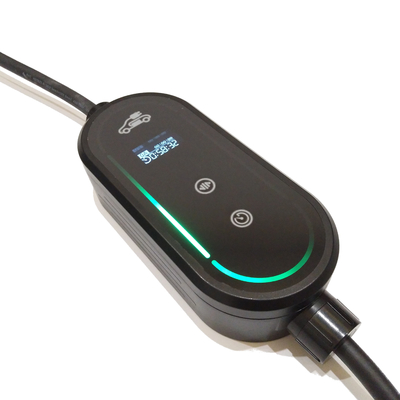

Portable electric car chargers let you top off your batteries wherever you are, even if you’re hundreds of miles from the nearest charging station.
1 Electric parameter | |
1.1 Rated Frequency | 50/60Hz |
1.2 Rated current | 6/8/10/13/16/32A |
1.3 Rated voltage | single/Thress phase, 230V±15%, 50/60Hz |
2 Technical Parameter | |
2.1 IP Code | IP67 |
2.2 Charging Adapter Cable | 5 meters cable or custom length |
2.3 Dimensions | W * D * H = 200 * 90* 52 mm |
2.4 Weight | <3kg |
2.5 Input Plug Standard | Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug |
3 Functional Description | |
3.1 Charging Control Model | Plug and play |

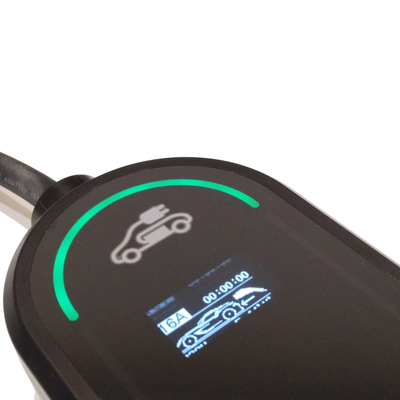

3.2 Display Screen(Optional) | OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.) |
3.3 Indicator Light | 4 LED indicators-Power/ Connection/ Charging/ Fault |
3.4 RCD type | Type A |
3.5 Adjustable output current | Button options: 8A/10A/13A/16/32A |
3.6 Preset function | Preset charging time trough the button |
3.7 Safety Protection | surge protection, over temperature, leakage, over/under voltage, over current, ground protection |
4 Environmental Conditions | |
4.1 Operational environment | indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases |
4.2 Vibration | <0.5G, no violent vibration and impact |
4.3 Altitude | ≤2000 meters |
4.4 Storage Temperature | -30 ~ 75 ℃ (-22 ~ 167 ℉) |
4.5 Operating Temperature | -30 ~ 55 ℃ (-22 ~ 131 ℉) |
4.6 Operating humidity | 95%RH, no water droplet condensation |
| No | Model | Rated voltage | Rated current | Power | Wall side plug |
| 1 | ANS-T1STP-16A | 110-240V AC | 16 Amp | 3.6kW | Schuko,AU 10A,AU15A ,blue CEE,red CEE.etc. |
| 2 | ANS-T2STP-16A | 110-400V AC | 16 Amp | 11kW | |
| 3 | ANS-T2STP-32A | 110V-240V AC | 32 Amp | 7kw |
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
A: FOB, CFR, CIF, DDU.
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
A: Yes, we have 100% test before delivery
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
![]()
![]()
![]()
![]()
![]()
![]()
