Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV/CE/UL/RoHS/REACH
Model Number: ANS-T2SP-16A
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD90-120
Packaging Details: Carton box. Carton size: 43*43*21cm
Delivery Time: 10-30days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 600pcs/day
Product Name: |
Portable Ev Charger 16A |
Cable Length: |
5M Or Customized |
Rated Current: |
6-16A Max |
Rated Power: |
3.6kW |
Rated Voltage: |
240V |
Operating Temperature: |
-30℃~+50℃ |
Waterproof Grade: |
IP55 |
Frequency: |
50Hz Or 60Hz |
Product Name: |
Portable Ev Charger 16A |
Cable Length: |
5M Or Customized |
Rated Current: |
6-16A Max |
Rated Power: |
3.6kW |
Rated Voltage: |
240V |
Operating Temperature: |
-30℃~+50℃ |
Waterproof Grade: |
IP55 |
Frequency: |
50Hz Or 60Hz |

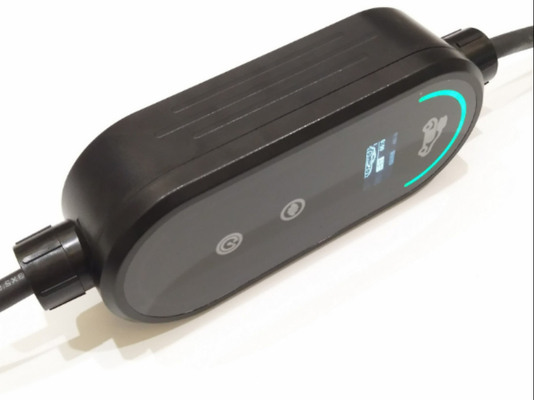

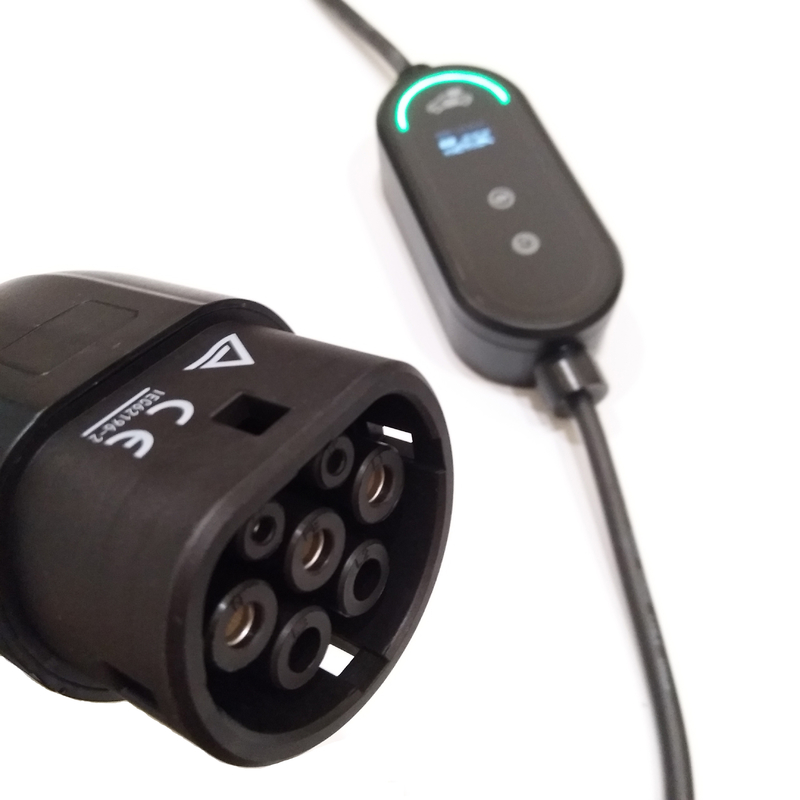

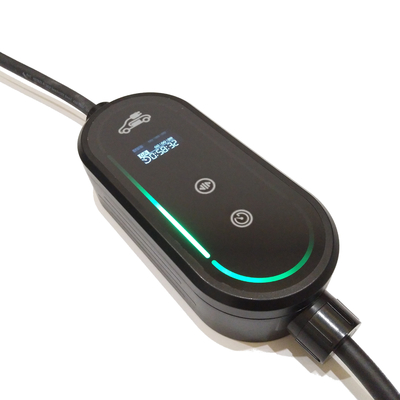

6A-16A adjustable type 2 portable ev charger
Specification:
|
Model Number |
ANS-T2SP-16A |
|
Install way |
Portable, plug in and charge |
|
Power Supply |
AC power supply socket |
|
Working Voltage |
110V-240V |
|
Working Current |
6A - 16A Max |
|
Frequency |
50Hz Or 60Hz |
|
Waterproof grade |
IP55 |
|
Operating Temperature |
-30℃~+50℃ |
|
Storage Temperature |
-40℃~+80℃ |
|
MTBF |
100,000 hours |
|
LED |
LED Light |
Condition |
|
Fault |
Off |
Normal |
|
Always-ON |
Short Circuit |
|
|
Flash Once |
Leakage Current Abnormal |
|
|
Flash Twice |
Input Connection Abnormal |
|
|
Flash three times |
Input Plug High Temperature |
|
|
Flash four times |
Over Current |
|
|
Flash 5 times |
CP Signal Abnormal |
|
|
Flash six times |
Control Box High Temperature |
|
|
Flash seven times |
CP Signal Duty Ratio Abnormal |
|
|
Ready/charge
|
On |
Charging |
|
Flash |
Connected But Not Charging |
|
|
Off |
Disconnected |
|
|
power
|
On |
Power Is Normal |
|
Flash |
Power Over Voltage |
|
|
Off |
Power Under Voltage |
|
|
12A
|
On |
Output Current:12A |
|
Flash |
Output Current:13A |
|
|
10A
|
On |
Output Current:10A |
|
Flash |
Output Current:11A |
|
|
8A
|
On |
Output Current:8A |
|
Flash |
Output Current:9A |
|
|
6A
|
On |
Output Current:6A |
|
Flash |
Output Current:7A |
|
|
8A & 6A
|
Both On at same time
|
Output Current:14A |
|
Both flash at the same time
|
Output Current:15A |
|
|
10A & 6A |
On |
Output Current:16A |
Step 1. Take out the charging cable and firmly insert the power plug into the outlet.
Step 2. Pull cap lightly, completely insert the charging connector into your vehicle's outlet.
Step 3. The device starts charging automatically while the READY/CHARGE, POWER is all bright green.
Step 4. The factory default current is 13A for schuko plug and 16A for blue CEE plug, please press the button of "CURRENT SETTING" if it is not the amp you want to use. The current increases 1A while pressing once. The current will start again from the minimum amp (6A) when your selection has reached its max limitation( Schuko plug 13A and blue CEE plug 16A). The device reproduces the last setting when we charge next time.
Step 1. Press the button and disconnect the charging connector from the vehicle inlet.
Step 2. Close vehicle protective cap put on the protective cap of charge connector.
Step 3. Disconnect the plug from the outlet.
Step 4. Pack up the charging cable and put it into the bag.
ANS EVSE, ensure the production of portable charging line is through strict quality inspection, within one year from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance.
Any user due to their improper handling, installation, use, and maintenance, secretly negligence or because of natural disasters, lead to products direct damage or cannot be used properly, are out of place in the product warranty.
This warranty does not include the freight returned to the factory maintenance.
The warranty is only valid to the original purchaser and is not transferable.
