electric vehicle chargers 32amp 3 Phase 22KW IEC 62196-2 type 2 ev charging coiled cable

Brand Name:	ANS
Model Number:	ANSAG-T2-T2-32A
MOQ:	1pcs
Price:	USD
Delivery Time:	20-30days
Payment Terms:	L/C, D/A, T/T, D/P, Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

TUV,CE,RoHs, REACH

Amps:

32A

Voltage:

480V

Charging Mode:

Mode 3 Ev Charging Cable

Connector Standard:

Type 2 To Type 2

Product Name:

Type 2 To Type 2 EV Charging Cable

Materials:

Huntsman

Plug Standard:

IEC 62196

Grounding:

Standard Grounding

Warranty:

24 Months

Phase:

3phase

Packaging Details:

standards export package

Supply Ability:

1000pcs one day

Highlight:

32amp ev charging coiled cable

3 Phase ev charging coiled cable

22KW ev charging coiled cable

Product Description

Electric vehicle chargers 32amp 3 Phase 22KW IEC 62196-2 type 2 ev charging coiled cable

Product Features

-Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
-Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
-Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
-Safe & Reliable. The cable is made of flame-retardant TPE (TPU) material, which can withstand the direct fire combustion within a safe time.
-Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.

ProductModel:	ANSAG-T2-T2-32A
Product Type	Type 2 to Type 2 ev charging cable
Stardard:	IEC 62196-2
Rated Voltage:	AC 480V
Rated Current:	32A
Withstanding voltage:	2000V
Working temperature:	-30℃ to +65℃
StorageTemperature:	-40℃ to +70℃
Terminal temperature rise:	<50K
Contact impedance:	0.5mMax
Protection level:	IP67
Certifications:	TUV CE
Warranty:	2 years
Plug Colour:	Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life:	No-load plug in/pull out>10000 times
Insertion and Extration Force:	45N<F<100N
Impato fex ternal force:	Can afford 1m drop and 2T vehicle run over pressure

Part name	Material	Supplier
Cable	PUR (TPU)	HUNTSMAN: A85P4380
Shell of plug	PC+PBT	SABIC:V3900WX
Head of plug	PA66+GF25	DUPONT: FR50

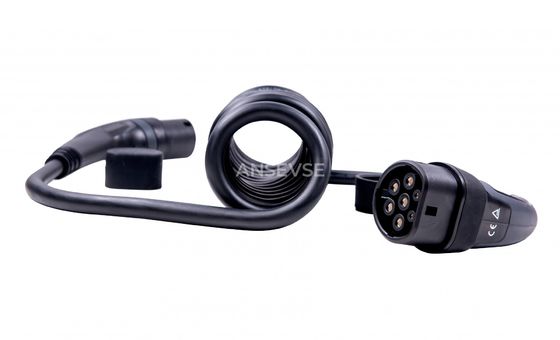

electric vehicle chargers 32amp 3 Phase 22KW IEC 62196-2 type 2 ev charging coiled cable 0

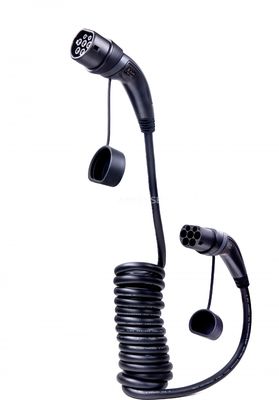

electric vehicle chargers 32amp 3 Phase 22KW IEC 62196-2 type 2 ev charging coiled cable 1

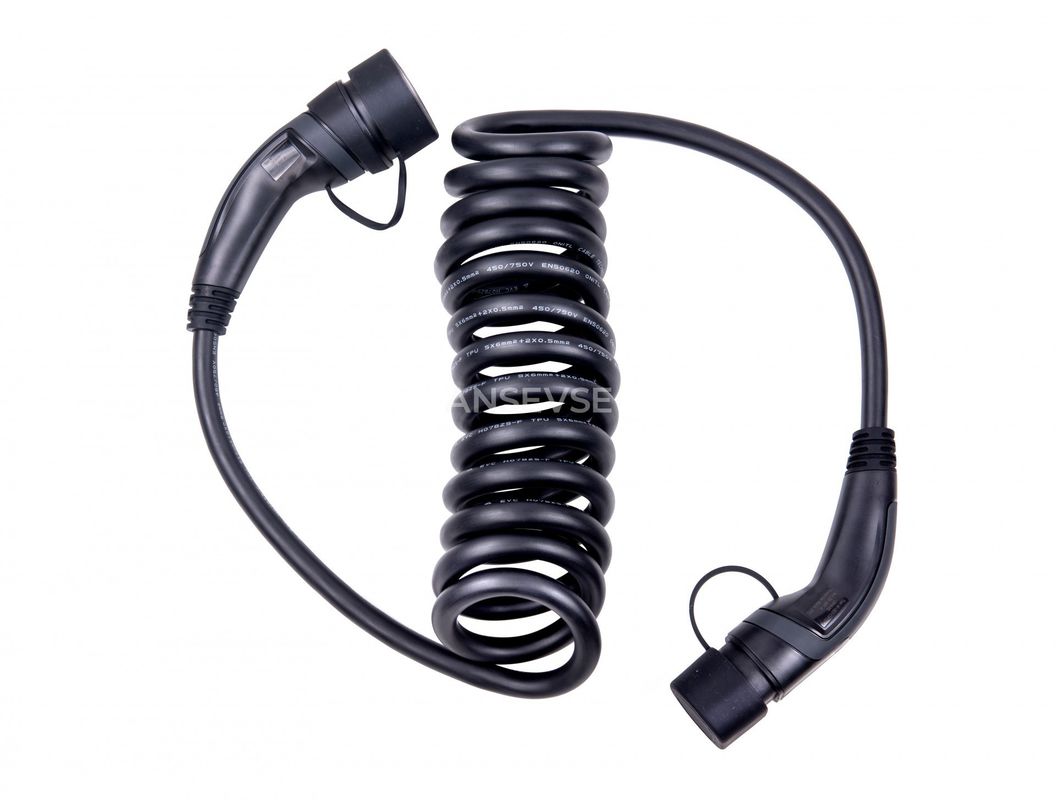

electric vehicle chargers 32amp 3 Phase 22KW IEC 62196-2 type 2 ev charging coiled cable 2

electric vehicle chargers 32amp 3 Phase 22KW IEC 62196-2 type 2 ev charging coiled cable 3

TPU Cables Characteristics

Using riveting pressure process with none screw ,have a beautiful appearance.Hand-held design conform to the ergonomic principle , plug conveniently
. XLPO for cable insulation prolonging the aging resistance life- -span,
TPU sheath improved the bending life and wear resistance of cable.
. Excellent protection performance, protection grade achieved IP55 (working condition).Adopted double color coating technology, personalized custom avariety of colors( Orange, blue, green,grey,white ) .

Mechanical Properties

. Mechanical life: no-load plug> 100000
. Ilmpact of external force: can afford 1m drop and 21 vehicle run over pressureInsertion force: < 100N

Applied Materials

Shell material: thermoplastics, flame retardant grade UL94- -0
Pin: copper alloy, silver-plate and use thermoplastic at the top

Electrical Performance

The rated current: 16A, 20A, 32A
The rated voltage : 250V, 480V
Insulation resistance: > 1000M?(DC500V). Pins temperature rise: : <50K
Withstand voltage: 2500V
Contact impedance: 0.5mQ Max
Environmental Performance
Operating temperature: 30 C~ +50 C

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

electric vehicle chargers 32amp 3 Phase 22KW IEC 62196-2 type 2 ev charging coiled cable 4

electric vehicle chargers 32amp 3 Phase 22KW IEC 62196-2 type 2 ev charging coiled cable 5
