Type 2 To Type 2 EV Charging Cable

electric car chargers 16A 480V 3 phase 11kW spiral cables IEC 62196 type 2 to type 2 ev coiled cables

All Category

Type 1 To Type 2 EV Charging Cable

Type 2 To Type 2 EV Charging Cable

EV DC Charging Station

Ms. Alice Wang

info@cn-ans.com

+8615881062591

Contact Now

electric car chargers 16A 480V 3 phase 11kW spiral cables IEC 62196 type 2 to type 2 ev coiled cables

Brand Name:	ANS
Model Number:	ANSAG-T2-T2-16A
MOQ:	1pcs
Price:	USD
Packaging Details:	standards export package
Payment Terms:	L/C, D/A, T/T, D/P, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV,CE,RoHs, REACH

Amps:

Voltage:

Charging Mode:

Mode 3 Ev Charging Cable

Connector Standard:

Type 2 To Type 2

Product Name:

Type 2 To Type 2 EV Charging Cable

Materials:

Huntsman

Plug Standard:

IEC 62196

Grounding:

Standard Grounding

Warranty:

24 Months

Phase:

3phase

Supply Ability:

1000pcs one day

Highlight:

IEC 62196 EV coiled cables

16A 480V EV coiled cables

3 phase 11kW EV coiled cables

Product Description

Electric car chargers 16A 480V 3 phase 11kW spiral cables IEC 62196 type 2 to type 2 ev coiled cables

Product Features

-Standard Connector, can be identified by EV (with Type 2 inlet) correctly and charge effectively.
-Rugged design. Its structural strength is sufficient enough to support the rolling of an electric car.
-Unique Arc Extinguishing technique makes sure that there won't have any electric sparks when plugging in and plugging out.
-Safe & Reliable. The cable is made of flame-retardant TPU material, which can withstand the direct fire combustion within a safe time.
-Durable. The advanced Crimping Technology ensures a working life of over 3000 times safe plugging in or out without any off-line error.

ProductModel:	ANSAG-T2-T2-16A
Product Type	Type 2 to Type 2 ev charging cable
Stardard:	IEC 62196-2
Rated Voltage:	AC 480V
Rated Current:	16A
Withstanding voltage:	2500V
Insulation resistance	> 1000MQ(DC500V)
Pins temperature rise	<50K
Protection level:	IP67
Certifications:	TUV CE
Warranty:	2 years
Plug Colour:	Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life:	No-load plug in/pull out>10000 times
Insertion and Extration Force:	45N<F<100N
Impato fex ternal force:	Can afford 1m drop and 2T vehicle run over pressure

Part name	Material	Supplier
Cable	PUR (TPU)	HUNTSMAN: A85P4380
Shell of plug	PC+PBT	SABIC:V3900WX
Head of plug	PA66+GF25	DUPONT: FR50

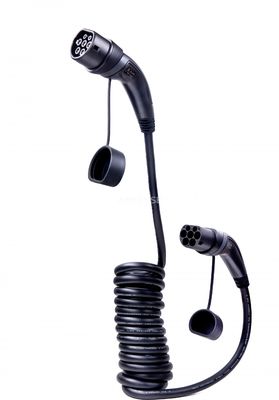

electric car chargers 16A 480V 3 phase 11kW spiral cables IEC 62196 type 2 to type 2 ev coiled cables 0

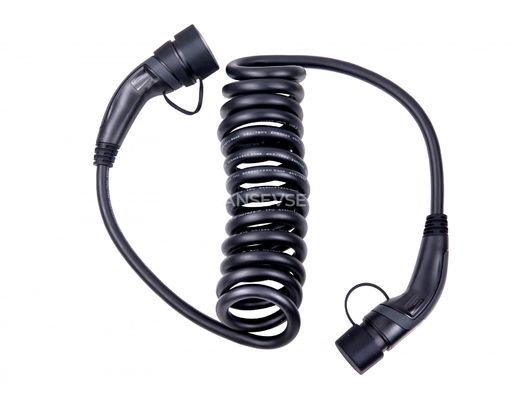

electric car chargers 16A 480V 3 phase 11kW spiral cables IEC 62196 type 2 to type 2 ev coiled cables 1

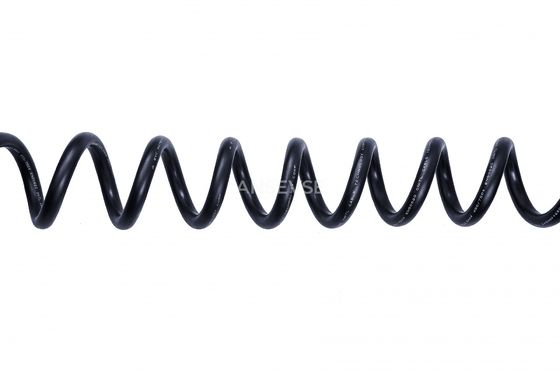

electric car chargers 16A 480V 3 phase 11kW spiral cables IEC 62196 type 2 to type 2 ev coiled cables 2

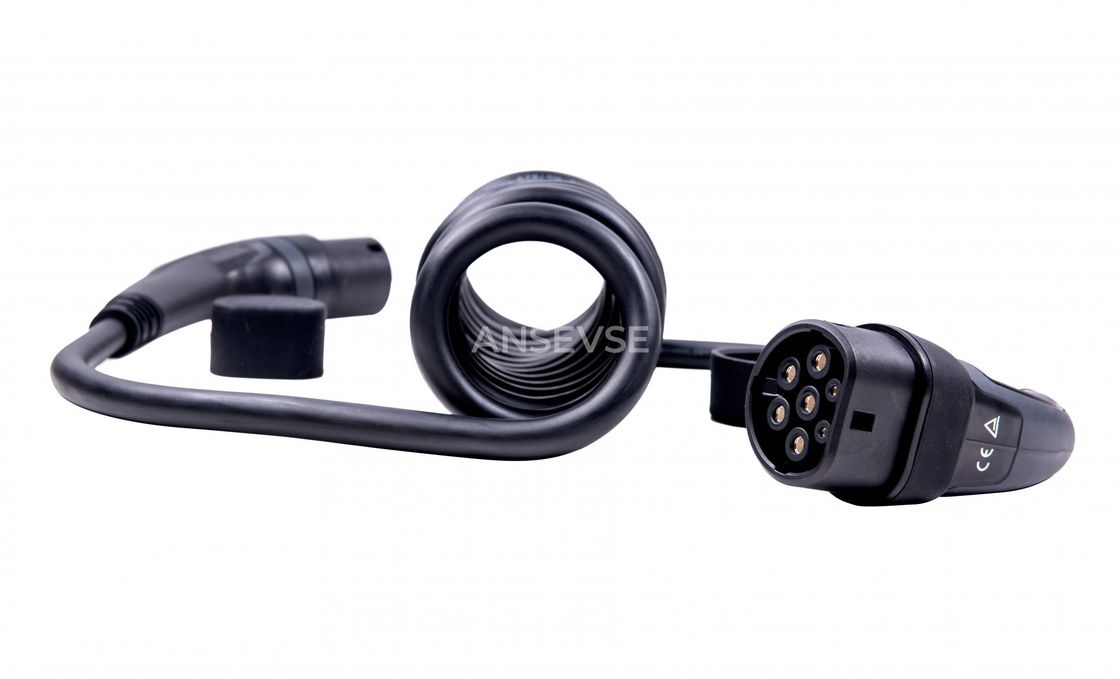

electric car chargers 16A 480V 3 phase 11kW spiral cables IEC 62196 type 2 to type 2 ev coiled cables 3

Advantage

Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )

Applied Materials

Shell material: thermoplastics, flame retardant grade UL94-0
Operating temperature: -30°C~ +50°C
Pin: copper alloy, silver-plate and use thermoplastic at the top

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

electric car chargers 16A 480V 3 phase 11kW spiral cables IEC 62196 type 2 to type 2 ev coiled cables 4
