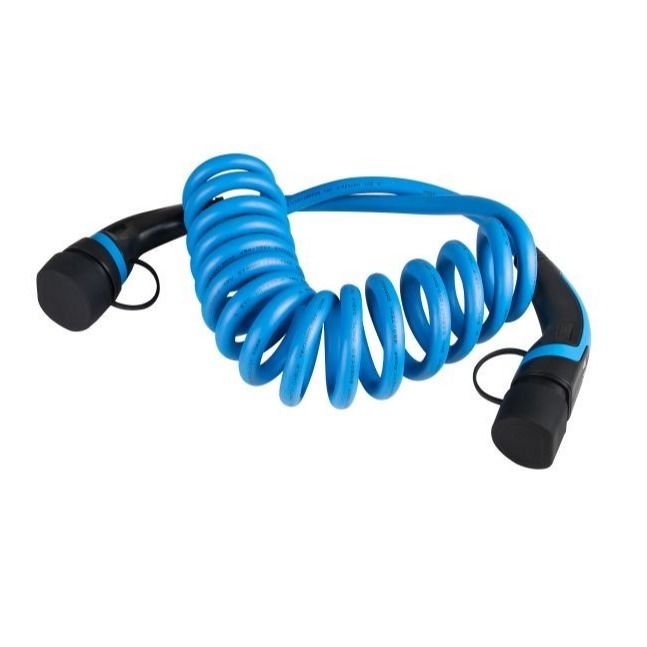

50Hz 7kW Type 2 To Type 2 EV Charging Cable With 5m Coiled Cable

Product Details

Place of Origin: china

Brand Name: ANS

Certification: TUV

Model Number: ANSAG-T2-T2-32-ST

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: 15.7*15*3.15(in)

Delivery Time: 20-30days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100000PCS/month

Get Best Price
Highlight:

50Hz Type 2 To Type 2 EV Charging Cable

,

8W Type 2 To Type 2 EV Charging Cable

,

50Hz Type 2 To Type 2 EV Cable

Product Name:
Type 2 To Type 2 EV Charging Cable
Brand:
ANS
Color:
Blue
Material:
TPU
Rated Current::
32A
Stardard:
IEC 62196-2
Protection Level::
IP67
Warranty:
2years
Certifications::
TUV
Product Name:
Type 2 To Type 2 EV Charging Cable
Brand:
ANS
Color:
Blue
Material:
TPU
Rated Current::
32A
Stardard:
IEC 62196-2
Protection Level::
IP67
Warranty:
2years
Certifications::
TUV
50Hz 7kW Type 2 To Type 2 EV Charging Cable With 5m Coiled Cable

1 phase 32A Blue EV charging cable Type 2 to Type 2 EV charging Cable with 5m coiled cable





Product Description



Input & Output

Input voltage/Output voltage

100~250V AC

Max. output current

32A 1Phase

Input frequency

47~63Hz 50/60Hz

Charging interface type

Type 2-2

Max. output power

7KW





Function and Accessory

Ethernet/WIFI/4G/Bluetooth

No

Cable gauge

3*6mm2 +2*0.5mm2

Plug type

Type 2-Type2 male&female

Plug material

Thermoplastics

Length

5 meters

Cable material

TPU

Working environment

Waterproof Protection degree

IP67

Maximum altitude

<2000m

Environment temperature

-40℃ ~ +50℃

Cooling

Natural air cooling

Relative humidity

0-95% non-condensing

Standby power consumpiton

<8W

Package

Dimension (W/H/D)

40/38/8cm

Weight

4KG

Certificate

CE, TUV,





Product Detail

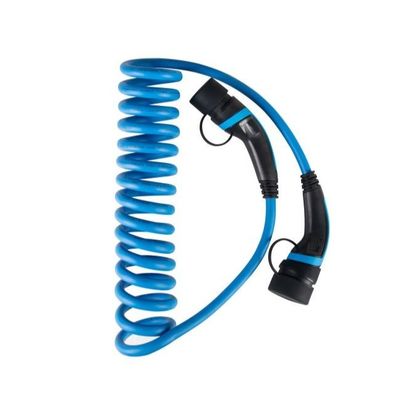

50Hz 7kW Type 2 To Type 2 EV Charging Cable With 5m Coiled Cable 0



Product Specification and Cable Standard
Product Type
Rated Current/ voltage
Cable Specifications
M-IEC2-lie-16p
16A/250V
H07BZ5-F3X2.5mm²+2x0.5mm²
M-IEC2-lie-16p-3
16A/480V
H07BZ5-F3X2.5mm²+2x0.5mm²
M-IEC2-lie-32p
32A/250V
H07BZ5-F3X6mm²+2x0.5mm²
M-IEC2-lie-32p-3
32A/480V
H07BZ5-F5X6mm²+2x0.5mm²



Feature of Type2-Type 2 Ev Charging Cables



1.Conform to the provisions and requirements of 1EC 62196-2-2016 2-l.



2. Using riveting pressure process with none screw , have a beautiful apprearance.Hand-held design conform to the ergonomic principle , plug conveniently.

3.XLPO for cable insulation prolonging the aging resistance life - span , TPU shenth improved the bending life and wear resistance

of cable.



4.Excellent protection performance,prodection grade achieved IP55( working condition).

5.Applied double color coating technology ,personalized custom a variety of colors.





50Hz 7kW Type 2 To Type 2 EV Charging Cable With 5m Coiled Cable 1
