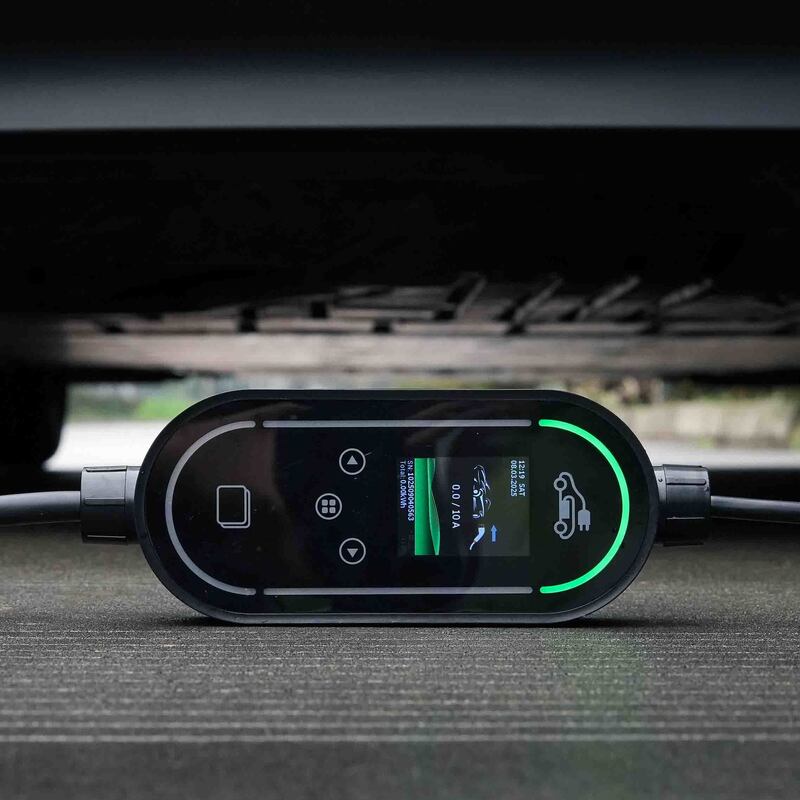

Portable 11kW EV Charger

Product Description

Model Number Definition

Specifications

Key Features

Universal Compatibility

Supports Type 1 (SAE J1772), Type 2 (IEC62196-2), and Type GB (GB/T20234) connectors.

Works with 1-phase (110-230V) and 3-phase (400V) power sources.

Powerful & Flexible
4 Models: 3.7kW (16A), 7.4kW (32A), 9.6kW (40A), 11kW (16A 3-phase).
Adjustable Current: Optimize charging speed based on your power supply.
Delay Charging: Schedule charging via intuitive touch controls.


Robust Safety Protections:

7-Layer Safety System: Over/under voltage, short circuit, leakage, overload, overtemperature, lightning, and RCD Type B protection.

IP67 Rated: Fully dustproof and waterproof for all-weather use.

Temperature Monitoring (Optional): Auto-pauses charging if plug overheats (>95°C) and resumes when cooled.



Smart User Experience:
1.3-inch OLED Display: Real-time stats (voltage, current, kWh, charging time).
RGB LED Indicators: Visual status alerts (standby, charging, faults).
Touch Controls: Simple setup for current/delay settings.


What's in the Box (Basic Version):
1. EVA Portable Charger with Cable 5M Connector Type 2 ×1
2. User Manual ×1
3. Hanger with holder + Packing bag(Optional)
