Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV,CE,RoHs, REACH
Model Number: ANSAG-T2-T2-32A
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD
Packaging Details: standards export package
Delivery Time: 20-30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union
Supply Ability: 1000pcs one day
Product Name: |
22kW AC Charging Cables |
Amps: |
32A |
Voltage: |
480V |
Charging Mode: |
Mode 3 Type 2 To Type 2 Cables |
Length: |
5M |
Materials: |
HUNTSMAN, SABIC, DUPONT |
Plug Standard: |
IEC 62196 |
Cable Size: |
5*6+2*0.5mm2 |
Warranty: |
2 Years |
OEM: |
Support Customization |
Product Name: |
22kW AC Charging Cables |
Amps: |
32A |
Voltage: |
480V |
Charging Mode: |
Mode 3 Type 2 To Type 2 Cables |
Length: |
5M |
Materials: |
HUNTSMAN, SABIC, DUPONT |
Plug Standard: |
IEC 62196 |
Cable Size: |
5*6+2*0.5mm2 |
Warranty: |
2 Years |
OEM: |
Support Customization |

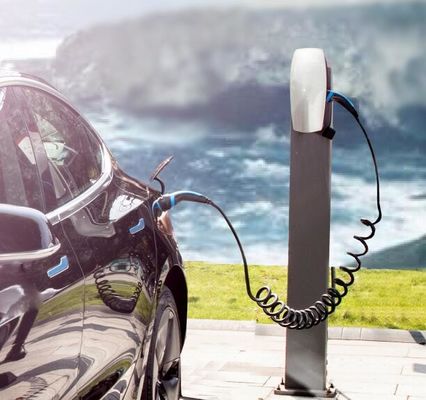

Type 2 to Type 2 EV Charging Coiled Cables Spiral EV Connector 32A 480V 22kW AC Charging Cables
Product Features
| Electrical Performance | |||
| The rated current | 32A | The rated voltage | 480V |
| Insulation resistance | > 1000MΩ (DC500V) | Pins temperature rise | <50K |
| Withstand voltage | 2500V | Contact impedance |
0.5mΩ Max |
|
Mechanical Properties |
|||
|
Mechanical life |
no-load plug> 10000 |
Insertion force: |
<100N |
|
Impact of external force |
can afford 1m drop and 2t vehicle run over pressure |
||
|
Part name |
Material |
Supplier |
|
Cable |
PUR (TPU) |
HUNTSMAN: A85P4380 |
|
Shell of plug |
PC+PBT |
SABIC:V3900WX |
|
Head of plug |
PA66+GF25 |
DUPONT: FR50 |

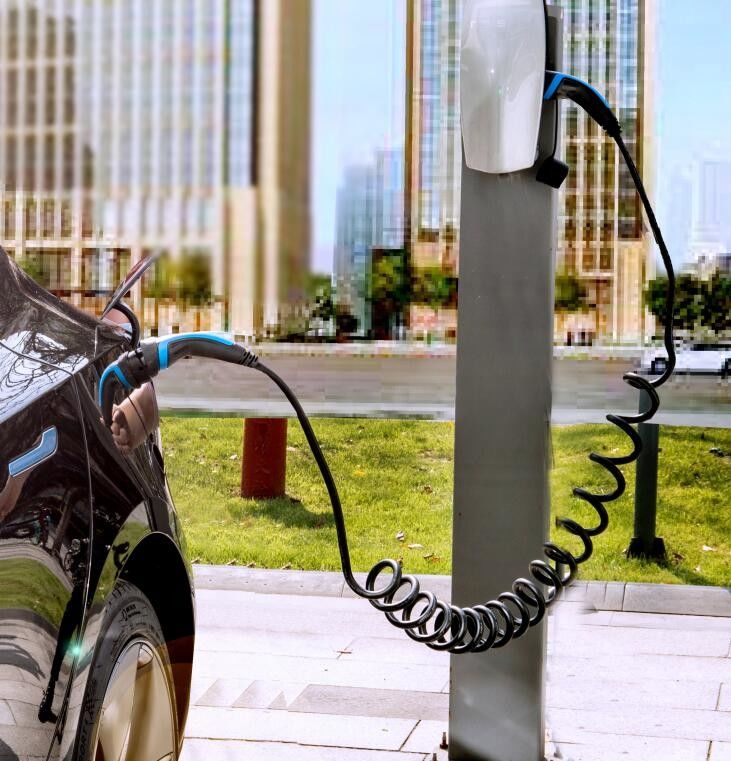

Application Case
About US
We not only got the certification of ISO9001 quality management system,ISO14001 environment system , OHSAS18001 occupational health and safetymanagement system,IATF 16949 management system but also though the Safety production standardization level 2,becoming a integration ofinformatization and industrialization pilot enterprise and standards implementationpilot enterprise,a national high-tech enterprise and well-known trademarks in China.We have more than 20 invention patents and utility model patents and ourproducts have got TUV, CCC, CE, UL certification.
The business category including the equipment of charging pile,wind powergeneration and photovoltaic power genetation, ect.Provide targeted products andsolutions for government public power,transportation service charging andprivate power supply facilities.
SGS approved
our cables cooper part and terminal contact are SGS approved, it meet IEC 62321-4:2013+AMD1:2017, IEC62321-5:2013 and 62321-7-1:2015 standards, RoHs EU 2015/863.
EV Charging Cables Specification,Plastic part,TPU materials
The charging plugs and cables plastic part is TPU that come from imported HUNTSMAN,Sabric, They all pasted CE,ROHS and friendly to people and environmental. Being responsible to our output and the environment is being trustworthy to our clients. Besides, we never forget our intention of making reliable products from the start. Hence, we are committed to utilizing green materials made to reduce carbon footprint, environmental contamination, or negative health effects.
TPU sheath
The TPU cable itself has adopted environmental raw materials and totally halogen free. It won’t release any harmful smell or gas even under burning.The halogen free cable can effectively prevent itself from burning in large area.
Why need Halogen-free?
When a fire unfortunately occurs, many people are not burnt to death, but basically smoked to death. Low smoke is emphasised by not producing large amounts of smoke, and halogen-free is the cable does not add substances such as chlorine and fluorine, which are chemical substances that give off toxic gases when burning and are toxic to the human body and are mainly considered to protect the personal safety of people.
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
