32A 10m Type 2 EV Charging Cable IEC 62196 Electric Vehicle Connectors

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV,CE,RoHs, REACH

Model Number: ANSAG-T2-T2-32A

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD

Packaging Details: standards export package

Delivery Time: 20-30days

Payment Terms: L/C, D/A, T/T, D/P, Western Union

Supply Ability: 1000pcs one day

Get Best Price
Highlight:

10m Type 2 EV Charging Cable

,

32A Type 2 EV Charging Cable

,

IEC 62196 Electric Vehicle Connectors

Product Name:
Type 2 EV Charging Cable
Amps:
32A
Charging Mode:
Mode 3 Type 2 To Type 2
Voltage:
250V
Length:
10M
Materials:
HUNTSMAN, SABIC, DUPONT
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
2 Years
OEM:
Support Customization
Product Name:
Type 2 EV Charging Cable
Amps:
32A
Charging Mode:
Mode 3 Type 2 To Type 2
Voltage:
250V
Length:
10M
Materials:
HUNTSMAN, SABIC, DUPONT
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
2 Years
OEM:
Support Customization
32A 10m Type 2 EV Charging Cable IEC 62196 Electric Vehicle Connectors

IEC 62196 Type 2 Cables EVSE Car Charger Waterproof IP55 EV Connectors Type 2 To Type 2 EV Charging Cable



Product Features

Mechanical Properties

Mechanical life

no-load plug> 10000

Insertion force:

<100N

Impact of external force

can afford 1m drop and 2t vehicle run over pressure



Electrical Performance

The rated current

16A,20A,32A

The rated voltage

120V,250V

Insulation resistance

> 1000MΩ (DC500V)

Pins temperature rise

<50K

Withstand voltage

2500V

Contact impedance

0.5mΩ Max



Part name

Material

Supplier

Cable

PUR (TPU)

HUNTSMAN: A85P4380

Shell of plug

PC+PBT

SABIC:V3900WX

Head of plug

PA66+GF25

DUPONT: FR50



  • The shell adopts riveting process without screws

  • Ergonomic design concept

  • Double-color design with customization

  • The internal waterproof design has passed the TUV IP55 waterproof grade test

  • The cable material is TPU(Conform to the Latest EN50620 standard)

  • Keep the laser LOGO space for customer

  • Users can’t disassemble it by themselves, finished products with cable

  • Ergonomic design concept, beautiful appearance, Anti-slip material, excellent handhold experience, independent patent, Easy Plug

  • Free color matching, to meet the needs of different customers

  • Special internal waterproof treatment, the shell can effectively insulate water from the body and enhance the safety level

  • Cable material is TPU, the best material in the market at present, conforms to the the latest European Union standards, lighter and thinner, long time durability, low temperature resistance

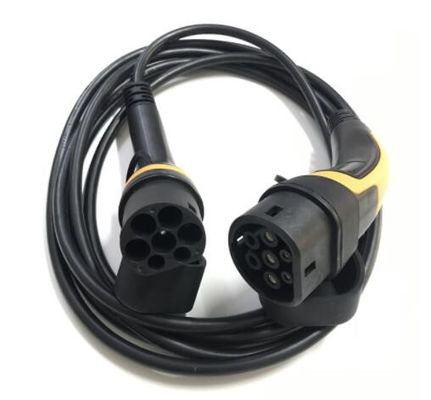

32A 10m Type 2 EV Charging Cable IEC 62196 Electric Vehicle Connectors 0

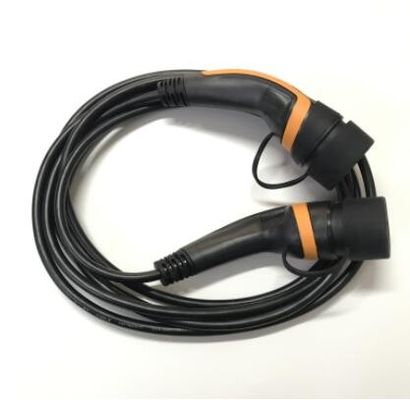

32A 10m Type 2 EV Charging Cable IEC 62196 Electric Vehicle Connectors 1



About US

We not only got the certification of ISO9001 quality management system,ISO14001 environment system , OHSAS18001 occupational health and safetymanagement system,IATF 16949 management system but also though the Safety production standardization level 2,becoming a integration ofinformatization and industrialization pilot enterprise and standards implementationpilot enterprise,a national high-tech enterprise and well-known trademarks in China.We have more than 20 invention patents and utility model patents and ourproducts have got TUV, CCC, CE, UL certification.



The business category including the equipment of charging pile,wind powergeneration and photovoltaic power genetation, ect.Provide targeted products andsolutions for government public power,transportation service charging andprivate power supply facilities.



SGS approved

our cables cooper part and terminal contact are SGS approved, it meet IEC 62321-4:2013+AMD1:2017, IEC62321-5:2013 and 62321-7-1:2015 standards, RoHs EU 2015/863.

High Pure copper materials

  • We use 99.95% high purity purple copper to ensure the best possible performance of our cables

  • High pure copper core wire guarantees the life cycle of the cable

  • Poor quality copper conductors, copper core is recycled copper and containing many impurities, poor electrical conductivity makes it very likely to cause electrical accidents. High-quality copper conductors, copper cores made of high-purity purple copper, the outer layer is bright and slightly soft.



EV Charging Cables Specification,Plastic part,TPU materials

The charging plugs and cables plastic part is TPU that come from imported HUNTSMAN,Sabric, They all pasted CE,ROHS and friendly to people and environmental. Being responsible to our output and the environment is being trustworthy to our clients. Besides, we never forget our intention of making reliable products from the start. Hence, we are committed to utilizing green materials made to reduce carbon footprint, environmental contamination, or negative health effects.



TPU sheath

The TPU cable itself has adopted environmental raw materials and totally halogen free. It won’t release any harmful smell or gas even under burning.The halogen free cable can effectively prevent itself from burning in large area.



Cables Characteristics

  • This cable is used for charging equipment for electric vehicles and charding port,orfor control systerms of charging saturation,safety warning and other control signaltransfer function of the vehicle charging and discharging

  • Flex Resistance

  • Anti-EMI

  • Zero HalogenOil Resistance

  • Abrasion ResistanceLow-speed Charging

  • EN 50620

  • -40~+90℃ RoHS TUV CE



Why need Halogen-free?

When a fire unfortunately occurs, many people are not burnt to death, but basically smoked to death. Low smoke is emphasised by not producing large amounts of smoke, and halogen-free is the cable does not add substances such as chlorine and fluorine, which are chemical substances that give off toxic gases when burning and are toxic to the human body and are mainly considered to protect the personal safety of people.

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

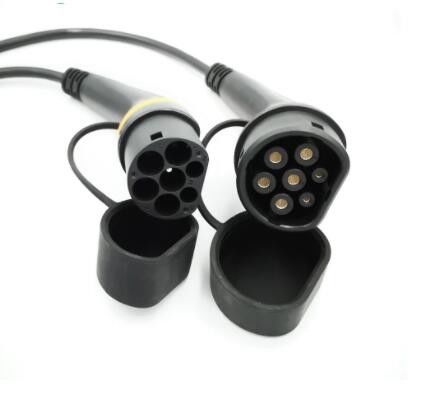

32A 10m Type 2 EV Charging Cable IEC 62196 Electric Vehicle Connectors 2
