Home > products > Type 2 To Type 2 EV Charging Cable > 16A 480V EV Charging Cable IEC 62196 Type 2 Connector European Standard

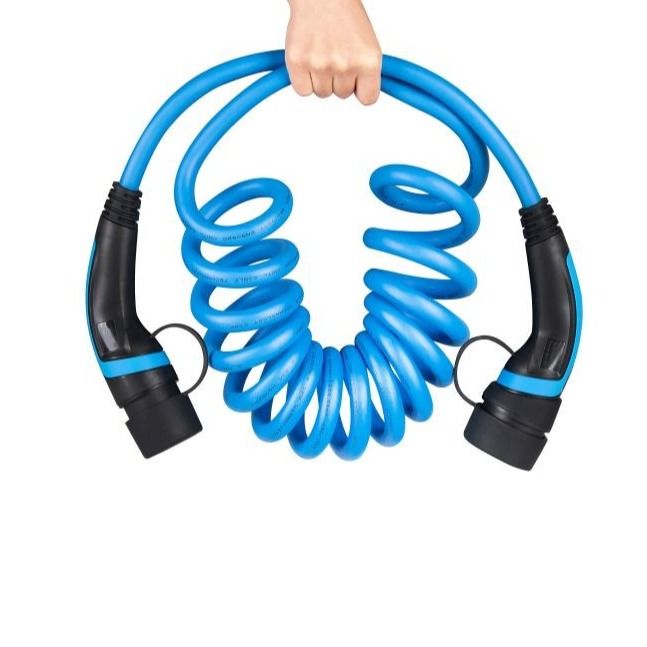

16A 480V EV Charging Cable IEC 62196 Type 2 Connector European Standard

Product Details

Place of Origin: china

Brand Name: ANS

Certification: TUV

Model Number: ANSAG-T2-T2-16-ST

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: 15.7*15*3.15(in)

Delivery Time: 20-30days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100000PCS/month

Get Best Price
Highlight:

48V EV Charging Cable

,

16A EV Charging Cable

,

IEC 62196 Type 2 Connector

Product Name:
16A/480 V European Standard Charging Station Wallbox Plug Type2 To Type2 EV Charging Cable
Brand:
ANS
Material:
TPU
Color:
Blue
Rated Current::
16A
Stardard:
IEC 62196-2
Protection Level::
IP67
Warranty:
2years
Certifications::
TUV
Product Name:
16A/480 V European Standard Charging Station Wallbox Plug Type2 To Type2 EV Charging Cable
Brand:
ANS
Material:
TPU
Color:
Blue
Rated Current::
16A
Stardard:
IEC 62196-2
Protection Level::
IP67
Warranty:
2years
Certifications::
TUV
16A 480V EV Charging Cable IEC 62196 Type 2 Connector European Standard

16A/480 V European Standard charging station Wallbox plug Type2 to Type2 EV Charging Cable







Product Description



Input & Output

Input voltage/Output voltage

100~250V AC

Max. output current

16A 1Phase

Input frequency

47~63Hz

Charging interface type

Type 2-2

Max. output power

22KW





Protection

Over voltage protection

yes

Earth leakage protection

yes

Under voltage protection

yes

Over-temp protection

yes

Over load protection

yes

Lightning protection

yes

Short circuit protection

yes





Function and Accessory

Ethernet/WIFI/4G/Bluetooth

No

Cable gauge

5*2.5mm+2*0.5mm2

Plug type

Type 2-Type2 male&female

Plug material

Thermoplastics

Length

5 meters

Cable material

TPU

Working environment

Waterproof Protection degree

IP67

Maximum altitude

<2000m

Environment temperature

-40℃ ~ +50℃

Cooling

Natural air cooling

Relative humidity

0-95% non-condensing

Standby power consumpiton

<8W

Package

Dimension (W/H/D)

40/38/8cm

Weight

4KG

Certificate

CE, TUV,





Product Detail

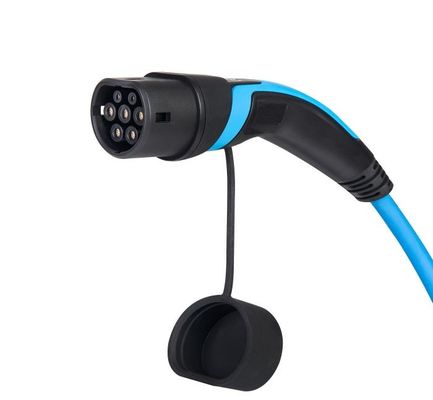

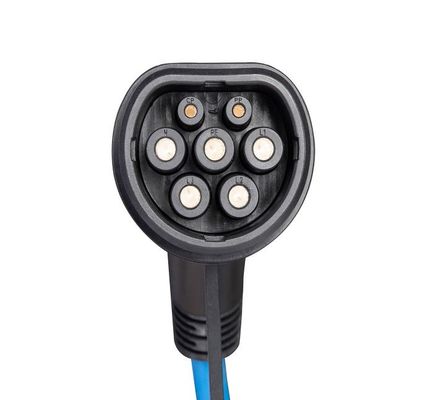

Feature of Type2-Type 2 Ev Charging Cables



1.Conform to the provisions and requirements of 1EC 62196-2-2016 2-lie.



2. Using riveting pressure process with none screw , have a beautiful apprearance.Hand-held design conform to the ergonomic principle , plug conveniently.

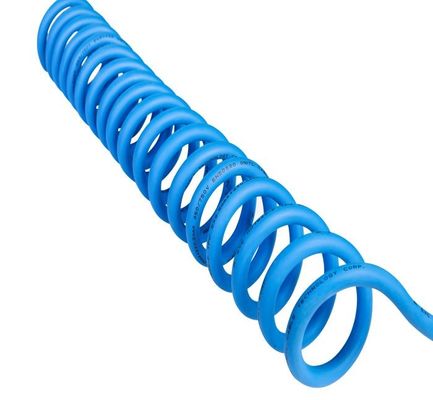

3.XLPO for cable insulation prolonging the aging resistance life - span , TPU shenth improved the bending life and wear resistance

of cable.



4.Excellent protection performance,prodection grade achieved IP55( working condition).

5.Applied double color coating technology ,personalized custom a variety of colors.





16A 480V EV Charging Cable IEC 62196 Type 2 Connector European Standard 0









FAQ



Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
