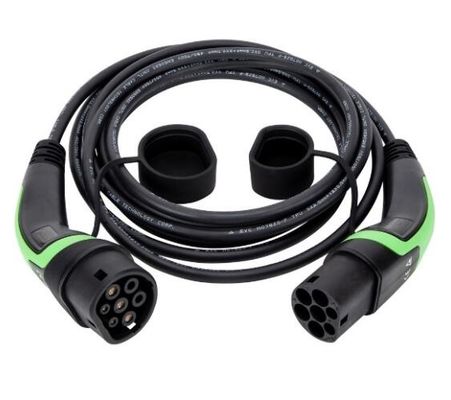

32A 250V 7kW Type 2 To Type 2 EV Charging Cable Standard Grounding

Product Details

Place of Origin: China

Brand Name: ANS

Certification: TUV,CE,RoHs, REACH

Model Number: ANSAG-T2-T2-32A

Payment & Shipping Terms

Minimum Order Quantity: 1pcs

Price: USD

Packaging Details: standards export package

Delivery Time: 20-30days

Payment Terms: L/C, D/A, T/T, D/P, Western Union

Supply Ability: 1000pcs one day

Get Best Price
Highlight:

7kW Type 2 To Type 2 EV Charging Cable

,

250V Type 2 To Type 2 EV Charging Cable

,

Standard Grounding 7kw EV Charger

Product Name:
Type 2 To Type 2 EV Charging Cables
Amps:
32A
Charging Mode:
Standard Grounding
Voltage:
250V
Length:
5M
Materials:
Huntsman
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
24 Months
Phase:
1phase
Product Name:
Type 2 To Type 2 EV Charging Cables
Amps:
32A
Charging Mode:
Standard Grounding
Voltage:
250V
Length:
5M
Materials:
Huntsman
Plug Standard:
IEC 62196
Grounding:
Standard Grounding
Warranty:
24 Months
Phase:
1phase
32A 250V 7kW Type 2 To Type 2 EV Charging Cable Standard Grounding

32A 250V 7kW EV Charging Plugs TPU Materials Halogen Free Cables Type 2 to Type 2 EV Charging Cables

Product Features

  • Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
  • Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
  • XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
  • Excellent protection performance, protection grade achieved IP55 ( working condition )
  • Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )

​Applied Materials

Shell material: thermoplastics, flame retardant grade UL94-0

Operating temperature: -30°C~ +50°C



ProductModel: ANSAG-T2-T2-32A
Product Type Type 2 to Type 2 ev charging cable
Stardard: IEC 62196-2
Rated Voltage: AC250V

Rated Current:

32A
Working temperature: -30℃ to +65℃
StorageTemperature: -40℃ to +70℃
Terminal temperature rise: <50K
Contact impedance: 0.5mMax

Certifications:

TUV CE
Warranty: 2 years
Mechanical life: No-load plug in/pull out>10000 times
Insertion and Extration Force: 45N<F<100N

Impato fex ternal force:

Can afford 1m drop and 2T vehicle run over pressure



Part name Material Supplier
Cable PUR (TPU) HUNTSMAN: A85P4380
Shell of plug PC+PBT SABIC:V3900WX
Head of plug PA66+GF25 DUPONT: FR50

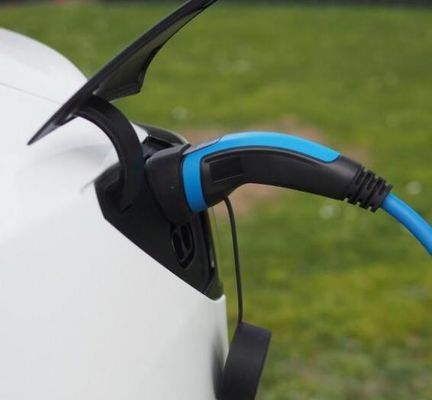

32A 250V 7kW Type 2 To Type 2 EV Charging Cable Standard Grounding 0
Our advantages

Our business scope includes charging pile equipment, wind power generation equipment, photovoltaic power generation equipment

and other products, providing targeted products and solutions for government public power, transportation service charging, and private
supporting power supply facilities.




All the products are produced in strict accordance with CQC standards, and obtained CCC, TUV, UL and other certifications.
We adhere to the development concept of high efficiency, energy saving and environmental protection. With independent innovation and customer service as the foundation; market-oriented, quality of survival. We firmly believe that ANS EVSE will surely set sail and create brilliance!





ANS EVSE is the first supplier in China manufacturing and offering TPU cables(Thermoplastic polyurethanes) used on electric vehicle charging items. It is a special elastomer with a wide range of hardness and good elasticity.The TPU material from the charging cable generally refers to the polyether type TPU. The strength, hydrolysis resistance and low temperature performance of the polyether type TPU are superior.



  • Wide range of products from AC to DC,total around 55 categories
  • Advanced tech and the first TPU ev cable supplier
  • Different color selection of plugs without MOQ--aound 6 differnet
  • colors now as standard
  • OEM service--print your own logo and make your own
  • color for the charging items
  • High competitive price comparing to other products on the market
  • All charging prudcts are with CE/TUV/UL listed. ISO etc.Total 16certifications
  • High quality of raw materials from Huntsman,Sabic,Dupont
  • Product quality is widely aprroved by many car and charger factories as well, like JAC,BYD
  • China, and Haima New energy etc.
  • 2years warranty, life-time tech support
  • High comment.We Have won around 688 positive feedbacks from customers
  • Professional and efficient sales team offering you one stop charging solution for your business
  • OEM service--Always making any samples meeting customers’ requirements. we can produce
  • by your samples or technical drawings and can build the molds and fixtures.
  • Fast delivery--We will send out your order usually within 7days for samples



Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

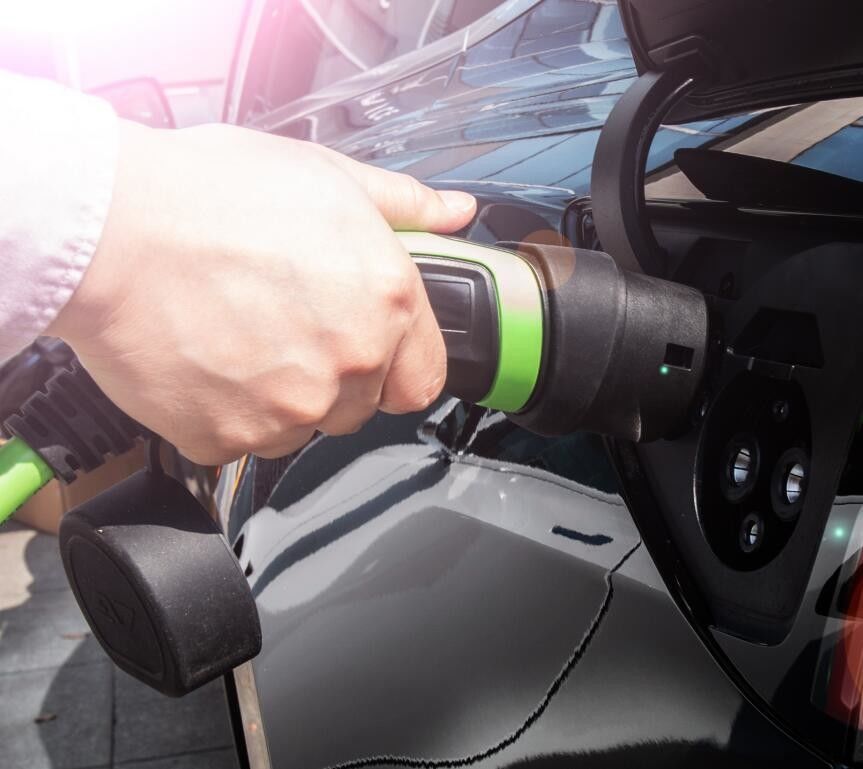

32A 250V 7kW Type 2 To Type 2 EV Charging Cable Standard Grounding 1
