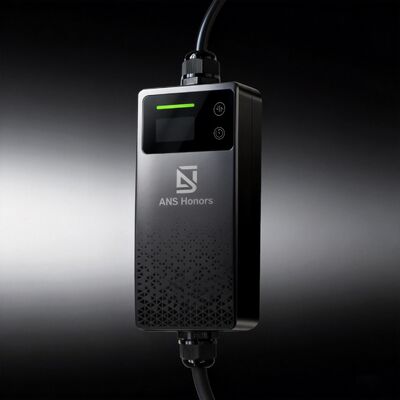

Adjustable Current Portable EV Charger with Touch Control and IP67 Rated Enclosure

Brand Name:	ANS
Model Number:	EVX03B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Document:

Product Name:

Adjustable Current EV Charging Cable

Input/Output Voltage:

AC 110V/230V

Key Feature:

Feature:

Adjustable Current

Certification:

CE,RoHS

Power:

3.7kw

Supply Ability:

100000PCS/month

Highlight:

Adjustable Current Portable EV Charger

Touch Control EV Charging Cable

IP67 Rated Electric Vehicle Charger

Product Description

Product Overview

This adjustable current EV charging cable offers flexible charging control for various power environments. Based on the EVX03B architecture, it allows users to select charging current between 6A and 16A through touch-button operation before starting the charging process.

The LCD screen clearly displays selected current, voltage, charging power, energy consumption, and charging time. This flexibility makes it suitable for households with limited circuit capacity.

The integrated IC-CPD module provides protection against over-voltage, under-voltage, overload, short circuit, leakage, and over-temperature conditions, ensuring safe charging performance.

Key Features

6A–16A adjustable current
Touch-button configuration
LCD real-time monitoring
Multiple safety protections
IP67-rated enclosure

Applications

Flexible residential charging, circuit-limited homes, mobile EV charging.

Charger Drawing

Adjustable Current Portable EV Charger with Touch Control and IP67 Rated Enclosure 0

Charging time, Consumption(kWh)

Charging voltage /current/ power, Total electricity(kWh),Temperature

Current adjustable from 6A to 16Ain steps of 1A

Delay charging setting
The screen and LED can automatically turn off according to the set time

Optional

Appointment forcharging (based on data and time on the APP)

APP remote control (Bluetooth and WlFl)

Chargingmode (APP/Plug and Play)

View charging records on the APP

Product Model: EVX03B – Specifications

Category	Item	Specification
Electrical Parameters	Input / Output Voltage	AC 110V / 230V
	Input Frequency	50 / 60 Hz
	Max. Output Power	1-Phase up to 3.68 kW (230V, 16A)
	Max. Output Current	16A for 1-Phase
	Standard	EN IEC 62752:2024
	Certificate	CE, RoHS
Protection	Over Voltage Protection	Yes
	Under Voltage Protection	Yes
	Over Load Protection	Yes
	Short Circuit Protection	Yes
	Leakage Protection	Yes
	Over-Temp Protection	Yes
Function & Accessory	LED Indicators	Yes
	LCD Screen	1.47-inch
	RCD	Type A (Type B optional)
	Current Adjustment	Yes
	WiFi / Bluetooth	Optional
	Relay Adhesion Detection	Yes
	RFID Manageable	No
Working Environment	Protection Degree	IP67
	Operation Temperature	-30℃ ~ +55℃
	Relative Humidity	≤95% RH
	Operating Elevation Limit	≤2000 m
	Cooling	Natural Air Cooling
	Standby Power Consumption	< 1 W
Mechanical Parameters	Charging Cable	5 m (Standard configuration)
	Control Box	H × W × D = 195 × 91 × 49 mm
	Weight	≤ 3.0 kg
	Colour	Black
	Material	PC (Flame retardant, UV resistant)

How to install

Packaging

Certification

Exhibition

Visits from Various Countries (looking forward to your arrival)
