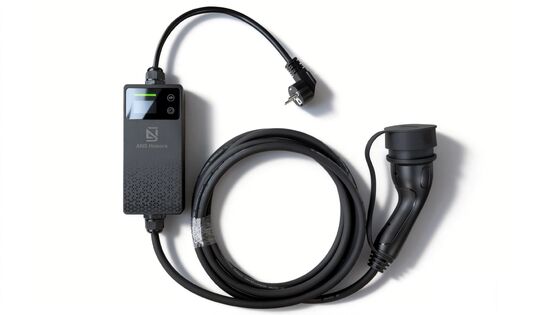

Lightweight 3.7kW Portable EV Charger with IP67 Protection for Residential Charging

Brand Name:	ANS
Model Number:	EVX03B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Document:

Product Name:

Lightweight 3.7kW EV ChargerCable

Input/Output Voltage:

AC 110V/230V

Key Feature:

Weiht:

Certification:

CE,RoHS

Power:

3.7kw

Supply Ability:

100000PCS/month

Highlight:

3.7kW Portable EV Charger

IP67 Portable EV Charger

Lightweight EV Charging Cable

Product Description

Product Overview

This lightweight 3.7kW EV charger is designed specifically for residential AC charging applications. Based on the EVX03B platform, it delivers stable single-phase charging performance while maintaining a compact and portable structure. With a maximum output of 3.68kW and adjustable current from 6A to 16A, it adapts easily to different household electrical systems.

The compact control box and 5-meter charging cable make it convenient for daily garage use. Its flame-retardant and UV-resistant PC housing ensures durability for long-term indoor or semi-outdoor environments. The built-in LCD screen displays charging current, voltage, energy consumption, and time, providing clear monitoring throughout the charging process.

With IP67 protection and natural air cooling, this charger offers reliable performance with minimal maintenance, making it ideal for home EV users.

Key Features

3.68kW single-phase AC charging
Adjustable current 6A–16A
Compact and lightweight design
1.47-inch LCD display
IP67 protection rating
Low standby power (<1W)

Applications

Home charging, garage installation, residential EV charging.

Charger Drawing

Lightweight 3.7kW Portable EV Charger with IP67 Protection for Residential Charging 0

Charging time, Consumption(kWh)

Charging voltage /current/ power, Total electricity(kWh),Temperature

Current adjustable from 6A to 16Ain steps of 1A

Delay charging setting
The screen and LED can automatically turn off according to the set time

Optional

Appointment forcharging (based on data and time on the APP)

APP remote control (Bluetooth and WlFl)

Chargingmode (APP/Plug and Play)

View charging records on the APP

Product Model: EVX03B – Specifications

Category	Item	Specification
Electrical Parameters	Input / Output Voltage	AC 110V / 230V
	Input Frequency	50 / 60 Hz
	Max. Output Power	1-Phase up to 3.68 kW (230V, 16A)
	Max. Output Current	16A for 1-Phase
	Standard	EN IEC 62752:2024
	Certificate	CE, RoHS
Protection	Over Voltage Protection	Yes
	Under Voltage Protection	Yes
	Over Load Protection	Yes
	Short Circuit Protection	Yes
	Leakage Protection	Yes
	Over-Temp Protection	Yes
Function & Accessory	LED Indicators	Yes
	LCD Screen	1.47-inch
	RCD	Type A (Type B optional)
	Current Adjustment	Yes
	WiFi / Bluetooth	Optional
	Relay Adhesion Detection	Yes
	RFID Manageable	No
Working Environment	Protection Degree	IP67
	Operation Temperature	-30℃ ~ +55℃
	Relative Humidity	≤95% RH
	Operating Elevation Limit	≤2000 m
	Cooling	Natural Air Cooling
	Standby Power Consumption	< 1 W
Mechanical Parameters	Charging Cable	5 m (Standard configuration)
	Control Box	H × W × D = 195 × 91 × 49 mm
	Weight	≤ 3.0 kg
	Colour	Black
	Material	PC (Flame retardant, UV resistant)
