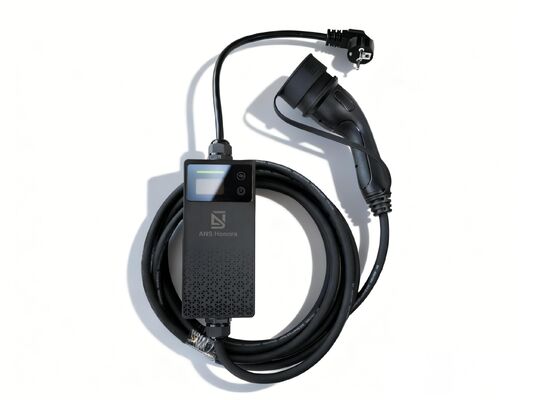

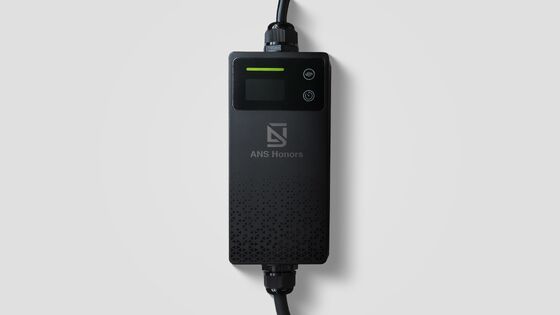

IP67 Waterproof Portable EV Charger with 3.7kW Output and Wide Temperature Range for Outdoor Use

Brand Name:	ANS
Model Number:	EVX03B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Document:

Product Name:

IP67 Outdoor Portable EV Charging Cable

Input/Output Voltage:

AC 110V/230V

Key Feature:

Weiht:

Certification:

CE,RoHS

Power:

3.7kw

Supply Ability:

100000PCS/month

Highlight:

IP67 Waterproof Portable EV Charger

3.7kW Output EV Charging Cable

Wide Temperature Range Electric Vehicle Charger

Product Description

Product Overview

Designed for durability and environmental resistance, this IP67-rated portable EV charging cable is suitable for outdoor charging and mobile applications. Using the EVX03B platform, the charger offers stable 3.7kW AC output while protecting both the vehicle and power grid through multiple safety mechanisms.

The sealed enclosure prevents dust and water ingress, allowing the charger to operate reliably in rain, snow, and humid conditions. With a wide operating temperature range from -30℃ to +55℃, it performs consistently in extreme climates.

Key Features

IP67 waterproof and dustproof design
Wide temperature operating range
Portable and lightweight construction
Full electrical protection functions

Applications

Outdoor charging, emergency EV charging, travel and mobile use.

Charging time, Consumption(kWh)

Charging voltage /current/ power, Total electricity(kWh),Temperature

Current adjustable from 6A to 16Ain steps of 1A

Delay charging setting
The screen and LED can automatically turn off according to the set time

Optional

Appointment forcharging (based on data and time on the APP)

APP remote control (Bluetooth and WlFl)

Chargingmode (APP/Plug and Play)

View charging records on the APP

Product Model: EVX03B – Specifications

Category	Item	Specification
Electrical Parameters	Input / Output Voltage	AC 110V / 230V
	Input Frequency	50 / 60 Hz
	Max. Output Power	1-Phase up to 3.68 kW (230V, 16A)
	Max. Output Current	16A for 1-Phase
	Standard	EN IEC 62752:2024
	Certificate	CE, RoHS
Protection	Over Voltage Protection	Yes
	Under Voltage Protection	Yes
	Over Load Protection	Yes
	Short Circuit Protection	Yes
	Leakage Protection	Yes
	Over-Temp Protection	Yes
Function & Accessory	LED Indicators	Yes
	LCD Screen	1.47-inch
	RCD	Type A (Type B optional)
	Current Adjustment	Yes
	WiFi / Bluetooth	Optional
	Relay Adhesion Detection	Yes
	RFID Manageable	No
Working Environment	Protection Degree	IP67
	Operation Temperature	-30℃ ~ +55℃
	Relative Humidity	≤95% RH
	Operating Elevation Limit	≤2000 m
	Cooling	Natural Air Cooling
	Standby Power Consumption	< 1 W
Mechanical Parameters	Charging Cable	5 m (Standard configuration)
	Control Box	H × W × D = 195 × 91 × 49 mm
	Weight	≤ 3.0 kg
	Colour	Black
	Material	PC (Flame retardant, UV resistant)

How to install

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Packaging

Certification

Exhibition

Visits from Various Countries (looking forward to your arrival)
