Portable EV Charger

3.7kW Portable Mode 2 EV Charger with Adjustable Current and IP67 Waterproof Protection

All Category

Type 1 To Type 2 EV Charging Cable

Type 2 To Type 2 EV Charging Cable

EV DC Charging Station

Ms. Alice Wang

info@cn-ans.com

+8615881062591

Contact Now

3.7kW Portable Mode 2 EV Charger with Adjustable Current and IP67 Waterproof Protection

Brand Name:	ANS
Model Number:	EVX03B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,RoHS

Document:

Product Name:

3.7kW Portable Mode 2 EV Charger

Type:

Mode 2 EV Charger

Weiht:

Key Feature:

1.47 Inch LCD Screen

Protection:

Certification:

Supply Ability:

100000PCS/month

Highlight:

3.7kW Portable EV Charger

Adjustable Current Mode 2 EV Charger

IP67 Waterproof Electric Vehicle Charger

Product Description

Product Overview

This 3.7kW portable Mode 2 EV charger is designed for safe, flexible, and efficient AC charging of electric and plug-in hybrid vehicles. Based on the EVX03B platform, it integrates an IC-CPD control and protection device inside the cable, ensuring full compliance with IEC 62752:2024 safety standards.

With adjustable charging current from 6A to 16A, this charger allows users to match the charging power to different household power supplies, reducing the risk of overload while maximizing charging efficiency. The compact control box and lightweight design make it ideal for daily home use as well as mobile and emergency charging scenarios.

A 1.47-inch LCD screen clearly displays charging status, current, voltage, power, energy consumption, and charging time, allowing users to monitor the charging process in real time. The charger also supports delay charging and appointment charging, helping users take advantage of off-peak electricity pricing.

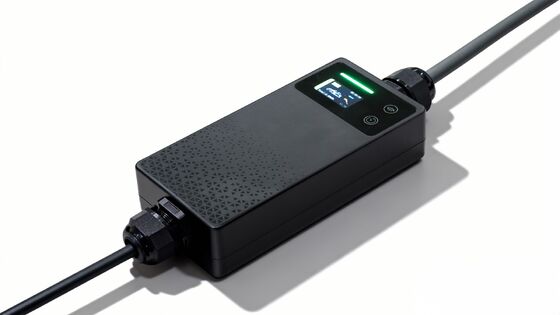

3.7kW Portable Mode 2 EV Charger with Adjustable Current and IP67 Waterproof Protection 0

Key Features

Smart LCD monitoring system
Adjustable charging current
Delay and appointment charging
Low standby power consumption
Compact and portable design

Product Model: EVX03B – Specifications

Category	Item	Specification
Electrical Parameters	Input / Output Voltage	AC 110V / 230V
	Input Frequency	50 / 60 Hz
	Max. Output Power	1-Phase up to 3.68 kW (230V, 16A)
	Max. Output Current	16A for 1-Phase
	Standard	EN IEC 62752:2024
	Certificate	CE, RoHS
Protection	Over Voltage Protection	Yes
	Under Voltage Protection	Yes
	Over Load Protection	Yes
	Short Circuit Protection	Yes
	Leakage Protection	Yes
	Over-Temp Protection	Yes
Function & Accessory	LED Indicators	Yes
	LCD Screen	1.47-inch
	RCD	Type A (Type B optional)
	Current Adjustment	Yes
	WiFi / Bluetooth	Optional
	Relay Adhesion Detection	Yes
	RFID Manageable	No
Working Environment	Protection Degree	IP67
	Operation Temperature	-30℃ ~ +55℃
	Relative Humidity	≤95% RH
	Operating Elevation Limit	≤2000 m
	Cooling	Natural Air Cooling
	Standby Power Consumption	< 1 W
Mechanical Parameters	Charging Cable	5 m (Standard configuration)
	Control Box	H × W × D = 195 × 91 × 49 mm
	Weight	≤ 3.0 kg
	Colour	Black
	Material	PC (Flame retardant, UV resistant)

How to install

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Packaging

Certification

Exhibition

Visits from Various Countries (looking forward to your arrival)
