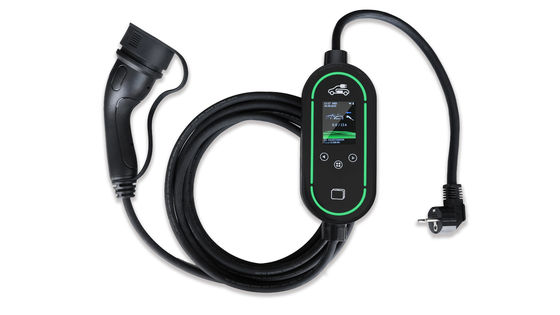

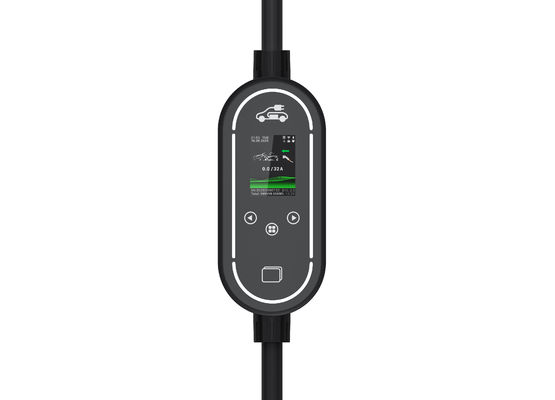

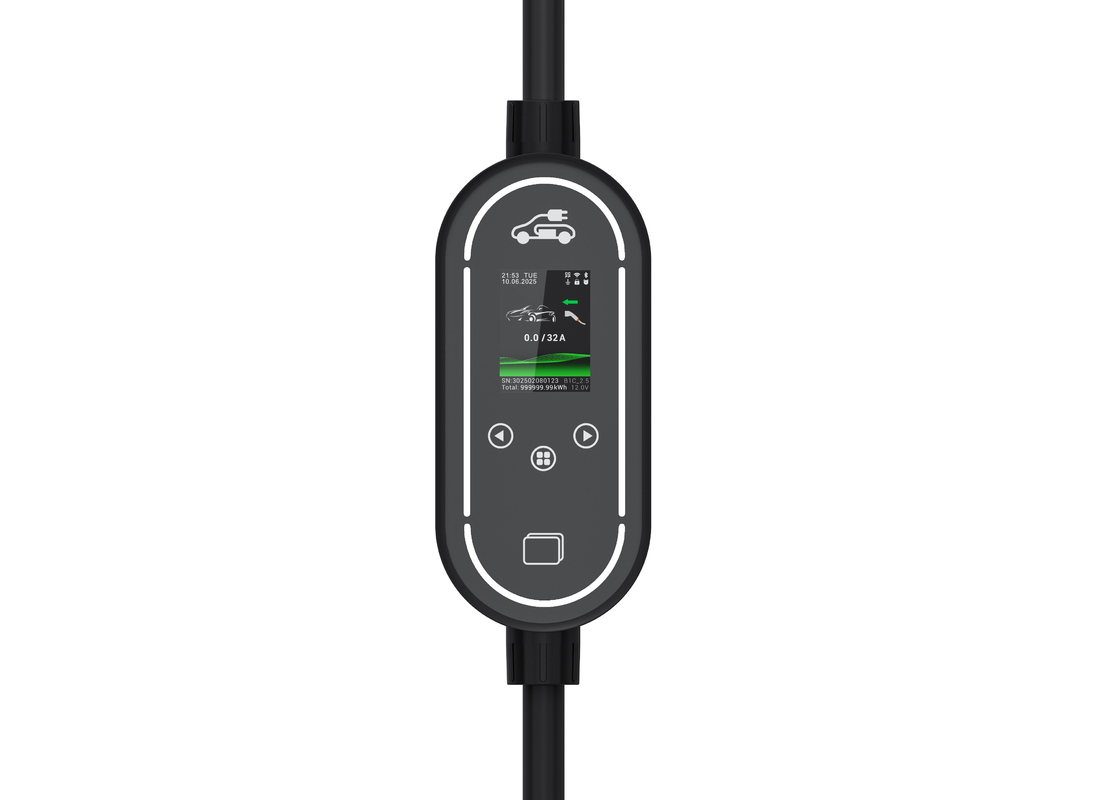

7.36kW 32A Multi-Function EV Charging System LCD Type B RCD

Brand Name:	ANS
Model Number:	EVB07B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Multi-Function EV Charging System

Type:

EV Charging System

Weiht:

WIFI:

2.5GHz

Key Feature:

2.4 Inch LCE Sreen

Cable Colour:

Black Or Customization

Protection:

Certification:

Supply Ability:

100000PCS/month

Product Description

7.36kW 32A Multi-Function EV Charging System LCD Type B RCD

Product Description

The EVB07B all-weather EV charging system offers comprehensive functionality and robust protection for various charging scenarios. Featuring a Type B RCD with combined AC and DC leakage protection, it ensures the highest level of safety during charging operations. The 2.4-inch LCD display provides clear visibility of charging parameters and supports multiple languages for user convenience. With current adjustable from 6A to 32A, users can optimize charging speed based on their electrical system's capacity. The compact and durable design, coupled with IP67 rating, makes it suitable for both indoor and outdoor installations. Whether for home, office, or public use, the EVB07B delivers reliable performance under diverse conditions.

Features:

Type B RCD with AC/DC leakage protection
2.4-inch multi-language LCD display
Current adjustable from 6A to 32A
IP67 rated for outdoor use

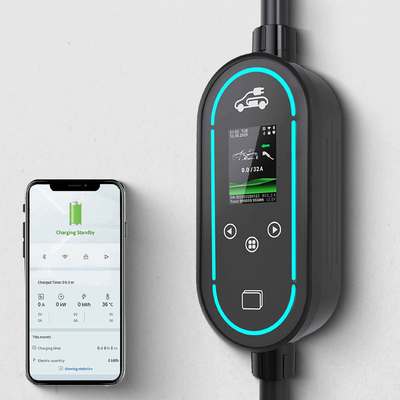

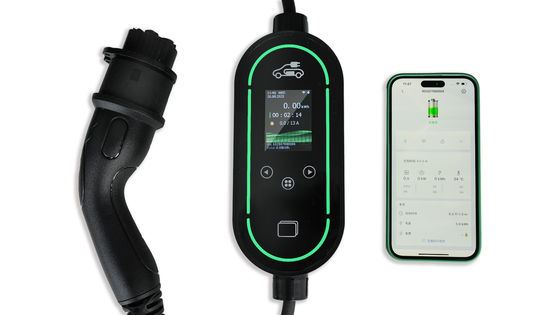

Multiple charging modes (RFID/APP/Password/Plug and Play)
Comprehensive protection mechanisms

Specificaiton

Product Model EVB07B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 7.36kW(@230V 16A)
Max.output current	32A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Certificate	CE,RoHS
Protection
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
Led screen	2.4-inch
RCD	Type B((AC 30mA+DC 6mA)
Current adjustment	Yes
Relay adhesion detection	Yes
RFID manageable	Yes
WIFI/Bluetooth	Yes(WIFI 2.4GHz)
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 55℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<3W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3kg
Colour	Black
Material	PC(Flame retardant, UV resistant)

7.36kW 32A Multi-Function EV Charging System LCD Type B RCD 0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

7.36kW 32A Multi-Function EV Charging System LCD Type B RCD 1

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

7.36kW 32A Multi-Function EV Charging System LCD Type B RCD 2

Packaging

Our Certification

Exhibition
7.36kW 32A Multi-Function EV Charging System LCD Type B RCD 5

Visits from Various Countries (looking forward to your arrival)

7.36kW 32A Multi-Function EV Charging System LCD Type B RCD 6
