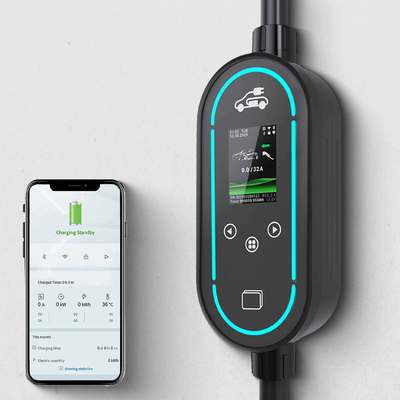

Industrial Grade Weatherproof IP67 Outdoor EV Charging Station 7.36kW 32A

Brand Name:	ANS
Model Number:	EVB07B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

IP67 Outdoor EV Charging Station

Type:

IP67 Outdoor EV Charger

Weiht:

WIFI:

2.5GHz

Key Feature:

2.4 Inch LCE Sreen

Cable Colour:

Black Or Customization

Protection:

Certification:

Supply Ability:

100000PCS/month

Product Description

Industrial Grade Weatherproof IP67 Outdoor EV Charging Station 7.36kW 32A

Product Description

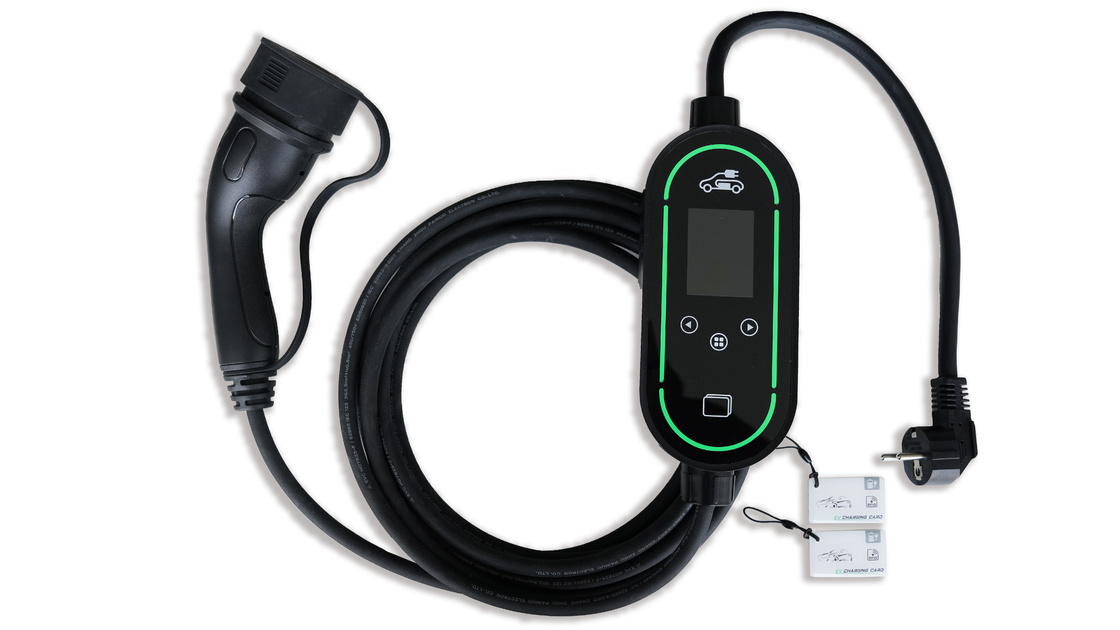

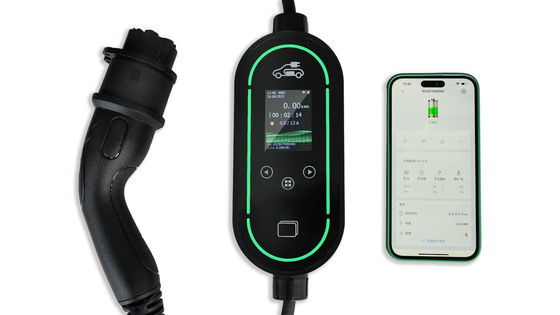

Built for demanding outdoor environments, the EVB07B outdoor EV charging station boasts an IP67 rating, making it resistant to dust and water. It operates reliably in extreme temperatures from -30°C to 55°C and handles relative humidity up to 95%. With a maximum output of 7.36kW and 32A current, it supports fast charging for various electric vehicles. The compact control box (200mm x 90mm x 52mm) is constructed from flame-retardant and UV-resistant PC material, ensuring long-term durability. Ideal for parking lots, commercial complexes, and public charging stations, the EVB07B combines high performance with robust protection features.

Features:

IP67 protection against dust and water
Wide operating temperature range
Flame-retardant and UV-resistant housing
5-meter charging cable included
Over-temp and lightning protection
Lightweight and easy to install

Specificaiton

Product Model EVB07B
Input/Output voltage	AC 110V/230V
Input frequency	50/60Hz
Max.output power	1 - Phase up to 7.36kW(@230V 16A)
Max.output current	32A for 1 - Phase
Standard	IEC 62752:2016/COR1:2019
Certificate	CE,RoHS
Protection
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
Led screen	2.4-inch
RCD	Type B((AC 30mA+DC 6mA)
Current adjustment	Yes
Relay adhesion detection	Yes
RFID manageable	Yes
WIFI/Bluetooth	Yes(WIFI 2.4GHz)
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 55℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<3W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3kg
Colour	Black
Material	PC(Flame retardant, UV resistant)

Industrial Grade Weatherproof IP67 Outdoor EV Charging Station 7.36kW 32A 0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

Industrial Grade Weatherproof IP67 Outdoor EV Charging Station 7.36kW 32A 1

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

Industrial Grade Weatherproof IP67 Outdoor EV Charging Station 7.36kW 32A 2

Packaging

Our Certification

Exhibition
Industrial Grade Weatherproof IP67 Outdoor EV Charging Station 7.36kW 32A 5

Visits from Various Countries (looking forward to your arrival)

Industrial Grade Weatherproof IP67 Outdoor EV Charging Station 7.36kW 32A 6
