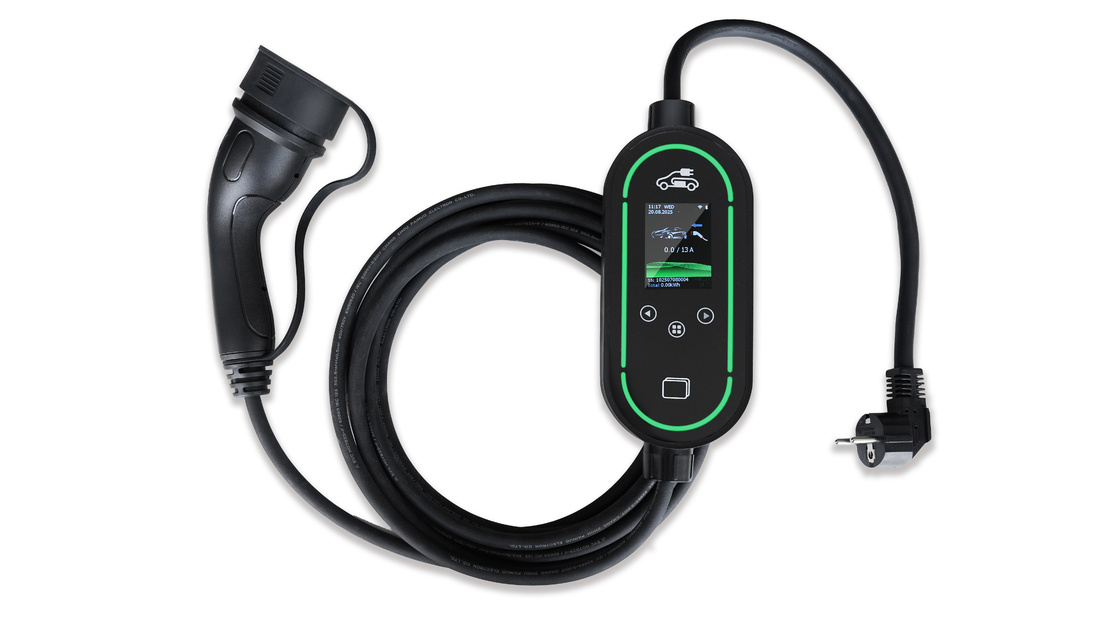

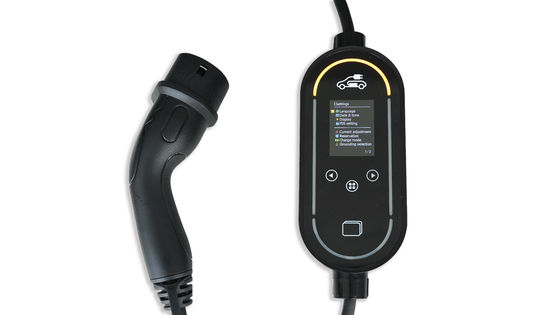

Name: AC110V/230V 3kW Portable EV Charger with WiFi 2.4GHz and IP67 Protection
Brand: Chengdu Honors Technology Co.,Ltd
SKU: EVB03B
Price: 217.00 USD
Availability: InStock

Brand Name:	ANS
Model Number:	EVB03B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

AC 3kw Portable EV Charger

Type:

Portable Car Charger

Weiht:

3kg

WIFI:

2.5GHz

Key Feature:

2.4 Inch LCE Sreen

Cable Colour:

Black Or Customization

Protection:

IP67

Certification:

Supply Ability:

100000PCS/month

Highlight:

3kW Portable EV Charger

AC110V/230V Electric Vehicle Charger

WiFi 2.4GHz EV Charging Cable

Product Description

AC110V/230V 3kW Portable EV Charger with WiFi 2.4GHz IP67

3 Phase 11kw Portable Home EV Charger With CE Certification

This high-performance portable EV charger delivers reliable charging with advanced features for home and on-the-go use.

Key Features

Date and time tracking with charging history (up to 30 records)
Multi-national language selection
Adjustable current from 6A to 16A in 1A increments
Scheduled charging appointments (weekly/time-based)
Auto screen/LED shutoff based on timer settings

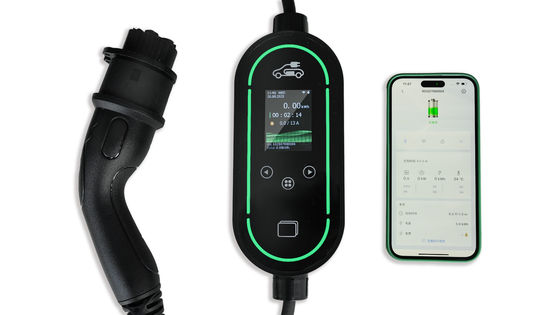

APP remote control via Bluetooth and WiFi
Multiple charging modes (RFID/APP/Password/Plug and Play)
Advanced load control with adjustable phase number and current (ModBus TCP)

Technical Specifications

Protection Features
Product Model	EVB03B
Input/Output Voltage	AC 110V/230V
Input Frequency	50/60Hz
Max. Output Power	1-Phase up to 3.7kW (@230V 16A)
Max. Output Current	16A for 1-Phase
Standard	IEC 62752:2016/COR1:2019
Certification	CE, RoHS
Over voltage protection Under voltage protection Over load protection Short circuit protection Leakage protection Over-temperature protection Lightning protection
Functionality & Accessories
LED indicators 2.4-inch LED screen Type B RCD (AC 30mA+DC 6mA) Current adjustment Relay adhesion detection RFID management WiFi/Bluetooth (WiFi 2.4GHz)
Environmental Specifications
IP67 protection rating Operating temperature: -30℃ to 55℃ Relative humidity ≤95%RH Operating elevation limit ≤2000m Natural air cooling Standby power consumption <3W
Physical Parameters
5m charging cable (standard) Control box dimensions: 200×90×52mm (H×W×D) Weight ≤3kg Black color PC material (flame retardant, UV resistant)

Control Box Functions

Leakage protection
Over-voltage or Low-voltage protection
Over-load protection
Lightning protection
Over-heat protection
Adjustable current: 8A, 10A, 13A, 16A

Installation Guide

Position the wall bracket and mark the top screw holes
Drill holes, insert expansion plugs, and secure the bracket
Mount the device into the bracket and secure with screws

Installation Examples

Packaging

Certifications

Exhibition Showcase

International Visitors
