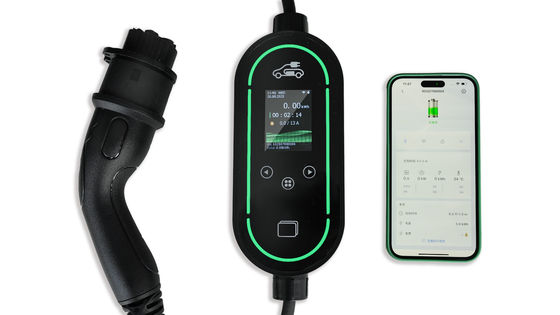

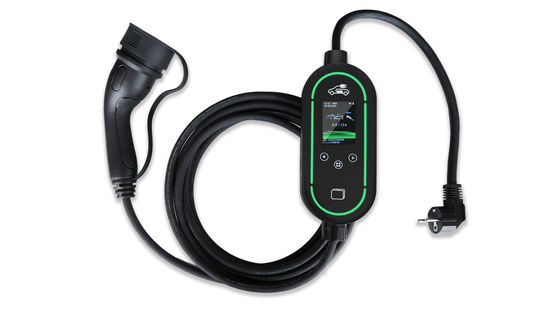

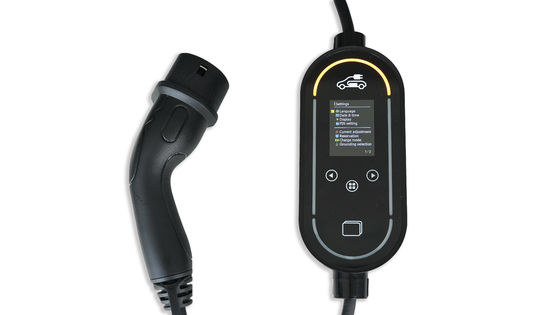

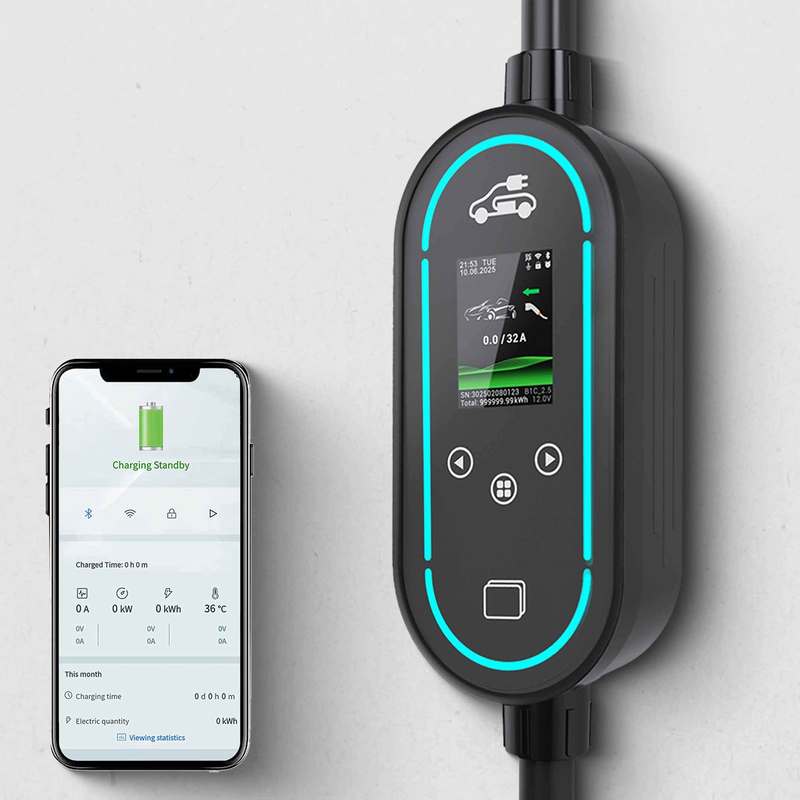

AC 400V 11kW Portable EV Charger with WiFi 2.4GHz IP67 Protection and 2.4-inch LCD Screen

Brand Name:	ANS
Model Number:	EVB11B
MOQ:	1
Packaging Details:	15.7153.15(in)
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

AC 400V 11kw Portable EV Charger

Type:

Portable EV Charger

Weiht:

WIFI:

2.5GHz

Key Feature:

2.4 Inch LCE Sreen

Cable Colour:

Black Or Customization

Protection:

Certification:

Supply Ability:

100000PCS/month

Highlight:

WiFi 2.4GHz Portable EV Charger

3kg Electric Vehicle Charger

2.4-inch LCD Screen EV Charging Cable

Product Description

3 Phase 11kw Portable Home Ev Charger With CE Certification

Product Description

Date and Time, Charging time, Consumption(kWh)

Charging voltage / current / power, Total electricity(kWh),Temperature

APP remote control (Bluetooth and WIFI)

Multi national language selection

Current adjustable from 6A to 16A in steps of 1A

Appointment for charging (based on data and time)

The screen and LED can automatically turn off according to the set time

Charging mode (RFID/APP/Password/Plug and Play)

Charging history (up to 30 records)

Load control, adjustable phase number and current (ModBus TCP)

Specificaiton

Product Model EVB011B
Input/Output voltage	AC 400V
Input frequency	50/60Hz
Max.output power	3 - Phase up to 11kW(@400V 16A)
Max.output current	16A for 3 - Phase
Standard	IEC 62752:2016/COR1:2019
Certificate	CE,RoHS
Protection
Over voltage protection	Yes
Under voltage protection	Yes
Over load protection	Yes
Short circuit protection	Yes
Leakage protection	Yes
Over - temp protection	Yes
Lightning protection	Yes
Function and Accessory
LED indicators	Yes
Led screen	2.4-inch
RCD	Type B((AC 30mA+DC 6mA)
Current adjustment	Yes
Relay adhesion detection	Yes
RFID manageable	Yes
WIFI/Bluetooth	Yes(WIFI 2.4GHz)
Working environment
Protection degree	IP 67
Operation temperature	-30℃ - 55℃
Relative humidity	≤95%RH
Operating elevation limit	≤2000m
Cooling	Natural air cooling
Standby power consumption	<3W
Mechanical parameters
Charging cable	5m (Standard configuration)
Control box	H×W×D = 200mm×90mm×52mm
Weight	≤3kg
Colour	Black
Material	PC(Flame retardant, UV resistant)

AC 400V 11kW Portable EV Charger with WiFi 2.4GHz IP67 Protection and 2.4-inch LCD Screen 0

Control Box Function:

1. Leakage protection

2. Over-voltage or Low-voltage protection

3. Over-load protection

4. Lightning protection

5. Over-heat protection

6. Change current: 8A 10A 13A 16A

How to install

AC 400V 11kW Portable EV Charger with WiFi 2.4GHz IP67 Protection and 2.4-inch LCD Screen 1

Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.

Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping

screws.

Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.

Installation cases

AC 400V 11kW Portable EV Charger with WiFi 2.4GHz IP67 Protection and 2.4-inch LCD Screen 2

Packaging

Our Certification

Exhibition
AC 400V 11kW Portable EV Charger with WiFi 2.4GHz IP67 Protection and 2.4-inch LCD Screen 5

Visits from Various Countries (looking forward to your arrival)

AC 400V 11kW Portable EV Charger with WiFi 2.4GHz IP67 Protection and 2.4-inch LCD Screen 6
