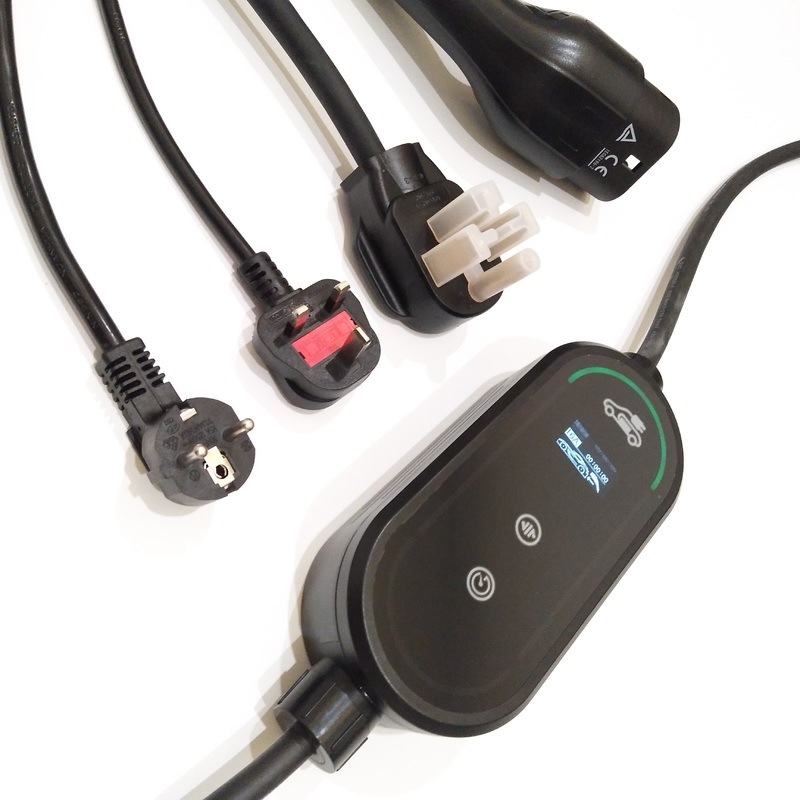

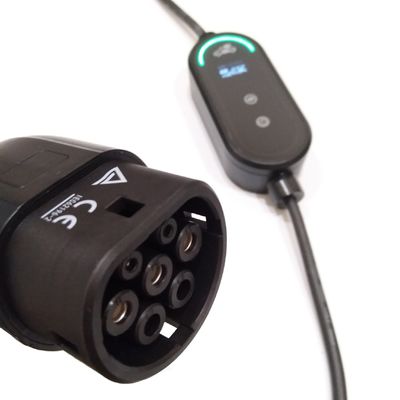

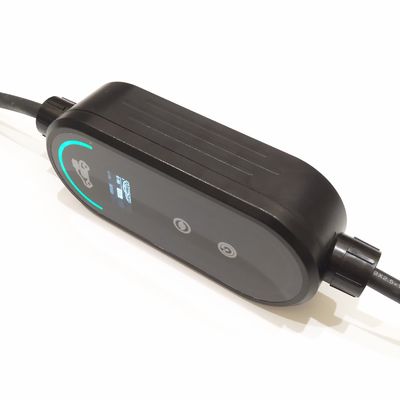

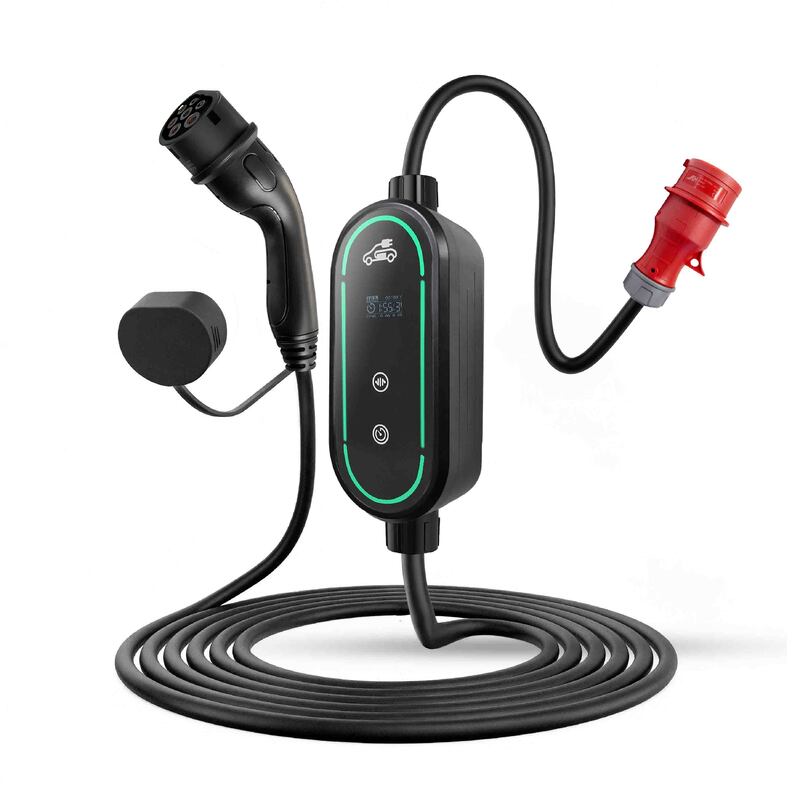

3 Phase 400V 11kW Portable EV Car Charger with IP67 Protection and CE Certification

Name: 3 Phase 400V 11kW Portable EV Car Charger with IP67 Protection and CE Certification
Brand: Chengdu Honors Technology Co.,Ltd
SKU: EVA11B
Price: 217.00 USD
Availability: InStock

Brand Name:	ANS
Model Number:	EVA11B
MOQ:	1
Delivery Time:	20-30days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

China

Certification:

Product Name:

11kw Portable EV Car Charger

Input/Output Voltage:

400V

Type:

Portable EV Charger

Weiht:

3.2kg

Rated Frequency:

50Hz/60Hz

Charging Cable:

Protection:

IP67

Certification:

Packaging Details:

15.7*15*3.15(in)

Supply Ability:

100000PCS/month

Highlight:

3 phase 400V portable EV charger

11kW portable EV car charger

IP67 waterproof portable EV charger

Product Description

3 Phase 400V 11kW Portable EV Car Charger IP67 with CE Certification

Product Overview

Unlock professional-grade, high-speed charging with the EVA11B 11kW three-phase portable charger. Engineered for efficiency and top-tier safety, this charger delivers exceptional performance for high-performance EVs and commercial applications.

Adjustable Current: Optimize charging on robust three-phase power supplies (400V), delivering maximum speed where supported while ensuring compatibility
Delay Charging Setting: Manage energy consumption intelligently for high-power charging, leading to significant savings on operational costs
LED Light & Touch Key: Provides clear real-time data and control for complex high-power charging processes, ensuring user-friendliness
Built-in RCD Type B: Non-negotiable safety for high-capacity charging, offering critical protection against all types of residual currents

Technical Specifications

Product Model	EVA11B
Input/Output Voltage	AC 400V
Input Frequency	50/60Hz
Max. Output Power	3-Phase up to 11kW (@400V 16A)
Max. Output Current	16A for 3-Phase
Standard	IEC 62752:2016/COR1:2019

Protection Features

Certificate	CE
Over Voltage Protection	Yes
Under Voltage Protection	Yes
Over Load Protection	Yes
Short Circuit Protection	Yes
Leakage Protection	Yes
Over-Temperature Protection	Yes
Lightning Protection	Yes

Functions & Accessories

LED Indicators	Yes
OLED Screen	Yes
RCD	Type B
Current Adjustment	Yes
Delay Charging Adjustment	Yes
Ethernet/WiFi/4G/Bluetooth	No

Working Environment

Protection Degree	IP67
Operation Temperature	-30℃ to 60℃
Relative Humidity	≤95%RH
Operating Elevation Limit	≤2000m
Cooling	Natural Air Cooling
Standby Power Consumption	<0.5W

Mechanical Parameters

Charging Cable	5m (Standard Configuration)
Control Box Dimensions	HWD = 200mm90mm52mm
Weight	≤3.2kg
Color & Material	Black; Tempered Glass, PC

Display Features

Charging Temperature
Charging Current
Charging Voltage
Energy Charged in kW/h
Charged Time
Set Current
Charging Speed in kW

Control Box Functions

Leakage Protection
Over-voltage or Low-voltage Protection
Over-load Protection
Lightning Protection
Over-heat Protection
Change Current: 8A, 10A, 13A, 16A

Installation Guide

Position the wall bracket on the wall and mark the top two screw hole locations with a pencil
Remove the bracket, drill the marked holes, insert expansion plugs, and secure the wall bracket using self-tapping screws
Insert the device into the upper mounting hole of the wall bracket, then into the bottom bracket's round hole, and secure using combination screws
