Product Details
Place of Origin: China
Brand Name: ANS
Certification: CE
Model Number: ANS-portable-charger
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: 15.7*15*3.15(in)
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS/month
Product Name: |
Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
16A |
Rated Voltage: |
380V~450V |
Storage Temperature: |
-30 ℃ To +50℃ |
Stardard: |
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017 |
Cable Colour: |
Black Or Customization |
Waterproof: |
IP67 |
Weight: |
Lightweight |
Product Name: |
Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
16A |
Rated Voltage: |
380V~450V |
Storage Temperature: |
-30 ℃ To +50℃ |
Stardard: |
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017 |
Cable Colour: |
Black Or Customization |
Waterproof: |
IP67 |
Weight: |
Lightweight |

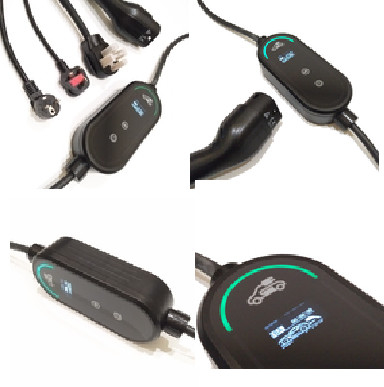

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)
Product Description
Advantages: reliable, safe, convenient and fast.
With adjustable amperage, embedded charging controller and PA, copper alloy and IP67 waterproof materials, the ultimate charging speed, reliability and safety are achieved.
Color: black, white and other colors can be selected, and customization is also supported.
LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
| Type | CBYEN-ev16-P | Plug the power | 80N<F<100N |
| Color | Black/White/customized | Patch life | ≥10000 |
| Rated Current | 8A-10A-13A-16A | Fire rating | UL94 V-0 |
| Rated Voltage | 380V~450V | Waterproof rating | IP67 |
| Resistance Voltage | 2000V | Operating Temperature | -30°C to50°C |
| Insulation resistance | >10MΩ | Cable Specifications | 5*2.5mm2+2*0.5mm2 |
| Contact resistance | less than 0.5mΩ | The main material | PA/Copper Alloy |
Functional definition:
| Mark | Functional Definition |
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3-(L3) | AC power |
| 4-(N) | Neutral |
| 5-(PE) | PE |
| 6-(CP) | Control Confirmation |
| 7-(PP) |
Connection Confirmation |
Product Detail
16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)
Cable length: 5m
Car Side Plug : Type 2
Current:8A-10A-13A-16A
Voltage: 380V±20%
Max. power: 7kW
Ingress Protection: IP 67
Operating temperature: -30℃~+50℃
Certificate: CE
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
