Product Details
Place of Origin: China
Brand Name: ANS
Certification: CE
Model Number: ANS-portable-charger
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: 15.7*15*3.15(in)
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS/month
Product Name: |
Portable EV Charger |
Brand: |
ANS |
Type: |
Portable EV Charger |
Rated Current:: |
16A |
Rated Frequency: |
50Hz/60Hz |
Storage Temperature: |
-30 ℃ To +50℃ |
Stardard: |
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017 |
Cable Colour: |
Black Or Customization |
Protection: |
IP67 |
Weight: |
3.5kg |
Product Name: |
Portable EV Charger |
Brand: |
ANS |
Type: |
Portable EV Charger |
Rated Current:: |
16A |
Rated Frequency: |
50Hz/60Hz |
Storage Temperature: |
-30 ℃ To +50℃ |
Stardard: |
EN 61851-1: 2017 / EN 62196-2: 2017/EN 62752:2017 |
Cable Colour: |
Black Or Customization |
Protection: |
IP67 |
Weight: |
3.5kg |
16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)
Product Description
| Type | CBYEN-ev16-P | Plug the power | 80N<F<100N |
| Color | Black/White/customized | Patch life | ≥10000 |
| Rated Current | 8A-10A-13A-16A | Fire rating | UL94 V-0 |
| Rated Voltage | 380V~450V | Waterproof rating | IP67 |
| Resistance Voltage | 2000V | Operating Temperature | -30°C to50°C |
| Insulation resistance | >10MΩ | Cable Specifications | 5*2.5mm2+2*0.5mm2 |
| Contact resistance | less than 0.5mΩ | The main material | PA/Copper Alloy |
Functional definition:
| Mark | Functional Definition |
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3-(L3) | AC power |
| 4-(N) | Neutral |
| 5-(PE) | PE |
| 6-(CP) | Control Confirmation |
| 7-(PP) |
Connection Confirmation |
Product Detail

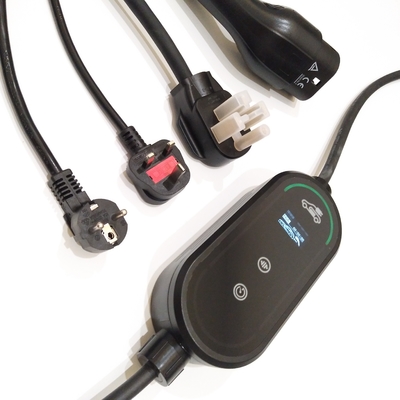

16A Power plug with temperature sensor AC 7KW Mode 2 portable EV charger with Schuko plug (max.16A)
Cable length: 5m

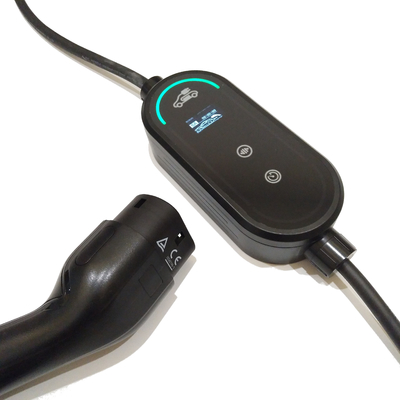

Car Side Plug : Type 2
Current:8A-10A-13A-16A
Voltage: 380V±20%
Max. power: 7kW
Ingress Protection: IP 67
Operating temperature: -30℃~+50℃
Certificate: CE
Features

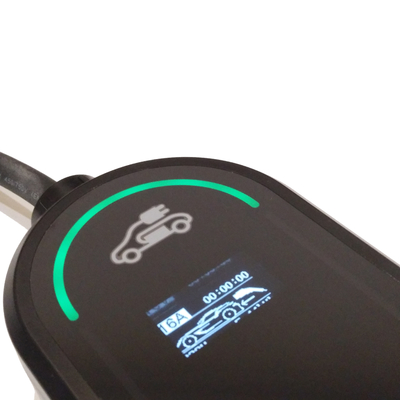

LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW

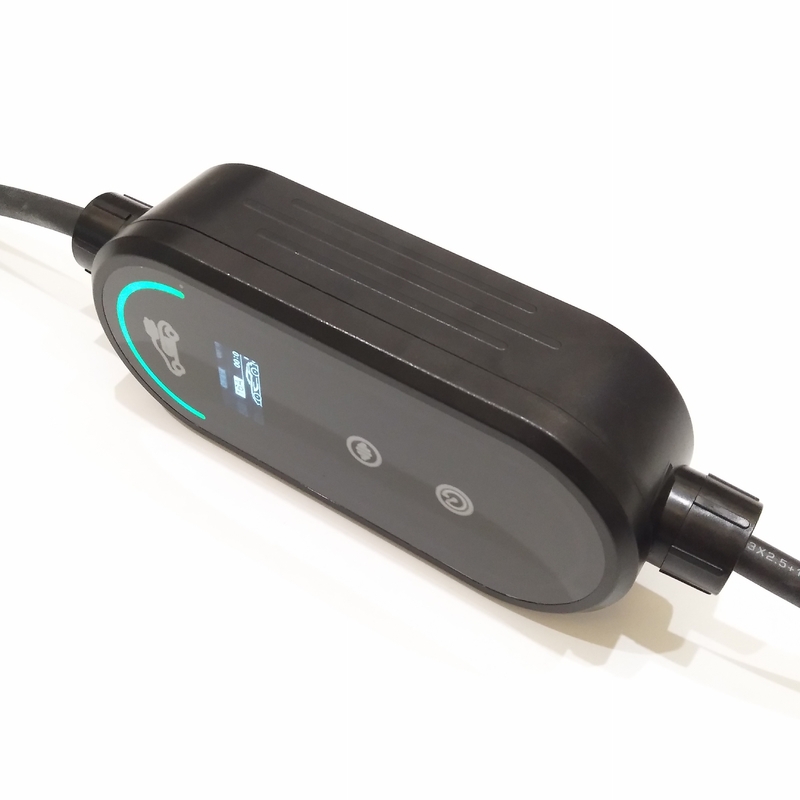

Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
