Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV/CE/UL/RoHS/REACH
Model Number: HNAPO-3
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD90-160
Packaging Details: Carton box. Carton size: 43*43*21cm
Delivery Time: 10-30days
Payment Terms: T/T, Western Union,Paypal, L/C
Supply Ability: 600pcs/day
Product Name: |
16A Portable Ev Charger |
Cable Length: |
5M Or Customized |
Input/Output Voltage: |
AC110V/230V |
Max.output Current: |
16A For 1-Phase |
Max.output Power: |
1-Phase Up To 3.7kW(@230V 16A) |
Standard: |
EN62752 |
Product Name: |
16A Portable Ev Charger |
Cable Length: |
5M Or Customized |
Input/Output Voltage: |
AC110V/230V |
Max.output Current: |
16A For 1-Phase |
Max.output Power: |
1-Phase Up To 3.7kW(@230V 16A) |
Standard: |
EN62752 |

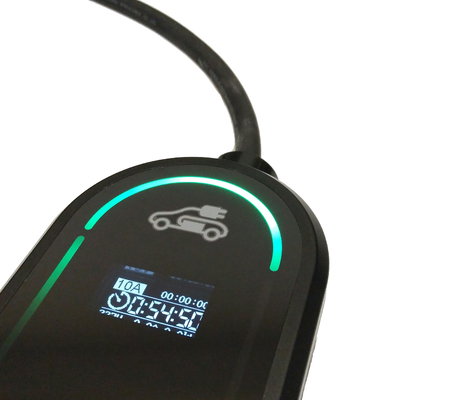

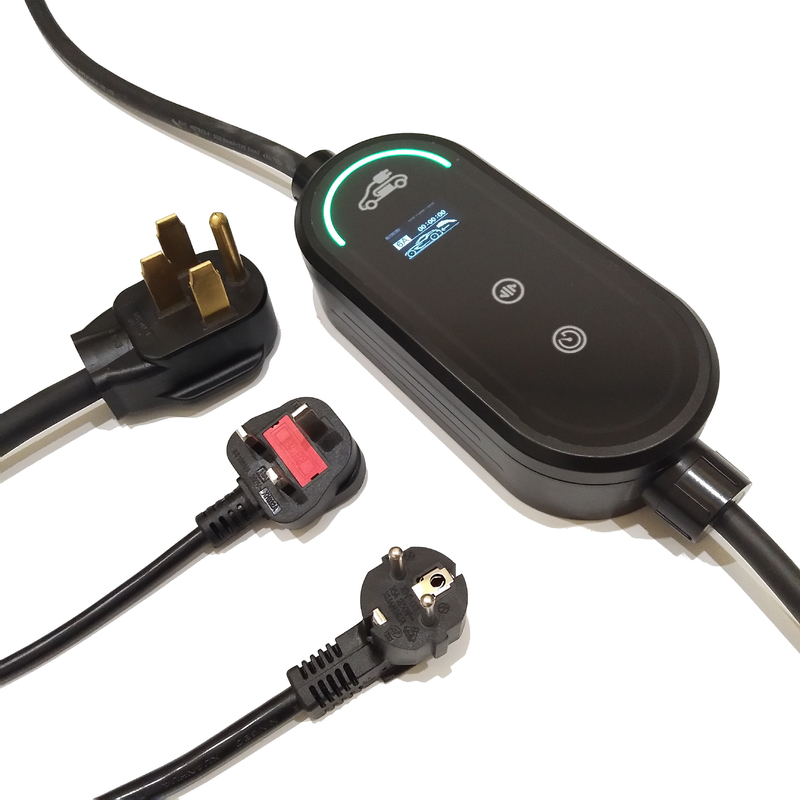

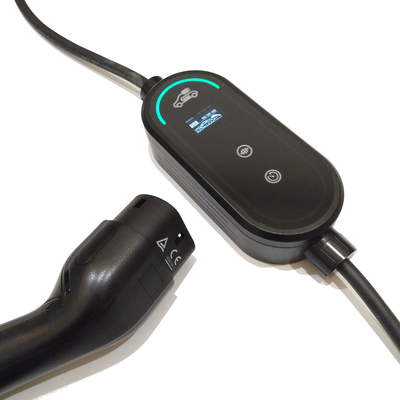

IP67 Type B protection Smart EV charger 16A 3.6kW with temperature sensor
Specification
| Input/Output voltage |
AC110V/230V
|
|
Input frequency
|
50/60Hz
|
|
Max.output power
|
1-Phase up to 3.7kW(@230V 16A)
|
|
Max.output current
|
16A for 1-Phase
|
|
Standard
|
16A for 1-Phase
|
|
Certificate
|
EN62752 |
Protection
Over voltage protection: Yes
Under voltage protection: Yes
Overload protection: Yes
Short circuit protection: Yes
Leakage protection: Yes
Over-temp protection: Yes
Lightning protection: Yes
Function and Accessory
Working environment
|
Protection degree
|
IP 67
|
|
Operation temperature
|
-30℃~+60℃ |
|
Relative humidity
|
≤95%RH
|
|
Operating elevation limit
|
≤2000m
|
|
Cooling
|
Natural air cooling
|
|
Standby power consumption
|
<0.5W
|
ANS EVSE, ensure the production of portable charging line are through strict quality inspection, within one year from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance.
Any user due to their improper handling, installation, use and maintenance, secretly negligence or because of natural disasters, lead to products direct damage or cannot be used properly, are out of place in the product warranty.
This warranty does not include the freight returned to the factory maintenance.
The warranty is only valid to the original purchaser and is not transferable.
Appearance
Certification
video
