Name: SAE J1772 EV Charging Cable Type 1 80A AC240V 19.2kW IP54 With 25feet UL
Brand: Chengdu Honors Technology Co.,Ltd
SKU: ANS-T1-9.6kW
Price: 41.20 USD
Availability: InStock

Brand Name:	ANS
Model Number:	ANS-T1-9.6kW
MOQ:	1pc
Price:	USD
Packaging Details:	standard exported package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Type 1 EV Charging Plug

Amps:

80A

Voltage:

240V

Power:

19.2kW

Standard:

SAE J1772

Model:

Level 2 US Charging Plug

Logo:

Support Customzation

Cable Length:

25feet，30feet

Supply Ability:

1000cs a week

Highlight:

sae j1772 charging cable 19.2kW

AC240V Type 1 Charging Cable

ev charging cable type 1 IP54

Product Description

SAE J1772 Type 1 Charging Cables 80A 240V 19.2kW with 25feet UL Certificate

Features:

Conform to the provisions and requirements of SAEJ1772-2012,IEC 62196-2 20162-l
Using riveting pressure process with none screw ,have a beautiful appearance.Hand-held design conform tothe ergonomic principle , plug conveniently
XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending lifeand wear resistance of cable.
Excellent protection performance, protection grade achieved lP55 ( working condition )

Mechanical properties

Mechanical life : no-load plug in/pull out> 10000 times
Coupled insertion force: >45N<80N

Electrical Performance

Rated current : 80A
Operation voltage: 240V
lnsulation resistance: >1000MQ(DC50Ov)
Terminall temperature rise :<50K
withstand voltage : 2000V

Environmental performance
Operating temperature:-30℃~+50°C

Applied Materials

Case Material: Thermoplastic,flame retardant grade UL94v-o
Contact Resistance:0.5mQ Max
Contact bush: Copper alloy,silver plating

Rated Current:	80Amp
Operating Voltage	AC 240V
Insulation Resisitance	>1000MΩ(DC500V)
Withstand Voltage	2000V
Contact Pin	Copper alloy, Silver
Working temperature	-30°C ~+50°C
Flame Retardant Grade	UL94 V-0
Contact Resistance:	0.5mΩ Max

Waterproof	IP54
Certificate	UL Approved

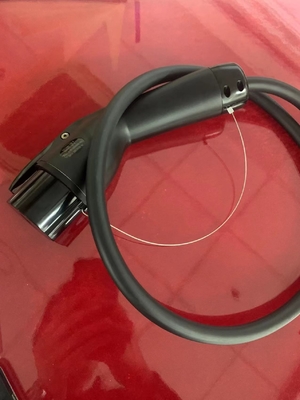

SAE J1772 EV Charging Cable Type 1 80A AC240V 19.2kW IP54 With 25feet UL 0

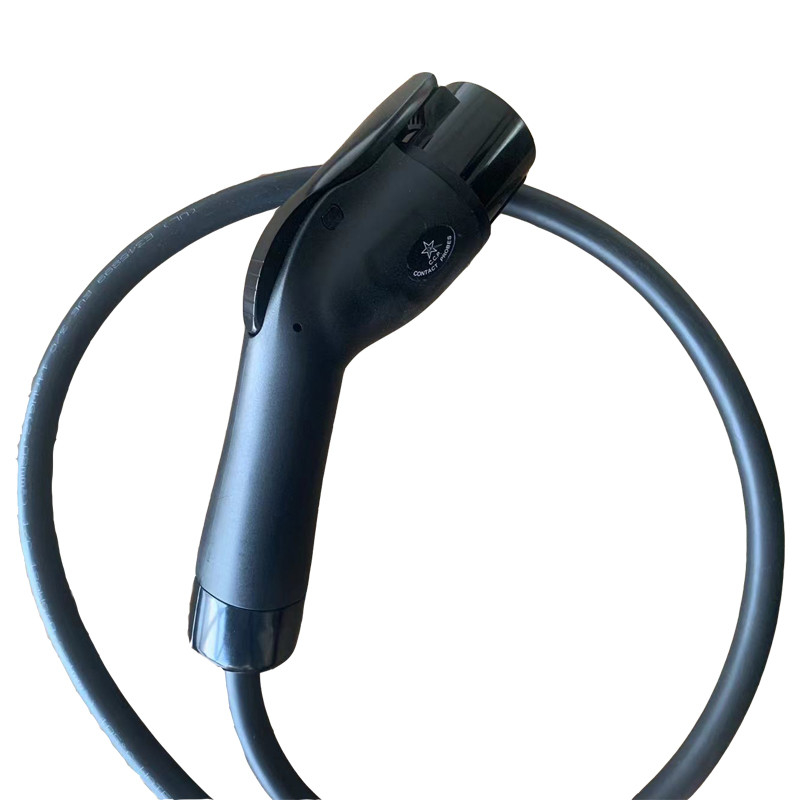

SAE J1772 EV Charging Cable Type 1 80A AC240V 19.2kW IP54 With 25feet UL 1

Certification: UL

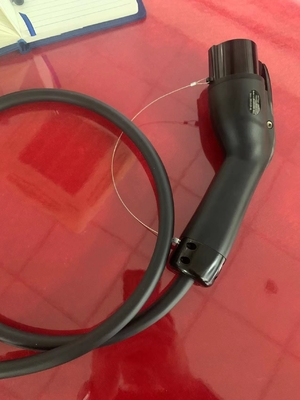

SAE J1772 EV Charging Cable Type 1 80A AC240V 19.2kW IP54 With 25feet UL 2
