Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV
Model Number: ANS-T2S-32A
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD
Packaging Details: expoet standard package
Delivery Time: 15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs one day
Product Name: |
EV Charging Accessories |
Rate: |
32A |
Voltage: |
250V |
Standards: |
IEC 62196-2 |
Material: |
Thermoplastic |
Type: |
Extension Socket |
Function: |
Power Charging |
Customzation: |
Support Customzation |
Power: |
7kW |
Product Name: |
EV Charging Accessories |
Rate: |
32A |
Voltage: |
250V |
Standards: |
IEC 62196-2 |
Material: |
Thermoplastic |
Type: |
Extension Socket |
Function: |
Power Charging |
Customzation: |
Support Customzation |
Power: |
7kW |

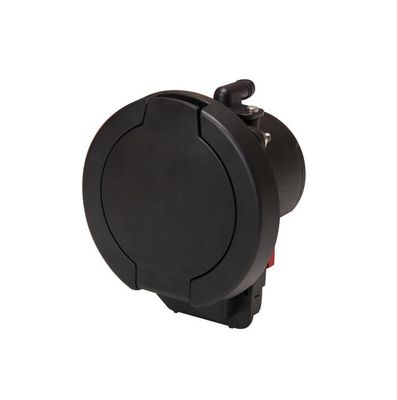

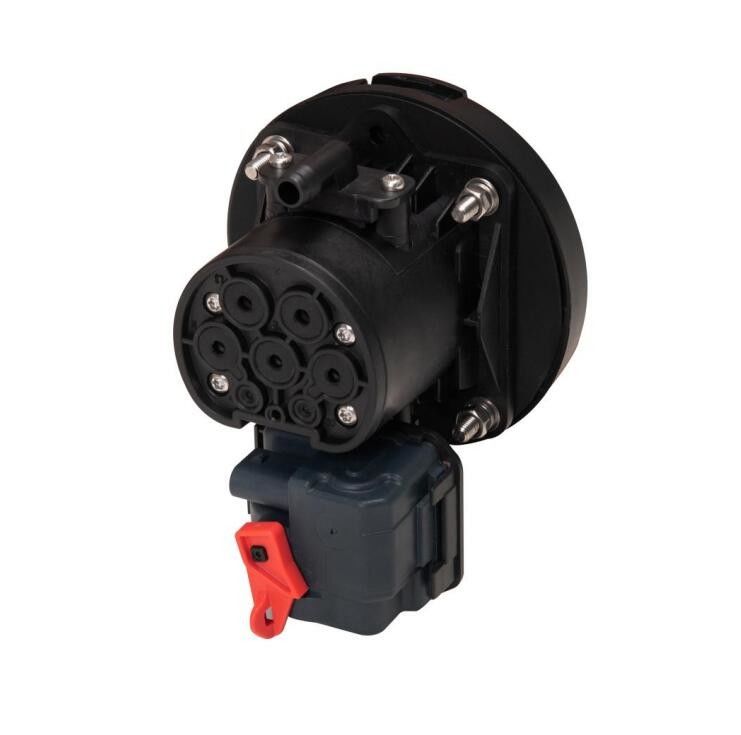

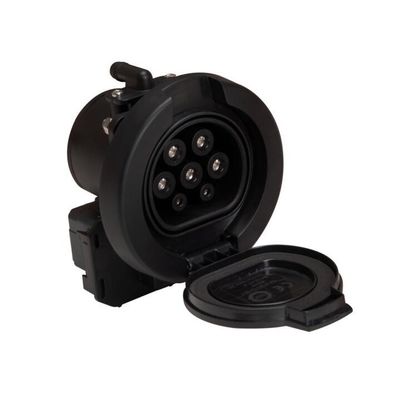

Type 2 female sockets 32A 250V 7kW charging stations sockets with Hella Lock EV Charging accessories
Mechanical properties
Mechanical life: no-load plug >10000times
●Insertion force: <100N
Applied Materials
Shell material: thermoplastics,flame retardant grade UL94V-0
● Contact-tube: Copper alloy,silver platedSeal: Rubber,Silicone
Environmental performance
● Operating temperature:-30℃-+50℃
● Waterproof rate: IP55
Electrical Performance
● The rated current: 16A,32A,40A
● The rated voltage: 250V/440V
Insulation resistance∶>1000MΩ (DC500V)
● Pins temperature rise: <50K· Withstand voltage: 2000V
● Contact impedance∶ 0.5mΩMax
Features
1) Conform to the provisions and requirements of IEC62196-2 2016.
2) Match with Hela locking device.
3)Have one or two PTC(PT1000)thermistor (can match with NTCor Temperature control switch).
4)Beautfulappearance,preventioncap can be installed on theleft side,the right side or the fron ofi
5)Reliable material,flame retardant,pressure proof, wear-resisting.impact resistance,high oil proof
6)Excellent protection performance,protection grade achieved IP55 (working condition)).
| Standards | IEC62196-2 Standard |
| Rated Voltage | 480V |
| waterproof | IP55 |
| warranty | 12months |
| Mechanical life | no-load plug in/pull out>10000times |
| Material | Thermoplastic, copper terminal with sliver plating. |
Package and shipping
Factory photos
Certification: TUV, CE,IATF16949,ISO 9001 Certification
