Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV, CE
Model Number: ANS-T1-3.6kW
Payment & Shipping Terms
Minimum Order Quantity: 1pc
Price: USD
Packaging Details: standard exported package
Delivery Time: 20-30days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000cs a week
Product Name: |
Portable EV Charger |
Amps: |
16A |
Voltage: |
250V |
Power: |
3.6kW |
Amps Switch: |
6-16A |
Protection: |
Over Current，over Voltage .etc |
Logo: |
Support Customzation |
Wall Side Plug: |

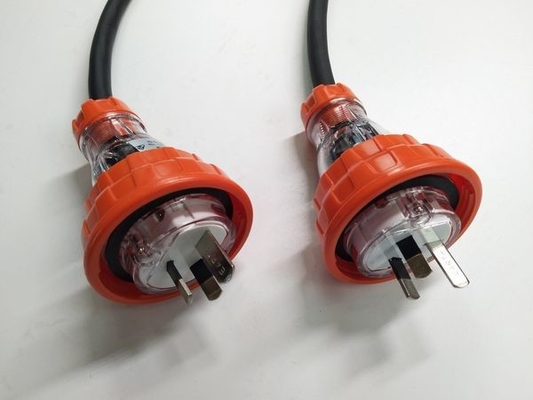

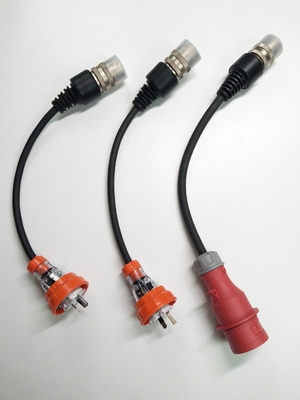

AU/NZ Plug |
Product Name: |
Portable EV Charger |
Amps: |
16A |
Voltage: |
250V |
Power: |
3.6kW |
Amps Switch: |
6-16A |
Protection: |
Over Current，over Voltage .etc |
Logo: |
Support Customzation |
Wall Side Plug: |
AU/NZ Plug |

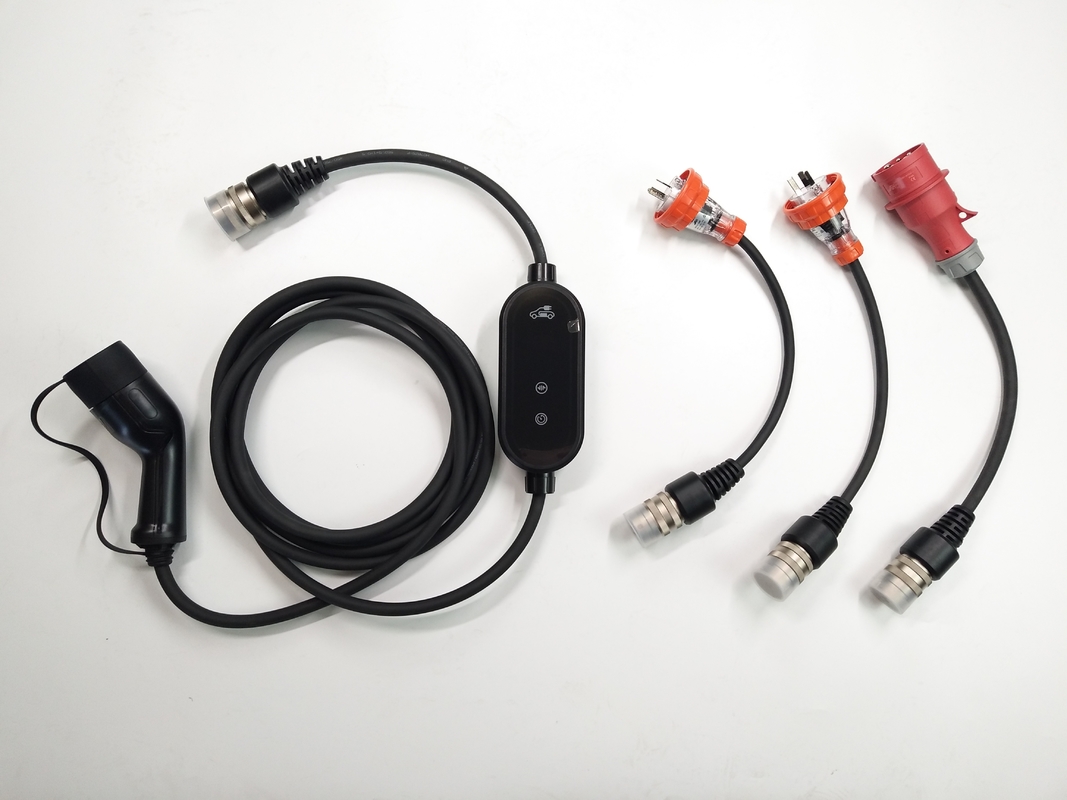

SAE J772 EV Chargers 10A 250V 3.6kW with AU/NZ 10A Plug Portable EV Charger
PRODUCT DESCRIPTION
Portable EV Charger is much convenient, portable, plug-and-play. This product is independently researched and accordance with the latest international standards. They apply to more than 95% standard EV cars. It has good performance when charging. There are more electrical protections and direct human-computer interaction interface. Control box is durable by adopting ergonomic surface design which makes the shell become solider and stronger. It is also small and exquisite.
| Item | Mode 2 EV Charger portable charger |
| Install | Portable, plug and Play |
| Output Current | 6A,10A Max. |
| Rated power | 3kW Max |
| Input Voltage AC | 110-250V 50Hz/60Hz |
| International Protection Marking | IP66 |
| Output Detection |
1.Short circuit protection 2.Over and under frequency protection 3. Over and under Current Protection 4.Leakage Current Protection (restart recover) 5.Over Temperature Protection 6.Overload protection (self-checking recover) 7. Ground Protection 8.Over voltage and under-voltage protection 9.Lighting Protection |
| Operating Temperature | -25℃~+55℃ |
| Storage Temperature | -40℃~+80℃ |
| Operating Humidity | 20%-85% |
| Dimension |
Control Box:200mm(L) X 93mm(W)X51.5mm(H) Regular length: 5Meter or Customized (L) |
| Weight | 2.8kg |
| Standard | IEC 62752 , IEC 61851 |
| Carton Measure | 340*300*110MM |
|
Condition |
LED Display Status | |||
| Green (One) | Green (Two) | Green (Three) | Fault (Red) | |
| Initial Mode | Light on | Lights Off | Lights Off | Lights Off |
| Connected mode | Light on | Twinkle (1S) | Lights Off | Lights Off |
| Charging Mode | Racing light | Racing light | Racing light | Lights Off |
| Finished Mode | Light On | Lights On | Lights On | Lights Off |
| Fault Mode | Light Off | Lights Off | Lights Off | Twinkle |
How to start charging
Step 1. Take out the charger and firmly insert the plug into socket-outlet.
Step 2. Pull cap lightly, completely plug the vehicle connector into your vehicle inlet.
Step 3. Factory default current is 32A, please press the button of "CURRENT SETTING" to adjust your required current. amperes to max. 32 ampere cycles. The device will default to the last current setting when you charge next time.
Step 4. The device start charging automatically while the READY/CHARGE, POWER indicators are all green.
How to stop charging
Step 1. Disconnect the vehicle connector from the vehicle inlet.
Step 2. Close protective cap of vehicle inlet, put on the protective cap of vehicle connector.
Step 3. Disconnect the plug from the socket-outlet.
Step 4. Pack up the EV charger cable and put into the bag.
Caution:
a. Please check if the device is intact and items are accordance with the packing list when you receive the package. If there are any abnormalities, please contact the sales timely or reject the goods.
b. Power-supply side input cable should be at least 3x6mm ² It is suggested that the power distribution is done by the professionals.
c. Do not submerge the control box or charging connector in water, and don't step on, pull, fold or knot the cable.
d. Ensure charging connector, plug, cable and control box are free of any abnormalities such as scratches, rusts, cracks, etc.
e. Don't charge if the socket is damaged, rusted, cracked or loosely connected, then contact the professionals to dispose.
f. Wipe with a clean and dry cloth if the plug gets dirty or wet.
g. Ensure power plug and socket are consistent before charging, especially the Current & Voltage.
h. Please check the input current and make sure to reduce charging current to below the input current.
i. Do not place the charging cable near high temperature object when it is working
Certification: CE
