Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV
Model Number: ANSYH-P-uk
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD
Packaging Details: 15.7*15*3.15(in)
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS/month
Product Name: |
10A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
10A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Application: |
AC Home Charging |
Product Name: |
10A Portable EV Charger |
Brand: |
ANS |
Rated Current:: |
10A |
Stardard: |
IEC62196-3 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV/CE |
Operating Temperature:: |
-30℃-+50℃ |
Application: |
AC Home Charging |

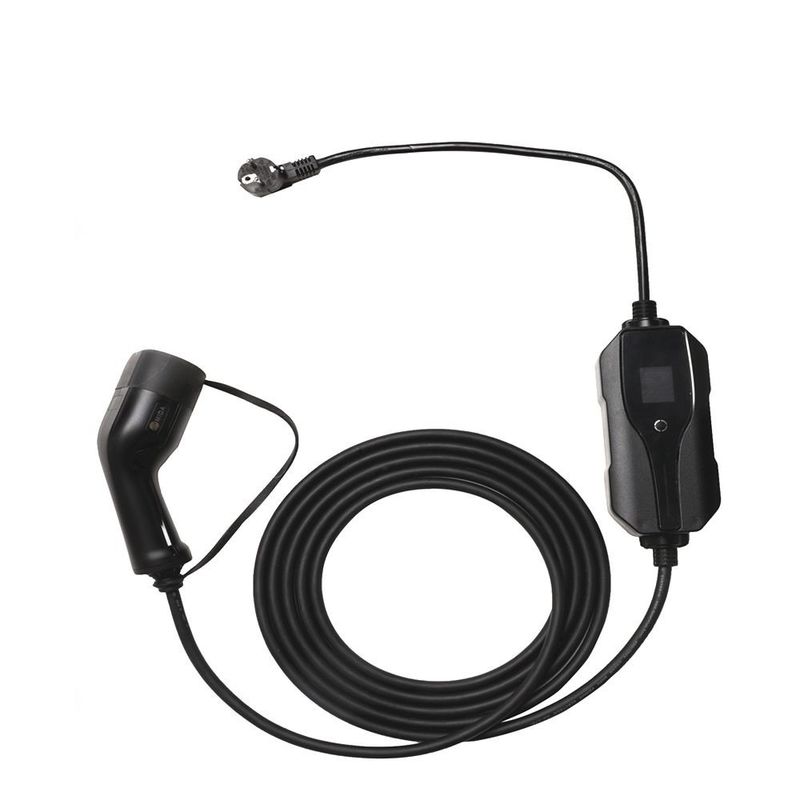

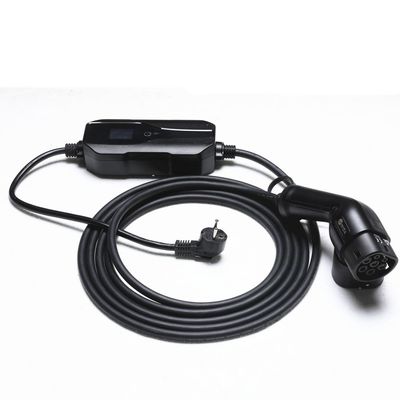

J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Portable EV Charger
Product Description
|
1 Electric parameter
|
|
|
1.1 Rated Frequency
|
50/60Hz
|
|
1.2 Rated current
|
8/10/13/16/32A
|
|
1.3 Rated voltage
|
single-phase, 230V±15%, 50/60Hz
|
|
2 Mechnical Parameter
|
|
|
2.1 IP Code
|
IP67
|
|
2.2 Charging Adapter Cable
|
5 meters cable or custom length
|
|
2.3 Dimensions
|
W × D × H = 230 × 93× 62 mm
|
|
2.4 Weight
|
＜5kg
|
|
2.5 Input Plug Standard
|
Select one of the following options:Blue CEE, NEMA Plug, UK Plug, Schuko Plug or AU Plug
|
|
3 Functional Description
|
|
|
3.1 Charging Control Model
|
Plug and play
|
|
3.2 Display Screen(Optional)
|
OLED screen (display charging current, voltage, output energy, charging time, state information, fault information and etc.)
|
|
3.3 Indicator Light
|
4 LED indicators-Power/ Connection/ Charging/ Fault
|
|
3.4 RCD type
|
Type A
|
|
3.5 Adjustable output current
|
Button options: 8A/10A/13A/16/32A
|
|
3.6 Preset function
|
Preset charging time trough the button
|
|
3.7 Safety Protection
|
surge protection, over temperature, leakage, over/under voltage, over current, ground protection
|
|
4 Environmental Conditions
|
|
|
4.1 Operational environment
|
indoor or outdoor, good ventilation, no flammable, explosive or corrosive gases
|
|
4.2 Vibration
|
＜0.5G, no violent vibration and impact
|
|
4.3 Altitude
|
≤2000 meters
|
|
4.4 Storage Temperature
|
-30 ~ 75 ℃ (-22 ~ 167 ℉)
|
|
4.5 Operating Temperature
|
-30 ~ 55 ℃ (-22 ~ 131 ℉)
|
|
4.6 Operating humidity
|
95%RH, no water droplet condensation
|
Product Detail

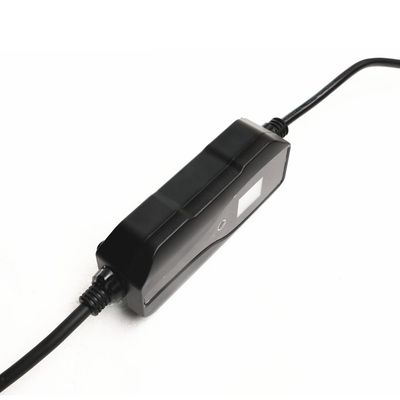

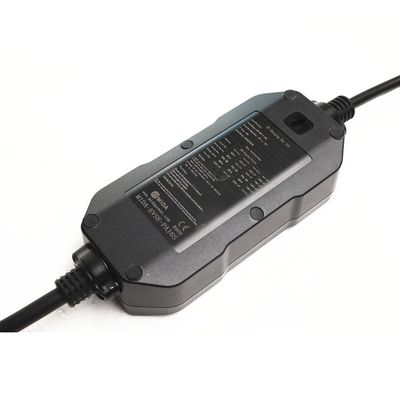

Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
When the internal temperature of the control box exceeds 85°C,enter over-tempe
LED Display:
1. Charging Temperature
2. Charging Current
3.Charging Voltage
4. EnergyCharged in KW/h
5. Charging speed in KW
Features
Electric Vehicle Car Portable Charger J1772 Type1 Plug 10A 13A 5metres EV Charging Cabl With UK Plug Mode 2 Wallboxes Port
Warnings:
● Do not use the charging box if it is damaged.
● Only use for EV charging
● Please do not disconnect while the charging box is charging.
Specifications:
Length: Total 5meters
IP Grade: IP65 waterproof
Rated Current: 8/10/13Amp adjustable
Input/Output: 240V 50Hz
Operating Temperature: -30℃~+50℃
Pin Material: Copper Alloy, Silver+ Thermoplastic On the Top
Retardant Frade: UL94V-0
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
