Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV,CE,RoHs, REACH
Model Number: ANSAG-T1-T2-16A
Payment & Shipping Terms
Minimum Order Quantity: 1pcs
Price: USD
Packaging Details: standards export package
Delivery Time: 20-30days
Payment Terms: L/C, D/A, T/T, D/P, Western Union
Supply Ability: 1000pcs one day
Product Name: |
EV Public Charging Cables |
Amps: |
32A |
Charging Mode: |
SAE J772 To IEC 62196 |
Voltage: |
250V |
Length: |
OEM |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 SAE J772 |
Grounding: |
Standard Grounding |
Warranty: |
2 Years |
Phase: |
1phase |
Product Name: |
EV Public Charging Cables |
Amps: |
32A |
Charging Mode: |
SAE J772 To IEC 62196 |
Voltage: |
250V |
Length: |
OEM |
Materials: |
Huntsman |
Plug Standard: |
IEC 62196 SAE J772 |
Grounding: |
Standard Grounding |
Warranty: |
2 Years |
Phase: |
1phase |

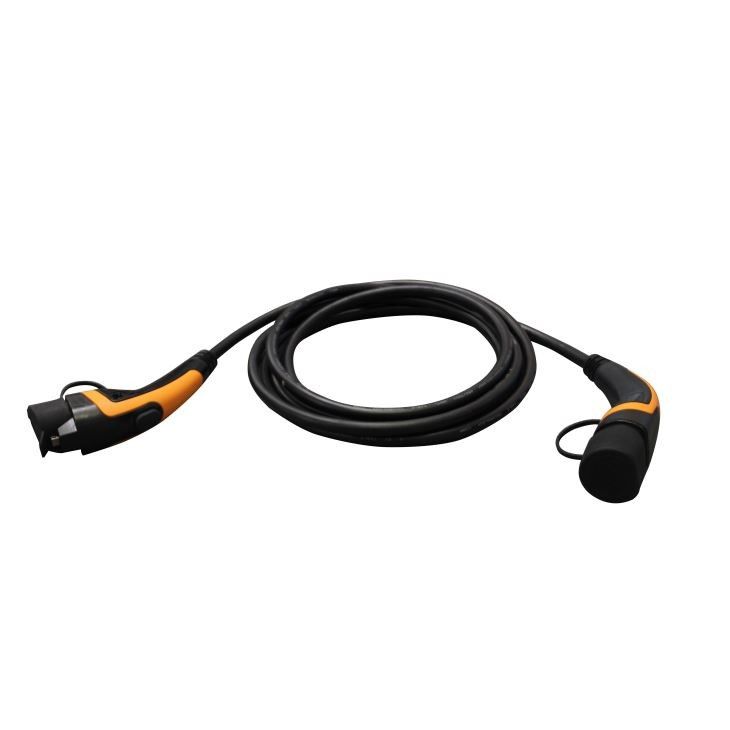

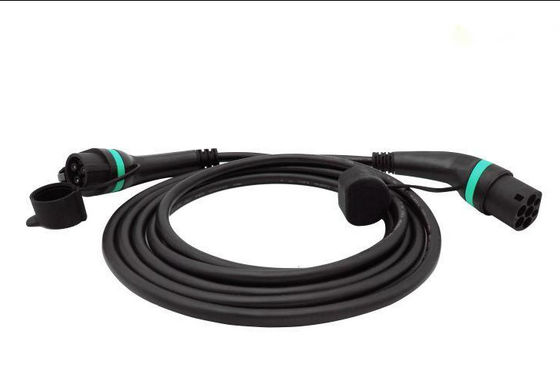

EV Electric Car Plug-in Hybrid EV Cable Connector TPU 32A 250V Type 1 to Type 2 7kW EV Public Charging Cables
Product Features
The shell adopts riveting process without screws
Ergonomic design concept
Double-color design with customization
The internal waterproof design has passed the TUV IP55 waterproof grade test
The cable material is TPU(Conform to the Latest EN50620 standard)
Keep the laser LOGO space for customer
Users can’t disassemble it by themselves, finished products with cable
Ergonomic design concept, beautiful appearance, Anti-slip material, excellent handhold experience, independent patent, Easy Plug
Free color matching, to meet the needs of different customers
Special internal waterproof treatment, the shell can effectively insulate water from the body and enhance the safety level
Cable material is TPU, the best material in the market at present, conforms to the the latest European Union standards, lighter and thinner, long time durability, low temperature resistance
|
Product Model: |
ANSAG-T1-T2-32A |
|
|
Product Type |
Type 1 to Type 2 ev charging cable |
|
|
Stardard: |
IEC 62196-2 SAE J1772 |
|
|
Rated Voltage: |
AC250V |
|
|
Rated Current: |
32A |
|
|
Working temperature: |
-30℃ to +65℃ |
|
|
Certifications: |
TUV CE |
|
|
Warranty: |
2 years |
|
|
Mechanical life: |
No-load plug in/pull out>10000 times |
|
|
Impato fex ternal force: |
Can afford 1m drop and 2T vehicle run over pressure |
|
|
Part name |
Material |
Supplier |
|
Cable |
PUR (TPU) |
HUNTSMAN: A85P4380 |
|
Shell of plug |
PC+PBT |
SABIC:V3900WX |
|
Head of plug |
PA66+GF25 |
DUPONT: FR50 |
Our advantages
1.The charging plugs and cables plastic part is TPU that come from imported HUNTSMAN,Sabric,
They all pasted CE,ROHS and friendly to people and environmental. Being responsible to our output and the environment is being trustworthy to our clients. Besides, we never forget our intention of making reliable products from the start. Hence, we are committed to utilizing green materials made to reduce carbon footprint, environmental contamination, or negative health effects.
2.Our business scope includes charging pile equipment, wind power generation equipment, photovoltaic power generation equipment
and other products, providing targeted products and solutions for government public power, transportation service charging, and private
supporting power supply facilities.
3.All the products are produced in strict accordance with CQC standards, and obtained CCC, TUV, UL and other certifications.
We adhere to the development concept of high efficiency, energy saving and environmental protection. With independent innovation and customer service as the foundation; market-oriented, quality of survival. We firmly believe that ANS will surely set sail and create brilliance!
4.ANS EVSE is the first supplier in China manufacturing and offering TPU cables(Thermoplastic polyurethanes) used on electric vehicle charging items. It is a special elastomer with a wide range of hardness and good elasticity.The TPU material from the charging cable generally refers to the polyether type TPU. The strength, hydrolysis resistance and low temperature performance of the polyether type TPU are superior.
Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949
