Product Details
Place of Origin: china
Brand Name: ANS
Certification: TUV
Model Number: ANSAG-T1-T2-32-ST
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: 15.7*15*3.15(in)
Delivery Time: 20-30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000PCS/month
Product Name: |
Blue Type 1-Type 2EV Charging Cable |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
32A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Color: |
Blue |
Product Name: |
Blue Type 1-Type 2EV Charging Cable |
Brand: |
ANS |
Material: |
TPU |
Rated Current:: |
32A |
Stardard: |
IEC 62196-2 |
Protection Level:: |
IP67 |
Warranty: |
2years |
Certifications:: |
TUV |
Color: |
Blue |

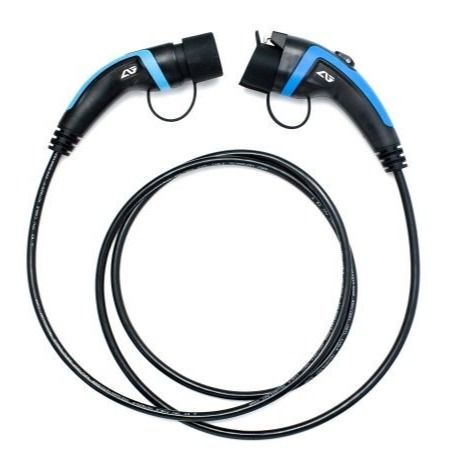

Blue Electric Vehicle connector plug 32A Type 1 to Type2 EV charging cable
Product Description
|
Input & Output |
|||
|
Input voltage/Output voltage |
100~250V AC |
Max. output current |
32A 1Phase |
|
Input frequency |
47~63Hz |
Charging interface type |
Type1-Type 2 |
|
Max. output power |
22KW |
|
|
|
Protection |
|||
|
Over voltage protection |
yes |
Earth leakage protection |
yes |
|
Under voltage protection |
yes |
Over-temp protection |
yes |
|
Over load protection |
yes |
Lightning protection |
yes |
|
Short circuit protection |
yes |
|
|
|
Function and Accessory |
|||
|
Ethernet/WIFI/4G/Bluetooth |
No |
Cable gauge |
3x6+2x0.5mm2 |
|
Plug type |
Type 1-Type2 male&female |
Plug material |
Thermoplastic materials |
|
Length |
5 meters |
Cable material |
TPU |
|
Working environment |
|||
|
Waterproof Protection degree |
IP67 |
Maximum altitude |
<2000m |
|
Environment temperature |
-40℃ ~ +50℃ |
Cooling |
Natural air cooling |
|
Relative humidity |
0-95% non-condensing |
Standby power consumpiton |
<8W |
|
Package |
|||
|
Dimension (W/H/D) |
40/38/8cm |
Weight |
4KG |
|
Certificate |
CE, TUV, |
||
Product Detail
Feature of Type1-Type 2 Ev Charging Cables
IP67 Rated Ergonomic Pistol Grip Style
● Impact Resistant ‘Run Over’ Proof
● 10,000 Mating Cycles
● Cable Strain Relief Feature
● Insulated Terminal Design
● J1772 Locking Feature for Padlock
● Dust Cap on Lanyard
● High Viz Blue Or Black Cable
● CE & UL Approved
FAQ
1, What EV connector amp do you have?
16A/32A/40A/50A/63A
2, Do you have 3-phase EV cables?
Yes, both single-phase and three-phase are available
3, Can I print my own logo?
Yes MOQ 100pcs. no extra cost.
4, Can I customise the connectors or cables with different colours?
Yes, in addition to black, we can also make blue, orange, green and grey.
MOQ 200pcs. no extra charge.
5, What is your warranty?
3 years. Free replacement of any defective item. Response to any warranty issue within 1 working day.
Customer satisfaction comes first.
6. What is the delivery time?
For sample orders, we can ship within 2 to 5 days
For bulk orders, 10 to 15 days. For custom logos or colours, 4 weeks.
7. What shipping methods do you use?
For shipments less than 100KG we usually ship via DHL/UPS/FedEx and other special airlines.
For shipments over 100kg, we ship by air or sea.
