Product Details
Place of Origin: China
Brand Name: ANS
Certification: TUV/CE/UL/RoHS/REACH
Model Number: ANSAG-T1-T2-32A
Payment & Shipping Terms
Minimum Order Quantity: 5pcs
Price: USD70-100
Packaging Details: Carton box. Carton size: 43*43*21cm
Delivery Time: 10-30days
Payment Terms: T/T, Western Union,Paypal, L/C, L/C
Supply Ability: 600pcs/day
Material: |
TPU Cable |
Cable Spec: |
3*6+2*0.5mm2 |
Cable Color: |
Black Or Customized |
Plug Color: |
Green |
IP Grade: |
IP66 |
OEM Branding: |
Yes |
OEM Color: |
Yes |
Cable Material: |
TPU |
Halogen-free: |
Yes |
Material: |
TPU Cable |
Cable Spec: |
3*6+2*0.5mm2 |
Cable Color: |
Black Or Customized |
Plug Color: |
Green |
IP Grade: |
IP66 |
OEM Branding: |
Yes |
OEM Color: |
Yes |
Cable Material: |
TPU |
Halogen-free: |
Yes |

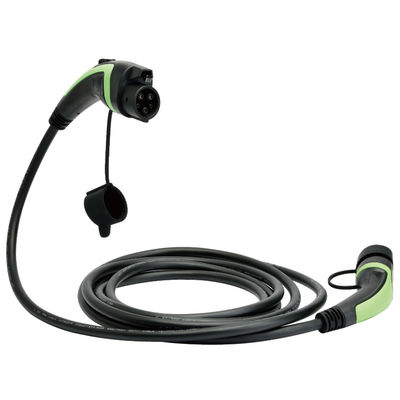

Straight TPU ev cable cord in 7kW Type 1 to Type 2 ev charging cable
The ANSAG-T1-T2-32A is suitable for all modern electric vehicles with Type 1 sockets. The cable has a charging capacity of up to 7kW, 32A 1phase. The cable would reach up to IP66 under working standard.
Characteristics
using riveting pressure process with no screw, have a beautiful appearance. Hand-held design conforms to the ergonomic principle, plug conveniently.
XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improved the bending life and wear resistance of the cable.
Excellent protection performance, protection grade achieved IP55(working condition).
Adopted combined color coating technology, personalized custom a variety of colors(orange, blue, green, grey, white)
Specification:
|
product application |
Electric vehicle |
|
rated current |
32A |
|
rated voltage |
250V |
|
Mechanical life |
no-load plug >10000 times |
|
Withstand voltage |
2500V |
|
Insulation resistance |
>1000MΩ (DC500V) |
|
Operating temperature |
-30 ºC ~ +50 ºC |
|
Cable Size |
3*6+2*0.5mm2 |
Drawings and appearance:
